Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Environmental Protection: |
Resistance to Environmental |
| Application: |
Communication |
Product Description
UK series Insulation Voltage: 600V. Proof voltage: 2500V IMIN. Resistibility: 100 M ohm
UK3N, UK5N, UK6N, UK10N, UK16N, UK35N, UK series Insulation Voltage: 600V. Proof voltage: 2500V IMIN. Resistibility: 100MΩ MIN.

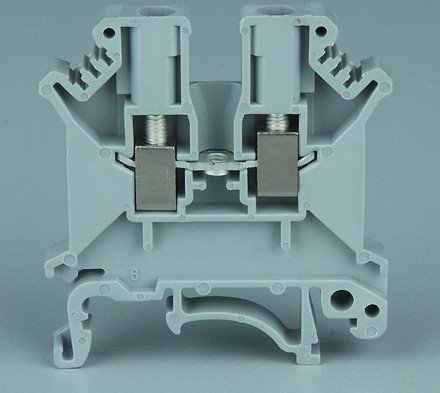

UK3N
Insulation Voltage 800V
Insulation Circuit 32A
Proof voltage 2500V, IMIN
Resistibility 100MΩ MIN
Use wire: 0.2-2.5mm2Max
Unite QTY: Chose by yourself
UK5N
Insulation Voltage 800V
Insulation Circuit 41A
Proof voltage 2500V, IMIN
Resistibility 100MΩ MIN
Use wire: 0.2-6mm2Max
Unite QTY: Chose by yourself
UK6N
Insulation Voltage 800V
Insulation Circuit 57A
Proof voltage 2500V, IMIN
Resistibility 100MΩ MIN
Use wire: 0.2-6mm2Max
Unite QTY: Chose by yourself
UK10N
Insulation Voltage 800V
Insulation Circuit 76A
Proof voltage 2500V, IMIN
Resistibility 100MΩ MIN
Use wire: 0.5-16mm2Max
Unite QTY: Chose by yourself
UK16N
Insulation Voltage 800V
Insulation Circuit 101A
Proof voltage 2500V, IMIN
Resistibility 100MΩ MIN
Use wire: 2.5-25mm2Max
Unite QTY: Chose by yourself
UK35N
Insulation Voltage 800V
Insulation Circuit 125A
Proof voltage 2500V, IMIN
Resistibility 100MΩ MIN
Use wire: 1.0-36mm2Max
| product name | din rail terminal |
| model | UK3N |
| material | PA66, Alloy copper |
| main features | Rated voltage UN :800V |
| Rated current IN:24A |
| Rated cross-section:4 mm 2 |
| Rated surge voltage 8000V/min |
| Material: PA66, Alloy copper,red copper |
| Stripping length:8mm |
| Strew-thread:M3 |
| Tightening torque:0.6-0.8Nm |
| Inflammability class acc.toUL94 V0 |
| dimension | 22cm*7cm*5cm |
UK terminal block data
Model |
Hard Wire (mm²) |
Soft Wire (mm²) |
Rated Current (A) |
Rated Voltage (V) |
UK2.5B |
0.2-4 |
0.2-2.5 |
32 |
660 |
UK3N |
0.2-4 |
0.2-2.5 |
32 |
800 |
UK5N |
0.2-6 |
0.2-4 |
41 |
800 |
UK6N |
0.2-10 |
0.2-2.5 |
57 |
800 |
UK10N |
0.5-16 |
0.5-10 |
76 |
800 |
UK16N |
2.5-25 |
4-16 |
101 |
800 |
UK35N |
0.75-50 |
0.75-35 |
150 |
1000 |
UK50N |
16-50 |
25-50 |
150 |
1000 |
UK95N |
25-95 |
35-95 |
232 |
1000 |
UK150N |
35-150 |
50-150 |
309 |
1000 |
Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.
Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.
Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.
We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
