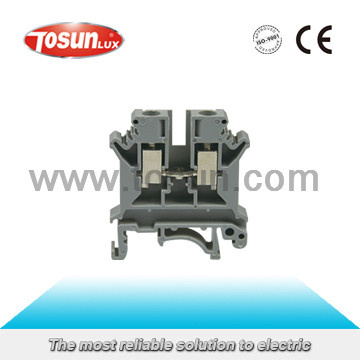

UK Terminal Block Terminal Connector

Name: UK Terminal Block Terminal Connector
Brand: china-manufacturer-directory.com
SKU: 765243505
Availability: InStock
Rating: 4.3 (110 reviews)

Price:	US $ 0.2-4/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Pictures:

Specification:

Model	Hard Wire(mm²)	Soft Wire(mm²)	Rated Current(A)	Rated Voltage(V)	Dimension(mm)
UK2.5B	0.2-4	0.2-2.5	32	690	6.2 x 42.5 x 42
UK3N	0.2-4	0.2-2.5	32	800	6.2 x 42.5 x 42
UK5N	0.2-6	0.2-4	41	800	6.2 x 42.5 x 47
UK6N	0.2-10	0.2-2.5	57	800	6.2 x 42.5 x 47
UK10N	0.5-16	0.5-10	76	800	10.2 x 42.5 x 47
UK16N	2.5-25	4-16	101	800	12.2 x 42.5 x 54
UK35N	0.75-50	0.75-35	150	1000	15.2 x 50.0 x 62
UKH50	16-50	25-50	150	1000	20 x 70.5 x 83.5
UKH95	25-95	35-95	232	1000	25 x 83 x 97.5
UKH150	35-150	50-150	309	1000	31 x 100 x 118.5

Model	Hard Wire(mm²)	Soft Wire(mm²)	Rated Current(A)	Dimension(mm)
USLKG2.5N	0.2-4	0.2-2.5	32	6.2 x 42.5 x42
USLKG3N	0.2-4	0.2-2.5	32	6.2 x 42.5 x47
USLKG5N	0.2-6	0.2-4	41	6.2 x 42.5 x 47
USLKG6N	0.2-10	0.2-6	57	8.2 x 42.5 x 47
USLKG10N	0.5-16	0.5-10	76	10.2 x 42.5 x 47
USLKG16N	2.5-25	4-16	101	12.2 x 42.5 x 54
USLKG35N	0.75-50	0.75-35	150	15.2 x 50.0 x 62
USLKG50N	16-50	25-50	150	20 x 70.5 x 81.5

Terminal Connector	JXB-2.5/35	JXB-4/35	JXB-6/35	JXB-10/35	JXB-16/35	JXB-35/35	JXB-50/35	JXB-70/35	JXB-95/35	JXB-150/35
Earth Connector	EK-2.5/35	EK-4/35	EK-6/35	EK-10/35	EK-16/35	EK-35/35	EK-70/35

Prod Model:	UK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	CE
Application:	Mobile Phone
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Pressure Welding
Brand:	Tosunlux
