UL (478737) Dlc IP65 80W Shoebox LED Light Fixture

Product Specifications

Prod Model:	NS-SB432-80W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	80W Shoebox LED Light Fixture
LED Chip:	Samsung
Driver:	Waterproof Mean Well
Heat Sink:	Integrate Aluminum
Beam Angle:	120
Size:	L22.9*W15.8*H7.1
Power Factor:	>0.95
Color Temperature:	3000k/4000k/5000k
Warranty:	5 Years
Lifesan:	50000 Hours
Light Source:	LED Light
Color Temperature(',CCT):	Cool White
Lamp Body Material:	Aluminum Alloy
Lamp Power:	80W
Power Supply:	AC
Average Life:	>8000h
Application:	Garden
IP Rating:	IP65
Certification:	EMC
Voltage:	100-277V

Product Description

UL(478737) DLC IP65 8000lm 80W Shoebox LED Light Fixture

Product advantages:
1, Latest LED technology
LED chip: Samsung 3535
LED Driver: Meanwell (UL standard driver)
PC cover & PC lens can be your choice; Impact resistance;

2,Excellent Thermal Management
MW power supply separate design with LEDs/PCB,better heat dissipatio;
Special design integrate dia cast aluminum, it's better for heat transfer from LEDs/PCB to heat sink;
Operating temperature: -40°C to 50°C

3.Unique driver design
The driver is separated with the SMD's heat dissipation areas , it could decreas the heat influence on the driver .the driver would be more stable

4. Thewaterproof connector make the AC connect the input wire
convenient ,and the DC connector is to make the driver's replancement and maintenance conveniet.


Item Code	Power(W)	Volltage(V)	Lumens(Lm)	G*W (Kg)	QTY/Carton	Size/Carton(inch)
NS-SB432-80W	80	AC100-277	7200-8000	6.5	1	L22.9″xW15.6″xH4.6″
NS-SB432-100W	100	AC100-277	9000-10000	7	1	L22.9″xW15.8″xH7.1″
NS-SB432-150W	150	AC100-277	13500-15000	7	1	L22.9″xW15.8″xH7.1″
NS-SB670-200W	200	AC100-277	18000-20000	12	1	L32.3″xW15.8″xH7.1″
NS-SB670-300W	300	AC100-277	27000-30000	12	1	L32.3″xW15.8″xH7.1″

Product Information
Part Number: NS-SB432-80W
Item Weight: N\W: 6KG, G\W: 7KG
Product Dimensions: 13.5*13.5*17 inch
Warm White(3000-3500K) Neutral White:(4000-4500K) Cool White(6000-6500K)
Material: Die-Cast housing
Wattage: 80watts
Item Package: Quantity 1
Luminous Flux: 8000lm
Certification: UL cUL DLC
Patent Design: United States and European Union

Unique Technical design

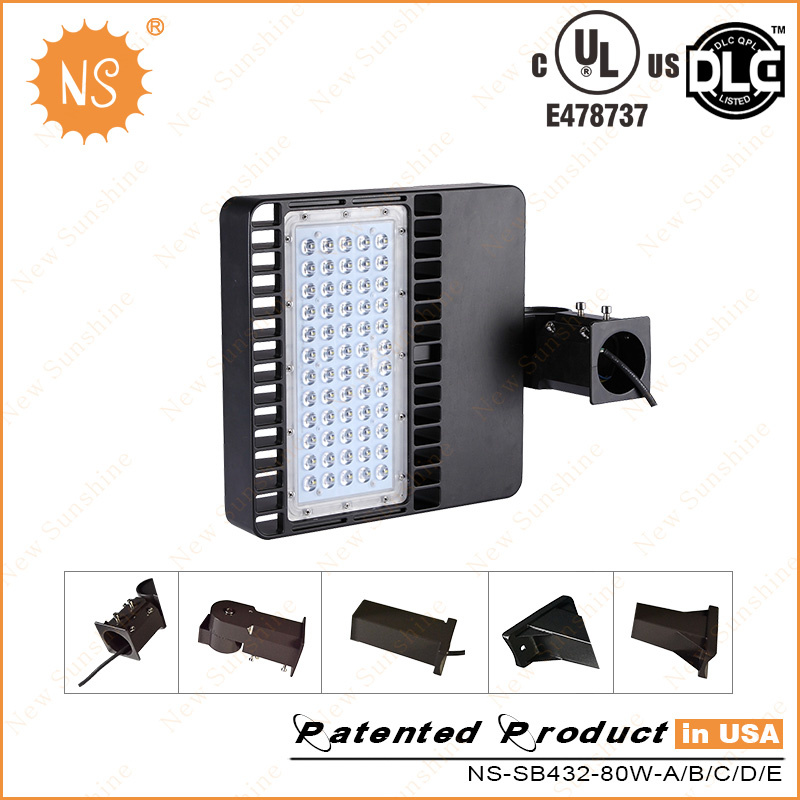

1,  Designed with a large cast aluminum body and a vertical vent pattern designed to improve thermal dissipation and provide a low side view profile.
2,  The standard mounting hardware is comprised of a knuckle joint to allow for -90° through +90° degree angle and rotation capability.
3,  An additional assortment of mounting kits allow for direct mounting to square poles and round poles.
4,  Samsung LEDs and is powered by Meanwell drivers.
5,  Luminaires are Dark Sky compliant,UL and DLC  listed and are rated as IP65 (dust tight and will withstand powerful water jets).
6,  Products be free of charge within 6 month of replacement service,5 years warranty for repair parts.


	80W	100W	150W	200W	300W
Item	NS-SB432-80W	NS-SB432-100W	NS-SB432-150W	NS-SB670-200W	NS-SB670-300W
Led source	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
IP grate	IP65	IP65	IP65	IP65	IP65
Valtage	AC100-277V	AC100-277V	AC100-277V	AC100-277V	AC100-277V
CCT(K)	2600~7000	2600~7000	2600~7000	2600~7000	2600~7000
Lumen(LM)	7108~8135	8500~11038	13115~16075	18025~21376	27560~29707
CRI	>70	>70	>70	>70	>70
Net Weight	5.6kg	5.7kg	5.8kg	10kg	10.5kg
Size(L*W*H)	13.5*13.5*2.68in	13.5*13.5*2.68in	13.5*22.9*2.68in	13.5*22.9*2.68in	13.5*22.9*2.68in
Equivalent	200W MHL/HPS	250W MHL/HPS	300W MHL/HPS	400W MHL/HPS	600W MHL/HPS
Certificate	UL,DLC	UL,DLC	UL,DLC	UL,DLC	UL,DLC
Lifespan	50,000hours	50,000hours	50,000hours	50,000hours	50,000hours
Warranty	5 years warranty	5 years warranty	5 years warranty	5 years warranty	5 years warranty
Operating Tep	(-68-122ºF)	(-68-122ºF)	(-68-122ºF)	(-68-122ºF)	(-68-122ºF)

Product Specifications:
1. Lamp Type: LED parking ligth,LED shoe box, 80W led garage lamp
2. Install: Mounted
3. Rating Power(W): 80W
4. Luminous Flux(lm): 8000LM
5. Input Voltage: 100~300VAC, 50/60Hz
6. LED chip: 60PCS, Sumsung
7. Color Temperature(K): 2700-6500K
8. Beam Angle: 120 degree
9. Operation temperature: -20C~50C
10. Storage temperature: Normal temperature
11. Storage humidity: Normal humidity
12. Life Time (Hrs): 50000H
13.Waterproof Rating: IP65

Advantage:
1, Die-Cast housing with UV resistant powder coating
2, UL/CUL DLC listed,suitable for wet location,IP65
3, High impact polycarbonate diffuser
4, Operating temperature: -20°C to 50°C
5, THD<15%,Power Factor >0.9
6, 5 years warranty
6. Instant start, No flickering, No humming
7. Easy to install and operate

Package details:
Shoebox LED Light Fixture Inner box size:22.9*15.8*7.1inch
Carton size :22.9*15.8*7.1inch,1PCS/CTN, G.W.: 7KG

Notice:
1. Make Sure To Cut Off The Power Before Install LED Wall Pack
2. Not suitable for dimmers or electronic switches or remote controls.
