Hyrite Lighting Co. >> UL Class 2 90W 12V Constant Voltage LED Power Supply

UL Class 2 90W 12V Constant Voltage LED Power Supply

Name: UL Class 2 90W 12V Constant Voltage LED Power Supply
Brand: China-Manufacturer-Directory.com
SKU: 731255665
Availability: InStock
Rating: 5 (130 reviews)

Supplier:	Hyrite Lighting Co.
Price:	US $ 25-26/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SPS-90-12-C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	120V
Input Current:	1.8A
Output Voltage:	12V
Power:	90W
Dimming:	No
Built-in Active Pfc:	No
Efficiency:	79 %
Installation:	Outdoor Rainproof
IP Rating:	IP 64
Weight(Kg):	0.8700
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	120V
Brand:	Neonpro

Product Description

UL Class 2 90W 12V Constant Voltage Waterproof LED Power Supply(SPS-90-12-C)

1. Feature of LED power supply
AC to DC Single Output Switching Power Supply
Self-contained slim design, wiring connection inside
UL recognized outdoor class 2
IP67

2. Technical Specification of LED power supply

Model no.	SPS-90-12-C
Input voltage	100-132 VAC 50/60 Hz
Max. power	90W max.
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	79 %
Output voltage	12VDC ± 5%
Output current	7.5A max (max.5A each output, max. 7.5A total output)
Overload protection	105%-120% hiccup mode, auto-recovery
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40'C
Installation	Outdoor rainproof
IP rating	IP 64
Cooling	Free air convection
Certificates/standards	UL
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2x2 (18cm)
Weight(kg)	0.8700

3. applications of LED power supply
LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting

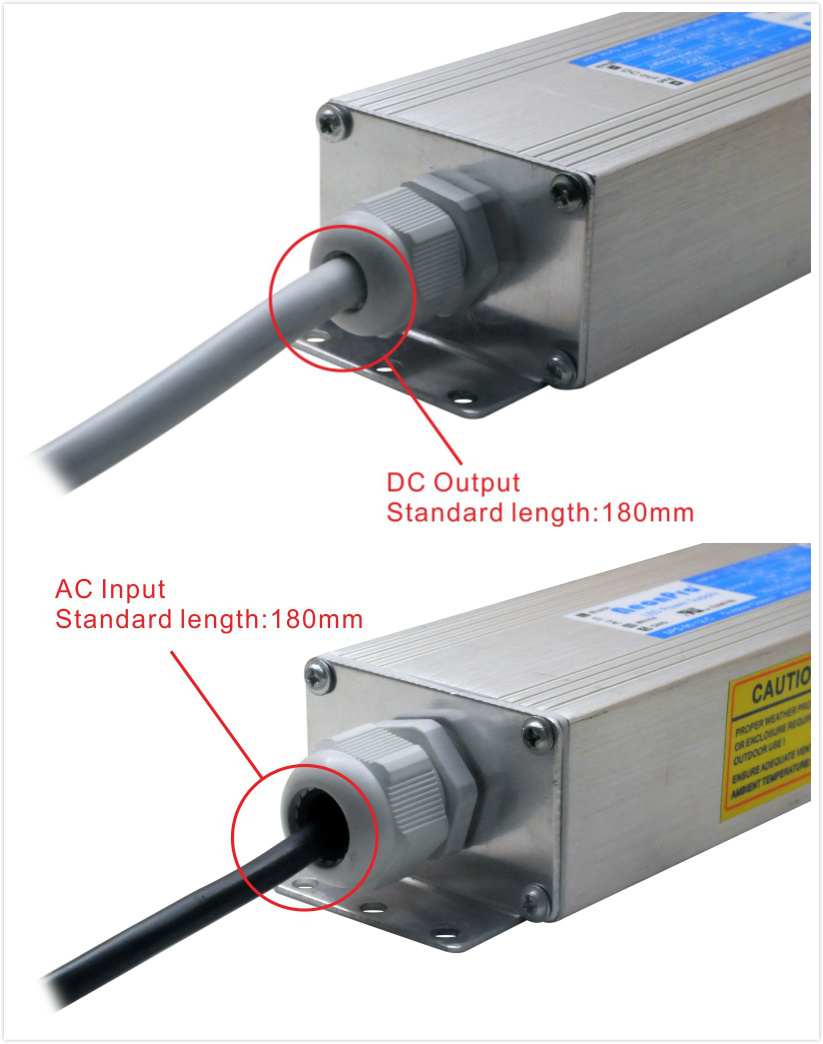

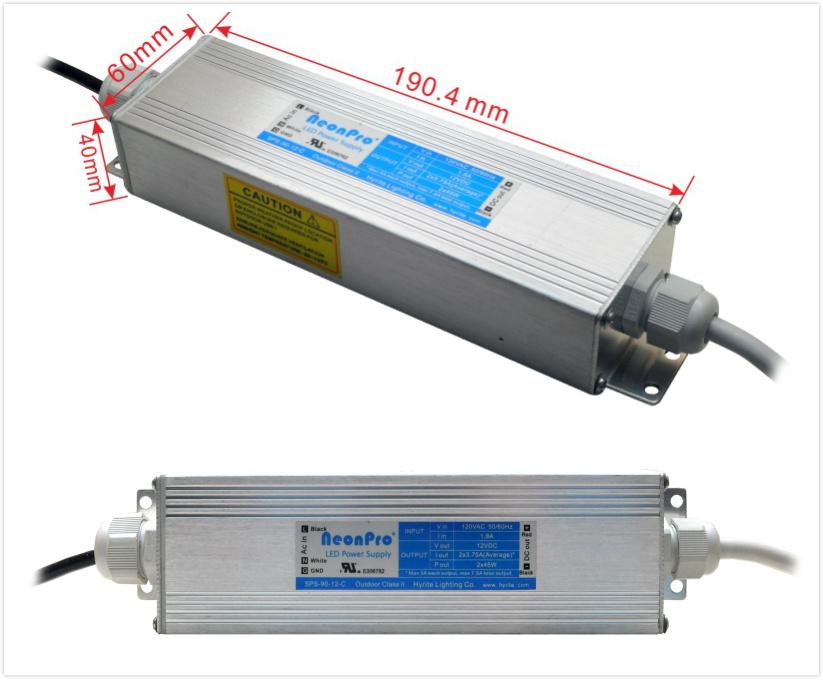

4. Detailed Pictures of LED power supply

5. Production line and workshop

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
