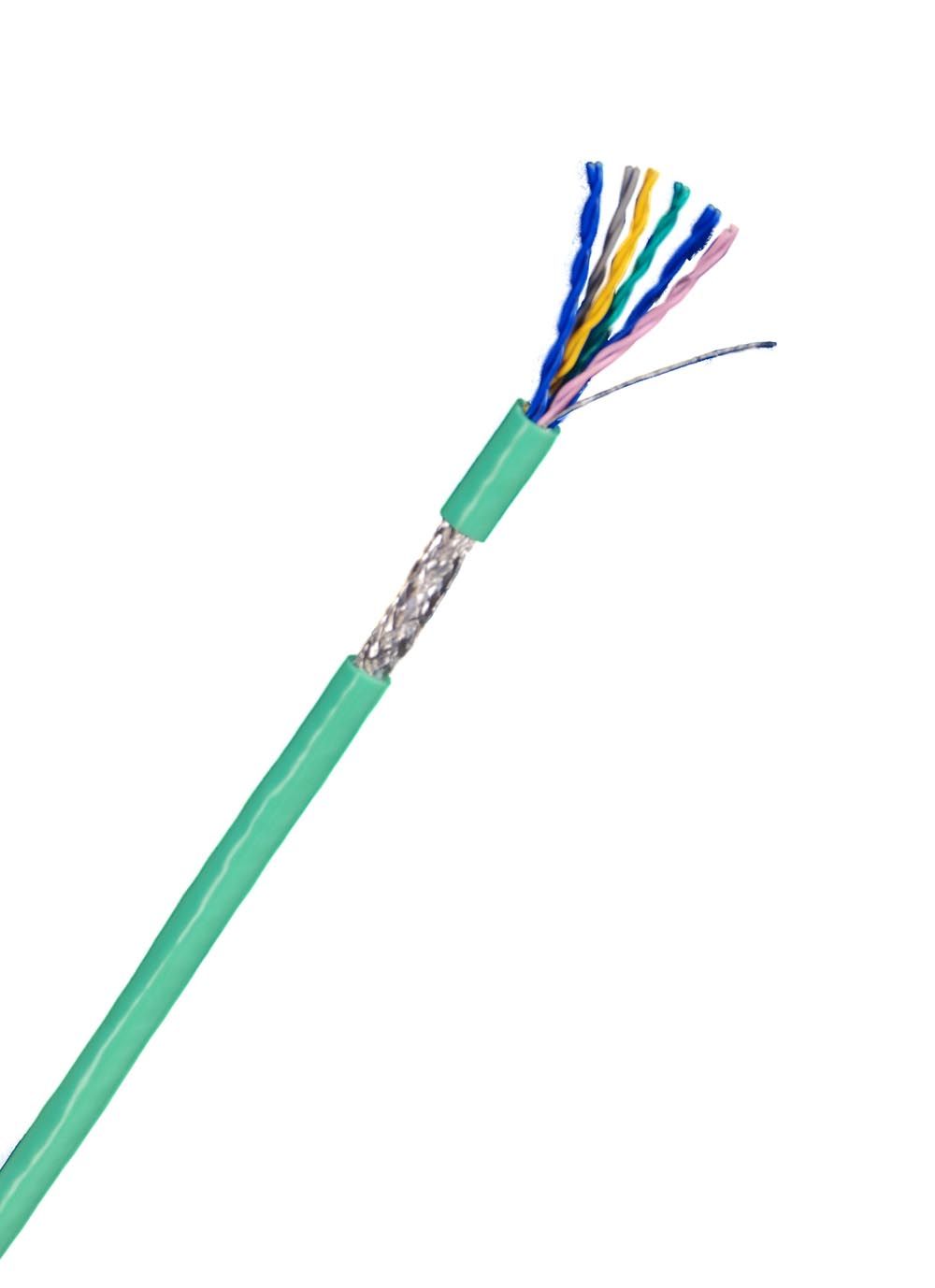

UL2464 Shield Twisted Pair Computer Cable
Product Specifications
| Prod Model: |
UL2464 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| UL2464: |
4*2*18AWG |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Conductor Type: |
Stranded |
| Insulation Material: |
PVC |
| Application: |
as Control Cable |
| Certification: |
RoHS |
Product Description
UL2464 Shield Twisted Pair Computer Cable
Applications:
As measuring monitoring and control cable, it is suitable for the places of machine tool manufacturing, complete equipment installation engineering, power station, refrigeratory equipment, OA equipment, data processing system and heating and air-condition system.
Properties:
Heat resistance, good insulation property, excellent chemical performance; Electromagnetic wave resistance.
Standard: UL758
Structure:
Conductor: Fine strands of copper/tinned copper wire, excellent corrosion resistance
Insulation: Special PVC
Color: Acc. To UL758
Earth wire: Bare copper
Shield: Bare or tinned copper shielded
Sheath: 80 degree heat-resistant, flame-resistant PVC, pass VW-1 flame testing
Technical data:
Rated voltage: 300V
Test voltage: 2000V
Temperature range:
Fixed installation: -40 degree to + 80degree
Flexing Installation: -10degree to +80 degree
The minimum bending radius:
Fixed Installation: 4Xouter diameter
Flexing Installation: 15Xouter diameter
SAMPLE IS AVAILABLE
|
Type |
Size |
Pairs |
Conductor |
Weight KG/KM |
O.D. Down (mm) |
O.D. Up (mm) |
|
UL2464 |
18AWG*2C |
2 |
41 |
0.16 |
115.3 |
10.2 |
11.1 |
|
UL2464 |
18AWG*2C |
3 |
41 |
0.16 |
146.4 |
10.8 |
11.7 |
|
UL2464 |
18AWG*2C |
4 |
41 |
0.16 |
182.5 |
11.9 |
12.8 |
|
UL2464 |
18AWG*2C |
5 |
41 |
0.16 |
220.5 |
13.1 |
14 |
|
UL2464 |
18AWG*2C |
6 |
41 |
0.16 |
260.1 |
14.3 |
15.2 |
|
UL2464 |
18AWG*2C |
7 |
41 |
0.16 |
284.9 |
14.3 |
15.2 |
|
UL2464 |
18AWG*2C |
8 |
41 |
0.16 |
325.4 |
15.3 |
16.9 |
|
UL2464 |
18AWG*2C |
9 |
41 |
0.16 |
372.6 |
16.9 |
18.5 |
|
UL2464 |
18AWG*2C |
10 |
41 |
0.16 |
415.3 |
18.2 |
19.8 |
|
UL2464 |
18AWG*2C |
11 |
41 |
0.16 |
449.7 |
18.8 |
20.4 |
|
UL2464 |
18AWG*2C |
12 |
41 |
0.16 |
474.5 |
18.8 |
20.4 |
|
UL2464 |
18AWG*2C |
13 |
41 |
0.16 |
516 |
19.9 |
21.5 |
|
UL2464 |
18AWG*2C |
14 |
41 |
0.16 |
540.9 |
19.9 |
21.5 |
|
UL2464 |
18AWG*2C |
15 |
41 |
0.16 |
584.9 |
21.1 |
22.7 |
|
UL2464 |
18AWG*2C |
16 |
41 |
0.16 |
609.8 |
21.1 |
22.7 |
|
UL2464 |
18AWG*2C |
17 |
41 |
0.16 |
655.6 |
22.3 |
23.9 |
|
UL2464 |
18AWG*2C |
18 |
41 |
0.16 |
680.5 |
22.3 |
23.9 |
|
UL2464 |
18AWG*2C |
19 |
41 |
0.16 |
705.3 |
22.3 |
23.9 |
|
UL2464 |
18AWG*2C |
20 |
41 |
0.16 |
741.3 |
22.9 |
24.5 |
|
UL2464 |
18AWG*2C |
21 |
41 |
0.16 |
777 |
23.5 |
25.1 |
|
UL2464 |
18AWG*2C |
22 |
41 |
0.16 |
832.5 |
25.2 |
27.3 |
|
UL2464 |
18AWG*2C |
23 |
41 |
0.16 |
881.4 |
26.4 |
28.5 |
|
UL2464 |
18AWG*2C |
24 |
41 |
0.16 |
906.3 |
26.4 |
28.5 |
|
UL2464 |
18AWG*2C |
25 |
41 |
0.16 |
943.9 |
27.1 |
29.2 |
|
UL2464 |
18AWG*2C |
26 |
41 |
0.16 |
968.8 |
27.1 |
29.2 |
|
UL2464 |
18AWG*2C |
27 |
41 |
0.16 |
993.7 |
27.1 |
29.2 |
|
UL2464 |
18AWG*2C |
28 |
41 |
0.16 |
1040.6 |
28.2 |
30.3 |
|
UL2464 |
18AWG*2C |
29 |
41 |
0.16 |
1065.5 |
28.2 |
30.3 |
|
UL2464 |
18AWG*2C |
30 |
41 |
0.16 |
1090.3 |
28.2 |
30.3 |
|
UL2464 |
18AWG*2C |
31 |
41 |
0.16 |
1140.3 |
29.3 |
31.4 |
|
UL2464 |
18AWG*2C |
32 |
41 |
0.16 |
1165.1 |
29.3 |
31.4 |
|
UL2464 |
18AWG*2C |
33 |
41 |
0.16 |
1190 |
29.3 |
31.4 |
|
UL2464 |
18AWG*2C |
34 |
41 |
0.16 |
1242.1 |
30.6 |
32.7 |
|
UL2464 |
18AWG*2C |
35 |
41 |
0.16 |
1267 |
30.6 |
32.7 |
|
UL2464 |
18AWG*2C |
36 |
41 |
0.16 |
1291.9 |
30.6 |
32.7 |
