Product Specifications
| Prod Model: |
FW-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

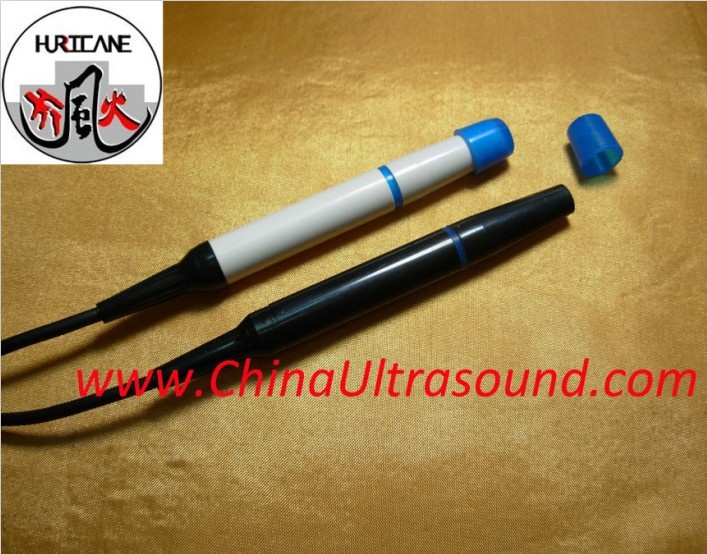

Ultrasonic Fat Measurement Sensor in Hospital, Ultrasonic Transducer for Medical, Fat Thickness Probe
1. Application:
The sensor is used for measuring thickness of fat of Pet or livestock, and measuring distance or measuring thickness in ophthalmology.
2. Technology Parameter:
Model
|
5M
|
7.5M
|
10M
|
13M
|
Working frequency
|
5MHz
|
7.5MHz
|
10MHz
|
13MHz
|
Relative bandwidth
|
>50%
|
>50%
|
>60%
|
>60%
|
relative sensitivity
|
>-24dB
|
>-30dB
|
>-36dB
|
>-42dB
|
Echo pulse width
|
<0.7μs
|
<0.55μs
|
<0.4μs
|
<0.35μs
|
Main use
|
For pets, livestock measuring fat
|
For pets, livestock measuring fat
|
For measuring distance in ophthalmology
|
For measuring thickness in ophthalmology
|
