Product Specifications
| Prod Model: |
LRF-2000H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Product Description

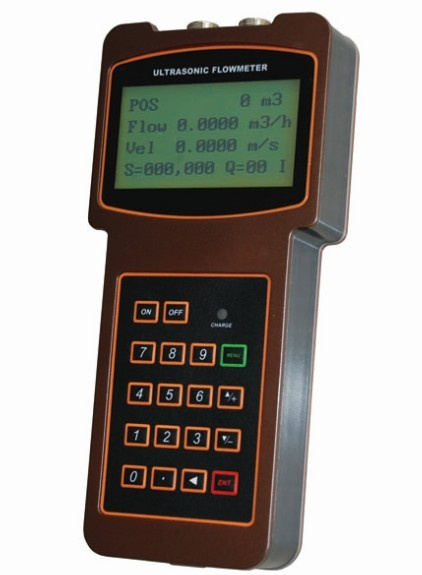

High Accuracy measuringAccuracy: ± 1%, linearity: 0.5%, repeatability: 0.2%Non-intrusive measuringNon-intrusive, clamp-on transducer, no pressure drop, no pipe disturbanceWide measuring rangeSeveral types transducer for selection, measuring pipe size from DN15mm to DN6000mmLight weightSize: 210× 90× 30mm, weight: Only 0.5kgLarge capacity batteryBuilt-in rechargeable Ni-MH battery, provide over 12 hours of continuous operationLarge LCD displayDisplay instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etcBuilt-in data loggerBuilt-in 24K data logger, store over 2000 lines measuring data.
Items Specification
Linearity 0.5%
Repeatability 0.2%
Accuracy Better than ± 1%, for velocity above 0.03m/s
Response Time 0-999 second, user-configurable
Flow Range ± 32m/s
Measuring Pipe Size 15mm _6000mm
Units English (U. S. ) or metric
Totalizer 7-digit totalizer for net, positive and negative flow respectively
Liquid Types Any single uniform liquid which can transmit ultrasonic
Security Setup values Modification Lockout. Access code needs unlocking
Display 4× 16 letters
Communication Interface RS-232 interface. 75-57600BPS, compatible with FUJI ultrasonic flowmeter and other UFM on enquiry.
Transducers Model TM-1 for standard, other 4 models for optional
Transducer Cable Standard 5mx2 or can be extended to 10m x 2
Power Supply 3 AAA built-in Ni-MH batteries (for over 12 hours of operation). 100V-240VAC adapter
Data Logger Built-in data logger can store over 2000 lines of data
Manual Totalizer 7 digit, calibrating by key
Housing Material ABS
Size 210× 90× 30mm
Handset Weight 500g (include battery)
Dalian Teren Industry Instruments Import and Export Co., Ltd. is setting up in the beautiful city Dalian with the sea surrounded. We pay more attention on the running of instruments, our products include the ultrasonic flow meters, ultrasonic level meters, ultrasonic water meters, ultrasonic thickness meters and many the same series products.
Our business are estabished on the basis of good quality, good price and honest. All the customers will have our best services and share the most reasonable prices. We have very good cooperation with many enterprises in domestic and abroad. We have the good relationship with our partners in Australia, USA, UK, India, Italy and many other countries. We also have many domestic suppliers, and we are sure to supply you the satisfacted produtcs and good serives.
If you are interested in any items, or your customers require to fill, please contact us, we will provide you the products with high quality and good services, and reply you as soon as possible.
