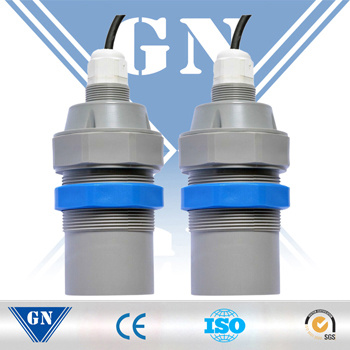

Ultrasonic Level Sensor/Level Meter
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Measuring Range: |
5-50m |
| Blind Area: |
≤300~1500mm |
| Output Signal: |
4~20mA, 0~5V, RS485 |
| Display: |
LCD Display+Backlight |
| Working Temperature: |
0 ~ + 50c(Wider Temperature Range Can Be Customi |
| Work Power: |
AC220V /50Hz(Default), DC24V/300mA(Optional) |
| Protection Level: |
Sensor IP65(IP66, IP67, IP68 Can Be Customized) |
| Application Environment: |
Constant Pressure, Notexplosion-Proof, Non Erosive |
| Mounting Model: |
Screw, or Sifter Clamping |
| Kind: |
Ultrasonic Wave |
| Structure: |
All in One |
| Principle: |
Ultrasonic Wave |
| Range: |
5-50m |
| Measurement Accuracy: |
0.25~0.5%F.S |
| Accuracy: |
0.25~0.5%F.S |
| Material: |
ABS |
| Process Temperature: |
-10-60c |
Product Description
Ultrasonic level sensor(ultrasonic transmitter, ultrasonic level sensor)Brief introduction:
An ultrasonic sensor for detecting the presence or absence of an aerated fluid includes a probe having a first solid portion and a second hollow portion. The probe has a closed end at the hollow portion. The solid portion and the hollow portion define an interface therebetween. A transducer element is mounted to the probe at about the solid portion. The transducer element is configured to transmit an ultrasonic signal through the solid portion into the hollow portion and to receive reflections of the ultrasonic signal to determine the presence or absence of a fluid and/or an aerated fluid.
Main features:
1.High precise and advanced technology
2.Non-invasive
3.Strong anti-interference
4.Automatic temperature compensation
5.Selectable output way

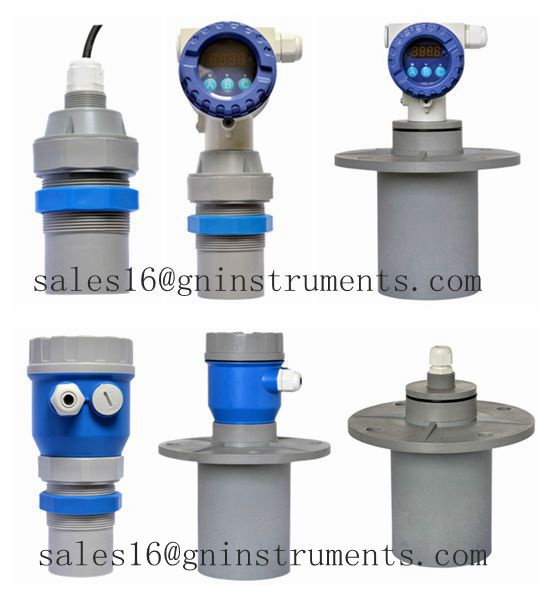

6.Substantially improved long-term stability Series of products :
Technical parameters:
Full scale | 5m, 8m, 10m(optional) |
Max measure error | 1%×full scale |
Power | DC 12-30V |
Power consumption | <1.5W |
Frequency | 20 KHz~43.0 KHz |
Output signal | 4~20mA (other output is optional) |
Max load impedance | 300Ω |
Display panel | LED ,LCD |
Material | ABS for shell, PP for transducer |
Fix model | Out straight screw M48×1.5 |
Admission cable | 1.5m |
Protection | IP65 |
Humidity | 0 to 95% |
Ambient temperature | -10°C~60°C |
Ambient pressure | Normal condition |
Application | Proximity Detection,Robot range finder ,Sedimentation pool,Coal washing process,Obstacle detection, collision avoidance ,General-purpose distance detection ,Wastewater treatment , etc. |

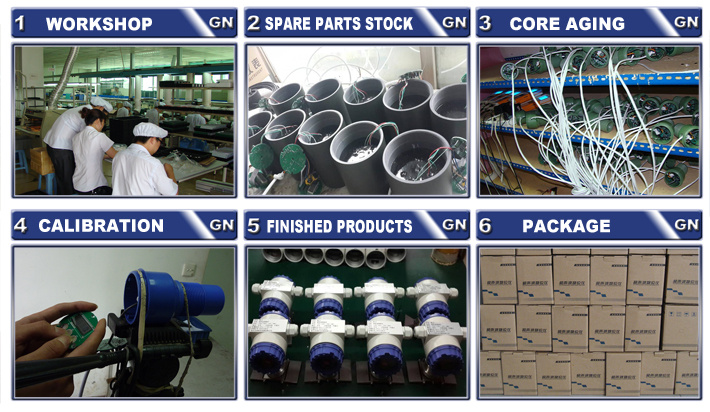

Production Line:
Certificates:
Payment term:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
After-sales service After :
1. Warranty: The warranty period is 12 months starting from the shipping date
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality
3. For on-site services not arising from manufacturing quality, we shall charge a certain ser After-sales service vice fee at our discretion based on actual charges incurred such as travel exp
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. Now company involves in polyurethane, fuel consumption, automotive, dispensing robots, semiconductors, odorizing equipment, batteries, electricity, telecommunications, petroleum, chemical, coal, metallurgy, water conservancy, food, medical, machinery and other industries. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
Now we have super mirco flow meter, oval gear flow meter, coriolis mass flow meter, electromagnetic flow meter, piston flow meter, and Spur gear flow meter, gear pump, gear metering pump. There is no other manufactures who can produce micro flow meter and many company import this kind of flow meter from Japan or America. After we put our micro flow meter into market, the news was spreaded widely and we got many reputation from our client. We now have sold this flow meter to more than 100 countries which contain wide and different applications. Meanwhile our oval gear flow meter has aquired many certificates and filled the vacancy of Chinese market. At the same time, in order to cooperate with the whole set of sales and services of the product, we can also produce supporting quantitative systems, various proportioning systems and industrial automation systems, allowing customers to have a wider range of choices.
