Price: | Negotiable/Piece |
---|---|
Trade Terms: | EXW |
Min Order: | 50/Piece |
Pay Type: | T/T,Western Union,Paypal,Money Gram |
Prod Model: | UM6500 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Display: | 4.5 Digits LCD with EL Backlight. |
Operating Principle: | Ultrosonic |
Measuring Range (Metric/Imperial): | 1.0-200mm, 0.05-8inch (in Steel). |
Resolution: | 0.1mm |
Power Supply: | 4X1.5 AAA Size (Um-4) Battery 1 |
Battery Indicator: | Low Battery Indicator |
Dimensions: | Main Unit 140mm×60mm×22mm |
Product Overviews

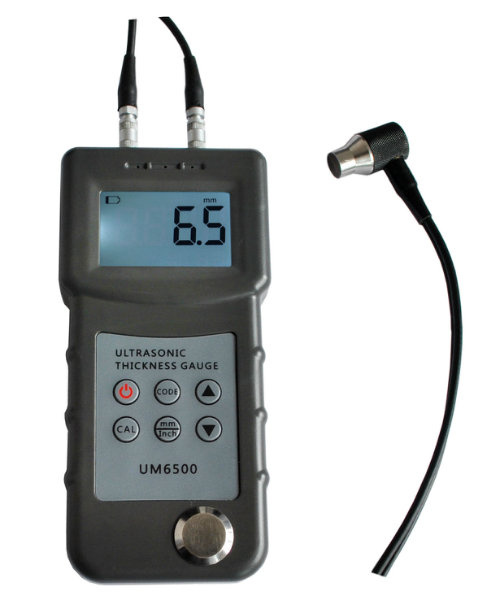

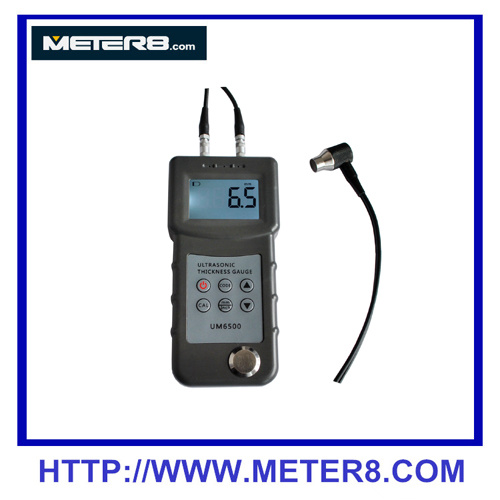

Ultrasonic Thickness Gauge UM6500
Application
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing.Materials measured: only 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron
High resolution measurement
Probe automatic zero calibration for system error correction
Capture the value of the minimum thickness.
Status indicator of the coupling and low battery.
Auto sleep and auto power off function to conserve battery life.
Humanized shape design,compact and portable,Can be used in harsh environment.
Specification
Display | 4.5 digits LCD with EL backlight. |
Operating principle | ULTROSONIC |
Measuring range (metric/imperial) | 1.0-200mm,0.05-8inch (in Steel). |
Resolution | 0.1mm |
Accuracy | ±(0.5%H+0.1)mm, depends on materials and conditions |
Units | Metric/Imperial unit selectable |
Power supply | 4x1.5 AAA size (UM-4) battery 1 |
Battery indicator | low battery indicator |
Operating conditions | 0-+45°C(32F-104F),≤90%RH |
Dimensions | Main Unit 140mm×60mm×22mm |
Gloss Weight | 1KG |
Standard Delivery | Main Unit,8mm Probe, Coupling Oil, User Manual ,Carrying Case |
