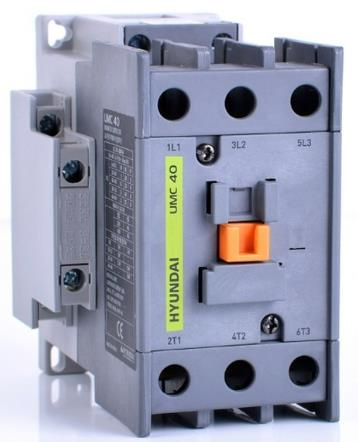

Umc AC Contactor Hyundai LC1-D LC1-K LC1-F Lrd Lr2 Relay

Product Specifications

Prod Model:	LC1-D LC1-K LC1-F AC Contactor

Product Description

UMC series AC contactor is suitable for frequency 50Hz/60Hz, rated voltage up to 660VAC and rated current up to 65A. it is used for making/breaking electric circuit at a long distance & for frequent starting/stopping & controlling AC motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products comply with IEC60947-4-1 standard.

Technical Data


Type				UMC-9	UMC-12	UMC-18
IEC-60947	AC 1 duty			20A	20A	25A
	AC3 duty		200-240V	2.5KW11A	3.5KW13A	4.5KW18A
			380-440V	4KW9A	5.5KW12A	7.5KW18A
			500-550V	4KW7A	7.5KW12A	7.5KW13A
			690V	4KW5A	7.5KW9A	9.5KW9A
UL	Continuous current (Ith)			20A	25A	30A
	AC motor	Single phase	115V	0.5HP	0.5HP	1HP
			230V	1HP	2HP	3HP
		Three phase	200V	2HP	3HP	5HP
			230V	3HP	3HP	5HP
			460V	2HP	7.5HP	10HP
			575V	5HP	10HP	15HP
Life time (unit:10,000 time)			Electrical	250	250	250
			Mechanical	2500	2500	2500
Aux.contact			1NO1NC	1NO1NC	1NO1NC	1NO1NC
Type				UMC-40	UMC-50	UMC-65
IEC-60947	AC 1 duty			60A	80A	100A
	AC3 duty		200-240V	11KW40A	15KW55A	18.5KW65A
			380-440V	18.5KW40A	22KW50A	30KW65A
			500-550V	22KW32A	30KW43A	37KW60A
			690V	22KW25A	30KW33A	37KW33A
UL	Continuous current (Ith)			50A	70A	80A
	AC motor	Single phase	115V	3HP	3HP	5HP
			230V	5HP	7.5HP	10HP
		Three phase	200V	10HP	10HP	15HP
			230V	10HP	15HP	20HP
			460V	25HP	30HP	40HP
			575V	25HP	30HP	40HP
Life time (unit:10,000 time)			Electrical	200	200	200
			Mechanical	1500	1000	1000
Aux.contact			standard	2NO2NC	2NO2NC	2NO2NC


LC1-D LC1-K LC1-F AC Contactor
Model NO.:
LC1-K AC contactor
Theory:
Electromagnetic Relay
Size:
Miniature
Type:
AC Contactors
Electricity Type:
AC
Number of Pole:
1 2 3 4
Phase:
1 2 3 4
The Contact:
85% Sliver
The Coil:
Pure Cooper
Export Markets:
Global
Additional Info.


Packing:
Standard Export Packing
Standard:
Ce
Origin:
China
Production Capacity:
10000/Day
Product Description

1. Rated voltage: 220~660V
2. Rated current: 6~12A
3. Power capacity: 1.5~5W
4. Auxiliary of contact: 3P+NC/3P+NO
Standard: IEC60947

Applications:

CLC1-K series AC Contactor is suitable for using in the circuit up to rated and frequent starting, controling the AC motor. The addtion of auxiliary contact group to the contactor, combined with the proper thermal relay, can act to protect the circuit bound to overload.

Applications:
CLC1-K series AC Contactor is suitable for using in the circuit up to rated and frequent starting, controling the AC motor. The addtion of auxiliary contact group to the contactor, combined with the proper thermal relay, can act to protect the circuit bound to overload.

Specifications:
Type Rated working
Current A(380V)
AC-3 use group Contact
Data(1)

Control power KW
220V 380/415V 440/500V 660V
CLC1-K06 6 1.5 2.2 3 3 3P+NC 3P+NO
CLC1-K09 9 9 4 4 4 3P+NC 3P+NO
CLC1-K12 12 12 5 5 5 3P+NC 3P+NO
Specification type KLC1-K06 KLC1-K06 KLC1-K06
Use group under AC-3 6 9 12
Rated working current(Ie)A 5 7.5 10
Conventional thermal current(Ith)A 16 20 20
Rated working voltage (Ue)V 380 660
Rated insulltion voltage(Ui)V 690
AC-3
(6Ie Ie)
Electrical life(time) 0.5× 10 6
Operation frequency h-1 1200
AC-3
(6Ie Ie)
Electrical life(time) 10× 10 4
Operation frequency h-1 300
Mecnical life 3× 10 6
Auxiliary
Contact
Conventional thermal current 6A
Electrical life
(times)
AC-15(360VA) 0.5× 10 6
DC-13(13W)
Coil
Specification
Rated control voltage(Us) AC: 12, 24, 45, 110, 220, 380
DC: 12, 24, 45, 110, 220

Pick-up voltage AC: 0.85~1.1Us DC: 0.85~1.1Us
Releasing voltage AC: 0.1~0.75Us DC: 0.2~0.75Us
Coil power VA Pick-up 40
Releasing 4
Consumption 1.2W
Pick-up time 6~18ms
Releasing time 5~23ms
Power factor Making 0.8 Breaking0.3
