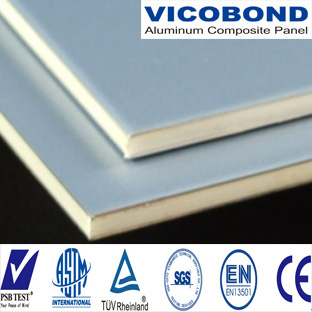

Aluminum Composite Panel
Product Details:
Surface Finishing: PVDF Coating
Warranty: 15-20 years
Certification: SGS, CE, ASTM standard approved
Usage: Exterior building curtain wall
Export Markets: Global
Standard: GB/T 17748-1999
Packing: Strong wooden pallet
Standard Size: 4*1220mm*2440mm
Delivery time: 15 days after getting down payment
Raw material:
A. Aluminum coil: High strength 1100, 3003, 5005 aluminum sheet
B. Macromolecule film manufacturer: Dupont from USA
C. Paint Manufacturer: PPG, Becker, AkzoNobel (Kynar500)
PVDF paint aluminum composite panel
Total thickness: 3mm, 4mm, 5mm, 6mm
Alu. Thickness: 0.21mm, 0.3mm, 0.35mm, 0.40mm, 0.45mm, 0.5mm
Width: 1220mm-1575mm
Length: Any size
Other specifications available, according to customers' requirements
1) Various colors available, according to customers' requirements
2) High impact resistance and good plasticity
3) Efficiently lightened burden for walls
4) Strengthened impact resistance for constructions
5) Great weather adaptabilities, high intensity, and easy maintenance
6) Perfect sound insulation, thermal resistance and fire retardant capability
7) Easy installation, apparently shortened installation time
8) Quality warranty:
Application scope:
1) Gas piping, cables, building materials, etc (this product fills a gap
In the domestic construction materials field, with performance
Indexes superior to panels manufactured overseas)
2) Curtain wall decoration for buildings where security is important,
Such as airports, hospitals and research centers
3) Curtain wallboards for outside walls of normal buildings
4) Renovations of old buildings and movable houses
5) Reformation and decoration for indoor walls, ceilings, bathrooms,
Kitchens and balconies
6) Facades
7) Billboards, exhibition desks and notice boards
8) Wallboards and ceilings for tunnels
9) Materials for industrial application, car and ship bodies
VICOBOND PVDF coating Aluminium Composite Panel Date Sheet |
Panel Thickness |
Standard |
Unit |
4mm |
Thickness of Aluminium |
DIN 1784 |
mm |
0.50 |
Aluminum thickness deviation |
DIN 1784 |
mm |
±0.01 |
Weight |
|
Kg/m 2 |
5.5 |
Tolerance in length |
DIN 16927 / ISO 11833-1 |
mm |
- 0 / +2 |
Tolerance in width |
DIN 16927 / ISO 11833-1 |
mm |
- 0 / +1.5 |
Tolerance in thickness |
DIN 16927 / ISO 11833-1 |
mm |
± 0.10 |
Horizontal flatness |
DIN ISO 1101 |
mm |
5 |
Longitudinal roughness |
DIN ISO 1101 |
mm |
6 |
Technical Properties |
|
|
|
Section Modulus W |
DIN 53293 |
cm 3 /m |
1.75 |
Rigidity (Poisson's
ratio μ= 0.3) E.I |
DIN 53293 |
kNm 2 /m |
0.28 |
Alloy |
EN 573-3 |
ENAW |
1100 |
Temper of Cover Sheets |
EN 515 |
|
H16/H18 |
Modulus of Elasticity |
EN 1999 1-1 |
N/mm 2 |
70,000 |
Tensile Strength of Aluminium |
EN 485-2 |
N/mm 2 |
Rm≥145 |
0.2% Proof Stress |
EN 485-2 |
N/mm 2 |
Rp0.2≥ 90 |
Elongation |
EN 485-2 |
% |
A50≥3 |
Linear Thermal Expansion |
EN 1999 1-1 |
mm/m/ o C |
0.002at 100 o C Temp difference |
Core |
|
|
|
|
|
Polyethylene, Typ LD-PE |
|
g/cm 3 |
0.98 |
Surface |
|
|
Coil Coating |
Lacquering |
|
|
Fluorocarbon based (PVDF) |
Thickness of coating |
|
µm |
≥25 |
Gloss (initial value) |
ECCA T2 |
% |
30-80 |
Pencil Hardness |
ECCA T4 |
|
H |
Acoustical Properties |
|
|
|
|
|
Sound Absorption Factor |
ISO 354 |
|
0.05 |
Sound Transmission Loss RW |
ISO 717-1 |
DB |
26 |
Loss Factor d |
EN ISO 6721 |
|
0.0087 |
Thermal Properties |
|
|
|
|
|
Thermal Resistance R |
DIN 52612 |
m 2 K/W |
0.0103 |
Heat Transition Coefficient U |
DIN 4108 |
W/m 2 K |
5.54 |
Temperature Range |
|
O C |
-50^+80 |
Jiangyin Jiding Aluminum-Plastic Composites Co., Limited is the leading ISO9001: 2000 quality system management certified manufacturer of Aluminium Composite Panel in China. It's located in the active economic area of the Yangtze River Delta, which is about 150KM far way from Shanghai.
The company total invest over US$ 5 million and import advanced multi-functional fully automatic controlled equipment and technology from Taiwan ALUBOND to produce high quality aluminium composite panel, with output more than 3 million square meters per year. Especially in Southeast Asia, Middle East, South America, North Africa, Eastern Europe and more countries and we succeed to tens of thousands big and small project orders. Because of our good quality, our products are well received and win warm praise from our customers.
For 8 gears, because our factory pays great attention to the quality, firmly catches the selling and strengthens the service ofter selling, we did well in service for before sale and after sale, business trustworthiness good, guests satisfied high sold well all over more than twenty provinces, From now on We will go on working hard again and again remember "trustworthiness first service best" as our purpose, enlarge the producing scale offer excellent new board materials and better over-all and more excellent service for new and old guests.
Let's co-operate hand in hand do well together.
