Jiangyin Senphus Electrical Material Co., Ltd. >> Under Tile Heating

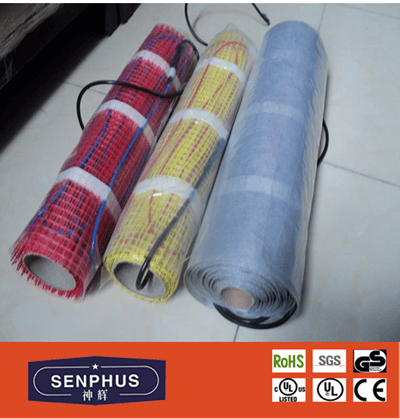

Under Tile Heating

Name: Under Tile Heating
Brand: China-Manufacturer-Directory.com
SKU: 768341025
Availability: InStock
Rating: 4.7 (101 reviews)

Supplier:	Jiangyin Senphus Electrical Material Co., Ltd.
Price:	US $ 9/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	SHDN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Red, Yellow, Blue, Green
Size:	DIY
Application:	Heating, Underground
Conductor Material:	Copper Nickel
Sheath Material:	PVC
Insulation Material:	FEP PVC
Material Shape:	Round Wire
Range Of Application:	Lsoh
Certification:	CE, ISO9001, UL
Brand:	Senphus
Type:	Insulated

Product Description

Packaging & Delivery

Packaging Details:	inner:one roll into a box outer:a hard carton
Delivery Detail:	According to the quantity(common situation:10 days after paid)

General Introduction
The electric floor heating mat includes a heating cable woven into an adhesive-backed fiberglass mesh that allows for simple roll-out installation without worrying about heating cable spacing Specifications

Cable Construction:	Twin conductor for electric floor heating mat
Rated Voltage:	230V
Output:	100W/m2 &150W/m2 &200W/m2
Cable spacing:	112mm(100W/m2) & 80mm(150W/m2) & 80mm(200W/m2)
Cable Diameter:	3.6mm
Conductor Insulation:	fluoropolymer
Outer Insulation:	PVC
Max. Ambient Temp.:	85°F(30°C)
Min. Installation Temp.:	40°F(5°C)
Cold lead	2-wire plus ground braid; 2.5m length

Why choose floor heating mat of SENPHUS?

Advantage of our product	Pre-spaced and fixed heating cable
	Suitable for tile and stone floors, carpet, wooden floors
	Simple and trouble free to install
	Benefiting you and the environment
	guaranteed(15-year limited warranty)
	very thin(3.6mm)
	a large range of sizes(100,150,200(w/m)
	a fibreglass mesh not a pre-glued mesh whose the glue will not stick easily
	Dual conductor, only one coldtail,only one end to connect thermostat
	100% earth shielded(wrap the entire cable with a layer of aluminium foil)
	Emits zero EMF
	Mat can be cut and turned

Introduction of SENPHUS New material co. ltd.	experience:20 years
	produce both underfloor heating cables and self-regulating heating cables
	develop special heating cable for customer's application and OEM offered
	large buyers:GE and Grainger
	have several self-owned intellectual property rights
	have passed ISO9001,UL,CE,ATEX,IECEx.GOST&ROHS certification

Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.

Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.

Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.

Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!

OEM is welcome! !
