Product Specifications
| Prod Model: |
AT3300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Monitoring System |
| Feature: |
High Definition |
| Software Usage: |
Vehicle Monitoring Software |
| Software Function: |
Monitoring+Control |
| Model: |
Fixed-Point |
| Video Transmission System: |
Wireless Transmission |
| Video Capture System: |
Video Camera |
| Sensor: |
CCD |
Product Description
nder Vehicle Screening System/car explosive detection
Access security control for vehicles at important location: Airports, government buildings, prisons, bank depot, military zones, seaports, police office, customs, border control, car park entrance checkpoint to important building's Toll station checkpoints, Checkpoints for entering and exiting vehicles attending conferences.
VSCAN AT3300 Under Vehicle Inspection System is the fixed solution for the fully identification of
threats or modifications to a vehicle's undercarriage. It can quickly and accurately identify threats ,

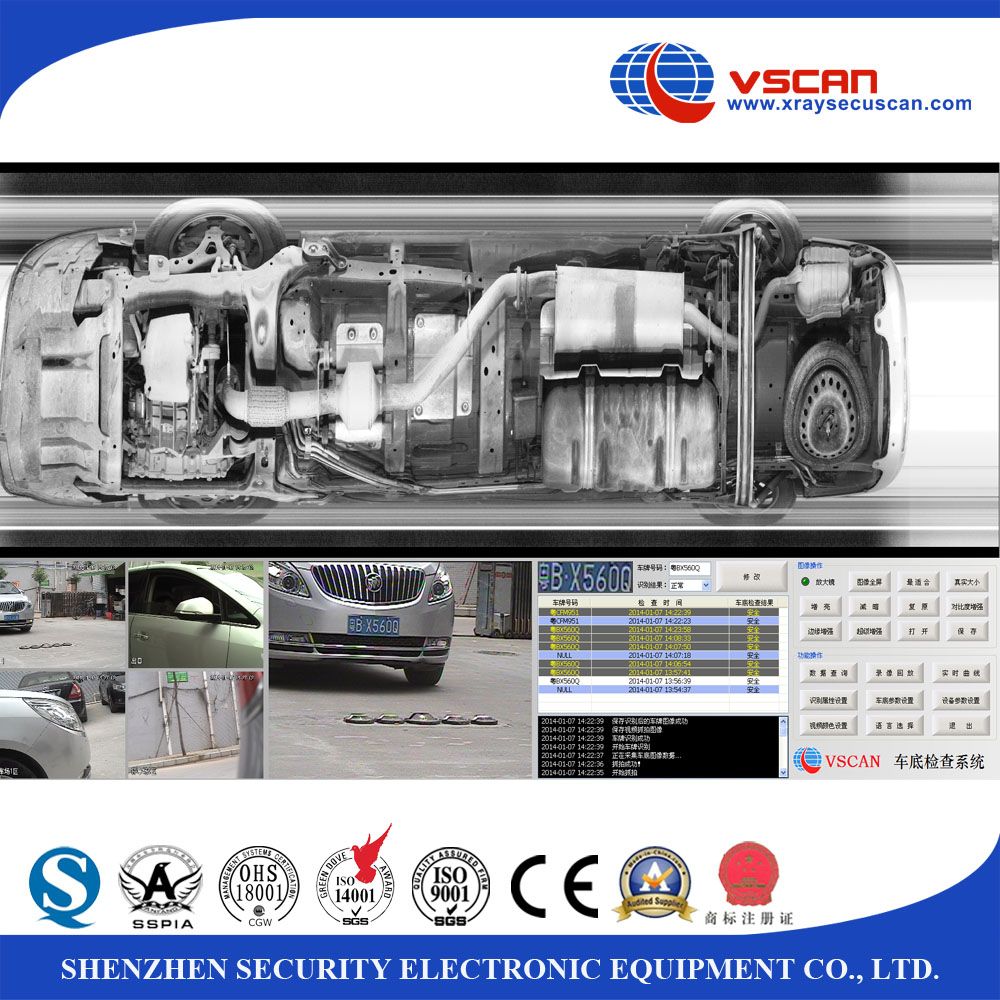

contraband objects and stowaway who are hidden at the bottom. Vehicles drive over the embedded scanning units while VSCAN's systems compile high-resolution images of a vehicle's undercarriage
to create the vehicle's fingerprint." It's easy to see any threatening objects that may be hidden on top of an axel or crossbeam.
An overview/driver camera captures the normal view of car/driver and displays this on the high-resolution monitor .
Technical Specification :
Embedded Frame :
1) Material : stainless steel
2) Dimension: 1200mm x 350mm
3) Water-proof grade: IP68
4) Load bearing Weight: 50T
Scanner :
1). CCD line scan camera:
2) Resolution: 5000* 2048 pixels,
3) Camera view: > 170° & Pixels size: 14μm*14μm
4) Line rate(max)19kHz & linear array: 28mm
5) ADC Resolution: 12 bit & Responsivity : 41V/uJ/cm2
6) Image : Black/white (color optional)
Computer :
Operation table (combine with monitor and computer)
1. Brand: Grantech (SYM76941 VGGA)
2. CPU: Intel (R) Core Processor, 2.6GHz/2.59GHz
3. Memory: 2G (optional 4G)
4. Graphics :512M
5. Hard Disk: SATA2 Hard Disk 500G
6. Dual LAN (at least one Intel Gigabit)
7. USB2.0 (Up to 2 pieces)
8. Monitor: 22'' LCD, resolution up to 1920*1080
9. Scene Video Record: 4 channels, Compression algorithm of scene video: H264
10. Operational system: Windows XP or Windows 7 (32 bit) (optional)
Optional :
* ALPR-Automatic License Plate Recognition software : via IP Camera captures license plate, ALPR software processing and automatically presents license plate on screen
* Driver Face Capture Camera : Provides picture of driver and/or view of vehicle. Image is presented on screen along with under vehicle images.
* Screen Video display/DVR: displays live video feed from overview camera on operator terminal screen. AT3300 UVIS
Shenzhen Security Electronic Equipment Co., Ltd (SEE), is a high-tech company integrating R&D, manufacturing, engineering, training and services.
SEE gradually establishes a very comprehensive product range covering X-ray machines with different tunnel size X-ray machines, Walk through Metal Detector, Hand-held Metal Detector, Liquid Scanner, Explosive auto detection system, under vehicle system and etc. SEE security systems have been used in different countries and regions in airports, seaports, customs, railway stations, long-distance bus stations, jail houses, courts yard, and many other security-related applications.
With ISO9001 management system, SEE always keeps running with high efficiency by balancing development on her product R&D, manufacturing, quality control and service according to ISO strict international standard requirements.
With global marketing strategy, SEE provides innovative and dependable security solutions to our global customers and makes every effort to continually exceed our customers' Expectations. SEE registered its own trade mark SECUSCAN, which are well known in national market.
SEE is great help for public security solution.
