Nanchang United General Machinery Manufacturing Co. Ltd. >> Undergrouand Diesel LHD (wjd-1.5)

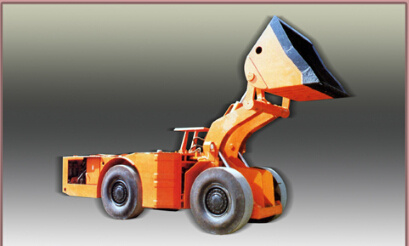

Undergrouand Diesel LHD (wjd-1.5)

Name: Undergrouand Diesel LHD (wjd-1.5)
Brand: china-manufacturer-directory.com
SKU: 695161142
Availability: InStock
Rating: 4.4 (34 reviews)

Supplier:	Nanchang United General Machinery Manufacturing Co. Ltd.
Price:	US $ 100000-120000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR

Product Specifications

Prod Model:	WJD-1.5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Wheel Excavator
Size:	Medium-Sized
Condition:	New
Drive Type:	Diesel
Bucket Capacity:	1.5m³
Certification:	Jb/T5500-91

Product Description

DIESEL LHD this machine is also widely applied in underground mining operations of black, nonferrous, chemical engineering, building materials and gold mines.

Diesel LHD is mainly used in underground mine, particularly for transporting excavated rock. It can also be used for the construction of railways, highways, water conservancy and other tunnel projects. It is particularly suitable for poor working conditions, narrow operating site, low and muddy operating surface. This machine employs DEUTZ engine which is advanced in today's world. Its transmission system takes hydraulic torque converter and power-shift transmission provided by DANA. Braking system employs full-hydraulic two-line mechanism, and deployed with fully enclosed multiple wet discs brake for safe and reliable operation in poor environments. It is designed with full hydraulic steering and manual control. The well-designed main frame structure and six-bar mechanism ensures ruggedness and high efficiency.

Bucket capacity	2m³	(2m³)	3m³	(3m³)
Rated load capacity	4t	(4t)	6t	(6t)
Rated power	75kw	(117HP)	90kw	(185HP)
Minimum ground clearance	300mm	(300mm)	360mm	(360mm)
Climbing ability	14T	(13.5T)	15.5T	(15T)
Shaveling depth	12°	(14°)	12°	(12°)
Effective length of cable	100m	100m	120m	(120m)

Torque Convertor: Clark corp.U.S.A.	C270 Series
Transmission: Clark corp, U.S.A.	R32000
Diesel: Deutz.German(or assemble in bulk)	BF4M1013C	F8L413FW
Electeic Motor.Y Series
Type: Smooth type for underground mine	14.00-24-16	16.00-25-28

China UGM is a professional manufacturer of electric LHD. The main leaders and key personnel of the company are from Nanchang General Machinery Plant where the first domestic LHD was designed and manufactured, and its major engineering technical personnel have participated in or LED the design and manufacture of the first domestic LHD(WJD-0.76) in 1982, it can be said that our new electric-powered LHD not only adopts advanced manufacturing technology in the world today, but also integrates the 27 years of domestic successful experience in designing and manufacturing similar LHD and removes dozens of weaknesses existing in the similar LHD for many years.

The LHD is widely applied in underground mining operations of black, nonferrous, chemical engineering, building materials and gold mines.

The objective of our company is: Based on mining engineering machinery and the mining industry, to develop series of products, provide wholehearted service for users and strive to be one of the powerful industry players of underground mining machinery in China. Our company adheres to the policy of "technology first, quality first, service first, safety first, sincerity first", and is longing to develop sincere friendship and cooperation with vast clients both at home and abroad in the common economic activities.
