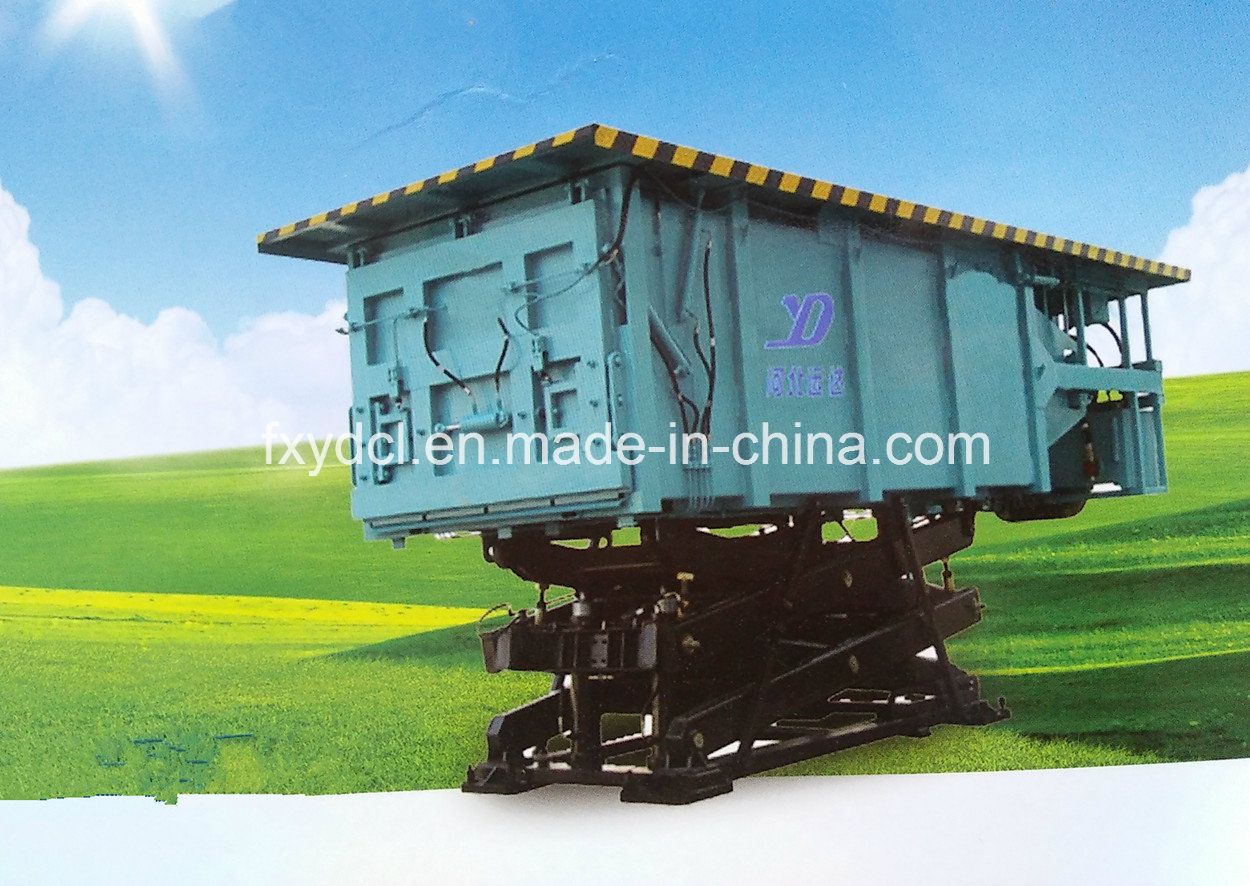

Underground Elevating Garbage Compression Station
Product Specifications
| Prod Model: |
CXY-5 |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
Product Description
Product Description:
This series of products which adopts underground compression station technology are developed according to garbage treatment situation in domestic market. It mainly consists of compressed storage container, lifting support, compressing mechanism, medicine spraying and stink smell removing system, electrical and hydraulic controlling system etc. It has advantages such as modular designed, small area requirement, good compactability, small cost for foundation, and good environment protection. The station are widely used in the city streets, living community, school, hospital, station, service area, industrial zone, commercial market, garden.
Technical characteristics:
1. Underground design, new structure design, good exterior, size compact.
2. The required area is small so that is easy for outdoor position choosing.
3. Adopt PLC programming control, combined container side, bottom dewatering and exhausting technology. It can reduce garbage moisture content, increase garbage density.
4. Adopt special "lifting and sidesway "technology to ensure good connection for garbage station and transportation vehicle and avoid the garbage dropped into foundation pit.
5. The facility treat the garbage underground and adopt atomizing, stink removing, dust falling and special dewatering technology to guarantee good environmental applicability.
Model | LSY-5 | Max. compressing
force | 420KN |
| Equipment Type | Buried underground | Garbage compaction
ratio | 2:1~3:1(Adjustable) |
Garbage compressed
type | Horizontal compression | Reference quality for
Garbage block |
|
Outer dimension
(L × W × H) | 6610mm×2320mm
×2520mm | Power/Voltage | 380V/50Hz |
| Box Garbage size(L × W × H) | 3850mm×1730mm
×1200mm | Control Mode | PLC automatic control
+ manual control;
Control cabinet
+ Mobile control box double
operating system |
| Box capacity | 8m3 | Motor power | 7.5kw |
Max. Working pressure
of hydraulic system | 21MPa | Auxiliary Function | Spray, Dedusting, Deodorization,
Sewage directional collection and
discharging |
Company profile
Feixiang Yuanda Vehicle Manufacturing Co., Ltd. Was founded in 2001, is one of the leading suppliers of the professional sanitation equipment of China, Committed to R & D, manufacturing, sales and service of cleaning vehicle, refuse collection vehicle and equipment used for the field of urban and rural sanitation, municipal, roads and other special areas cleaning, providing the integration solutions of environmental health. Our leading products are environmentally friendly sweeper, high-pressure washing truck, washing sweeping truck, road sweeper, garbage truck, garbage station, watering cart, trailer, semi trailer, van semi-trailer, warehouse gate semi-trailer, dump trailer, low bed semi-trailer, and other special vehicle, covering nine major series of more than 100 kinds of products. The registered capital of the company is one hundred million RMB, and covers an area of about 180, 000, gross building area of 85, 000.
The company products are sold to Hebei, Henan, Shandong, Shanxi. Beijing, Tianjin, northeast area more than 20 provinces and autonomous regions by virtue of its beautiful appearance and excellent technology.
R & D and innovation
After nearly 20 years of development and precipitation, the company has grown into an important influence enterprise in the industry field, with strong maturity research and development, a good development platform and professional R & D team. Continuous innovation and actively docking with domestic institutions of higher learning, research and development institutions and foreign advanced technology, and re innovation, improving the product quality and product line constantly.
Quality assurance system
The company has established the quality control system and measures for the whole process of the product manufacturing, and through the research and design, process control, quality inspection and other aspects to ensure product quality.
The company has passed the QMS certification of ISO9001: 2008, EMS certification of ISO14001: 2004 and OHSMS certification of GB / T28001-2011, all products are certified by the national CCC.
After-sales service system
With advanced R & D technology, efficient after-sales service as an essential part of enterprise development. Introduction the international service concept and service mechanism of outstanding manufacturers, sound advanced mechanism of after-sales service system make each device sold to all parts of the country produced by the company get full and full range of tracking service from our professional after sales service personnel or appointed service agent. All products enjoy lifelong maintenance.
Development concept
Feixiang Yuanda Vehicle Manufacturing Co., Ltd. Adhering to the development concept of " sharing the success with the user, and shared responsibility with social ", taking "innovation, changing and sustainable management" as business policy, focus on environmental health, spare no effort to improve the innovation level, level of sale service marketing and production process manufacturing, strengthen the core competitiveness of enterprises further, lay the competitive advantage of subdivision market and achieve the far-reaching goals of "as the leader of overall solution plan of the environmental health", and strive to make a greater contribution to the cause of environmental health.
