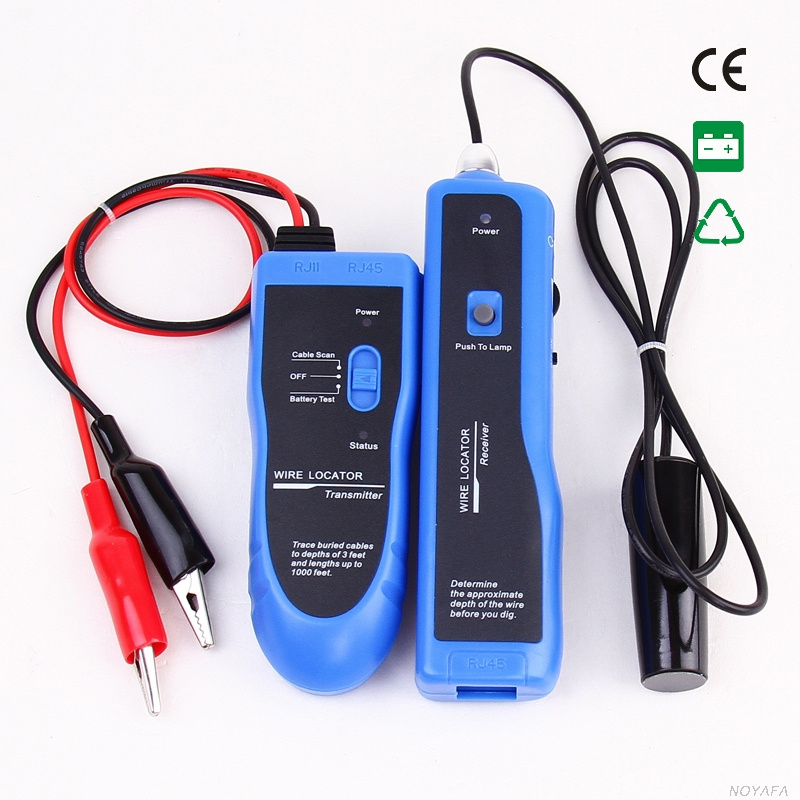

Underground Wire Locator NF-816 in Noyafa

Name: Underground Wire Locator NF-816 in Noyafa
Brand: China-Manufacturer-Directory.com
SKU: 775074925
Availability: InStock
Rating: 4.5 (148 reviews)

Supplier:	Shenzhen Noyafa Electronic Co., Ltd.
Price:	US $ 25.8-26.7/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	NF-816B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Impact Testing Machine
Weight:	0-100Kg
Display:	Tone
Power Source:	9V Battery

Product Description

Main functions:
Locating & tracking buried and hidden wires.
Determining Which Receptacles are on specific circuits.
Pinpointing Drill Sites before drilling.

White LED Flash Light .

Attention:
1.Don't connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.

Standard carton:*Carton size: 51x33x51cm
*Quantity: 40pcs/ctn
*Weight: 15.5kg
Technical indexes:

NF-816 Transmitter specifications
Tone frequency	900Hz
The Max length distance	1000 feet
The Max depth distance	3 feet
The Max. working current	Less than 70mA
Tone mode	1 Tone
Max. signal voltage	15Vp-p
Signal display	Signal tone, Antenna
Voltage protection	AC 60V/DC 42V
Battery type	DC9.0V(NEDA 1604/6F22) x 1pc
Dimensions (LxWxD)	49 x 135 x 33mm
NF-816 Receiver specifications
Frequency	900kHz
The Max. working current	Less than 70mA
Earphone jack	1
Battery type	DC9.0V(NEDA 1604/6F22) x 1pc
Dimensions (LxWxD)	43 x 168 x 27mm

Function Comparison:

Description	NF-801	NF-806	NF-889	NF-168	NF-268	NF-818	NF-816	NF-812
Tracing RJ11 Cable	ok	ok	ok	ok	ok	ok	ok	ok
Tracing RJ45 Cable	ok	ok	ok	ok	ok	×	×	ok
Tracing BNC Cable	×	×	×	ok	ok	ok	×	×
Testing RJ11 cable	×	×	×	×	×	ok	ok	×
Testing RJ45 cable	ok	ok	ok	ok	ok	×	×	ok
Testing BNC cable	×	×	×	ok	ok	ok	×	×
Locate breakage points	×	×	×	×	ok	×	×	×
Cable clip connected to transmitter directly	×	ok	ok	×	×	×	×	×
Anti-jamming when tracing on switcher	ok	ok	ok	good	best	ok	ok	ok
Pin-to-pin display	ok	ok	ok	ok	ok	ok	ok	ok
Backlight	ok	ok	ok	ok	ok	ok	ok	ok

Note: NF-801B & NF-801R / NF-806B & NF-806R is just different colors ( B:blue, R:red)
