Unique Design Customized Materials High Filtration Accuracy Cartridge Filters
Price: |
US $ 470-500/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Unique Design Customized Materials High Filtration Accuracy Cartridge Filters
Cartridge filter, also known as security filters, generally set before the pressure vessel to remove the tiny particles whose turbidity above 1 degree, to meet the requirements of the follow-up process of water; Sometimes, it is also set at the end of the entire water system to prevent small particles (such as broken resin) into the finished water.1. Characteristics1, high filtration precision, uniform pore size filter.
2, small filtration resistance, flux, interception capability, long service life.
3, filter is clean and no second pollution to the filter media.
4, It also can filter acid, alkali and other chemical agents.
5, high-intensity, heat-resistant, deformation resistance.
6, low price, low running costs, easy to clean, filter can be replaced.2. Commonly used wound filter and meltblown filterWound filter (also known as honeycomb filter), there are two types: One is polypropylene fiber - polypropylene skeleton filtration, the maximum temperature 60 º C; The other is cotton fiber - stainless steel frame filter, the maximum temperature 120 º C.
Raw material of meltblown filter is polypropylene, the maximum operating temperature is 60 º C.

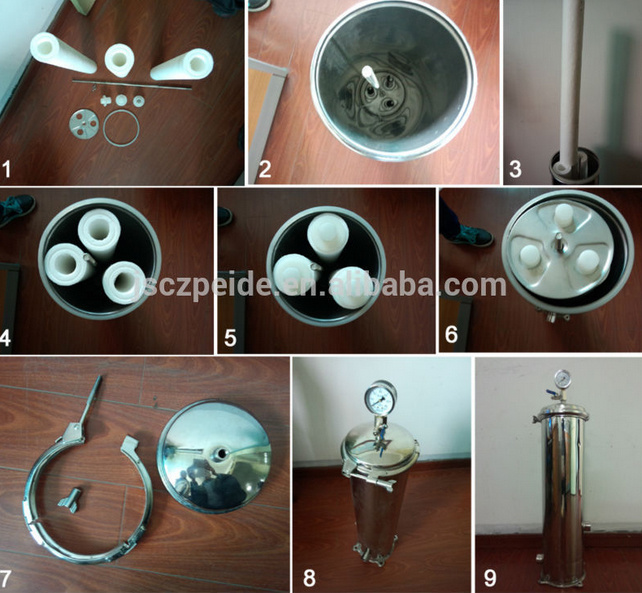

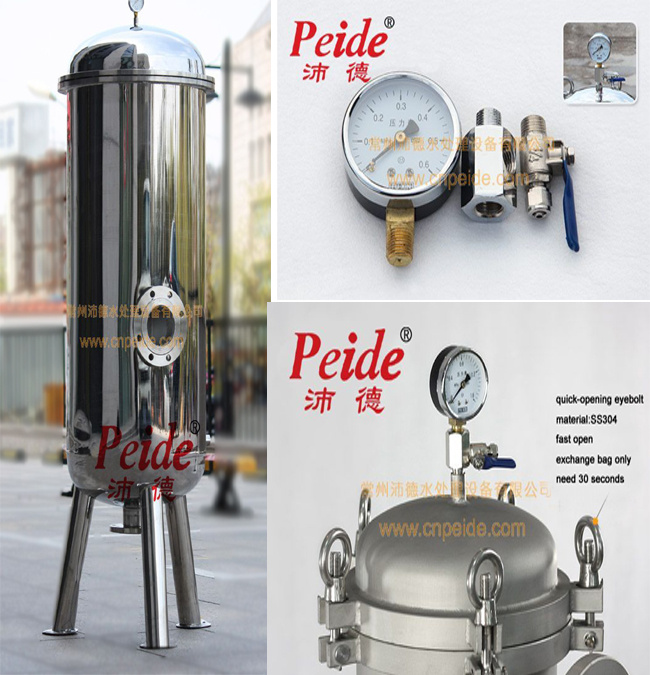

Sophisticated filters can remove suspended solids, colloidal substances and some fine particulate matter and so on.3. CompositionCartridge filter is mainly composed by the filter housings, filter cartridges and other components, and the filter housings materials is mostly made of R304 stainless steel, if it's used in the acid and other special occasions, it will be made by R316 stainless steel. It an be divided into the flange and clamp, and flanged housing is mainly used in the occasion of larger flow filtration. The filter is mainly made by PP cotton, it can also be made by wound filter or activated carbon filter on some occasions. The number of filter may vary from 1 to dozens, primarily be determined from the water flow rate.4. Application1, Food industry: Fine filter of space water, mineral water, beverages, liquor clarification and filtration process.
2, Pharmaceutical industry: Sterile water, oral, infusion and injection water treatment.
3, Electronics industry: Water preparation semiconductors, instruments, picture tubes and other production plants, wash water filtration bar.
4, Chemical industry: Organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification.
5, Oil industry: Oil field water injection preparation and so on.
6, Environmental protection, electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater treatment.
7, Seawater, brackish water desalination water treatment, hotels, apartments water treatment.
8, Precision filter is often used as security filter for electrodialysis, ion exchange, security filters reverse osmosis devices.PRODUCT DETAILS
5. ParameterWorking pressure: 0.6 / 1.0 / 1.6Mpa
Body Material: Stainless steel (SUS304, SUS304L, SUS316, SUS316L).
Operating temperature: 5 ~ 40 º C (exceed 60 º C to be informed)
Design temperature: 5 º C -100 º C
Replace the pressure: 0.05Mpa-0.07MPA
Filter interface: Flat compression, plug-in
Cylinder and base connection mode: Quick opening, flanged
Filtration accuracy: 1μ M ~ 100μ M
Cartridge Quantity: 1 core to 180 cores
Filter Length: 10 "~ 40"
Seal type: O-ring or flat washer
Seal Material: PTFE, rubber.
Finish: Matte jet beads, mirror electrolytic polishing.
Manufacturing, testing standard: GB150 standard, or user-specified criteria. WELCOME TO INQUIRE, WE WILL OFFER YOU THE BEST ITEMS !
Prod Model: |
DLQ02-2# to DLQ24-2# |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Filter Precision: |
1-100 Microns |
Airproof Type: |
O-Ring and Washer |
Suitable: |
Plain 222 and 226 Socket |
Design Pressure: |
0.75_1.6MPa |
Design Temperature: |
20~120 Degree |
Voltage: |
220V50Hz |
Brand Name: |
Peide |
Application: |
Water Filter |
Condition: |
New |
Product Model: |
Jlq |
Filtration Grade: |
Medium Filter |
Type: |
Mesh Filter Bag |
Material: |
Carbon Steel, 304ss or 316L |
Cartridge Filter: |
PP |
Usage: |
Water Filter |
Medium Material: |
Particulate Matter |
Started from 2004, Peide has been concentrating on research and production for water treatment equipment, our founder Mr. Wu has been supplying team work for over 7000 project, and draw lessons from A large number of engineering practice and accumulated rich experience in design and installation. Considering from better cost-efficiency, safety, credibility, we supplied our solutions to our customers, such as Cocacola China, Pepsi China, Siemens, Gates Hydraulic, HSBC, Shanghai Expo Venue, Danone, Kerry food, Kafu, Hair, Lenovo, GE, Benz, Toyota, Hyundai Motor etc.,
For decades, we have been water treatment equipment for food, beverage, pharmacy, hospital, precision electronics, chemical, electric power, surface cleaning, air-conditioner industries. Our customer is mainly in the USA, Japan, South Korea, France, Norway, England, India, Chile, Mexico and other 70 countries.

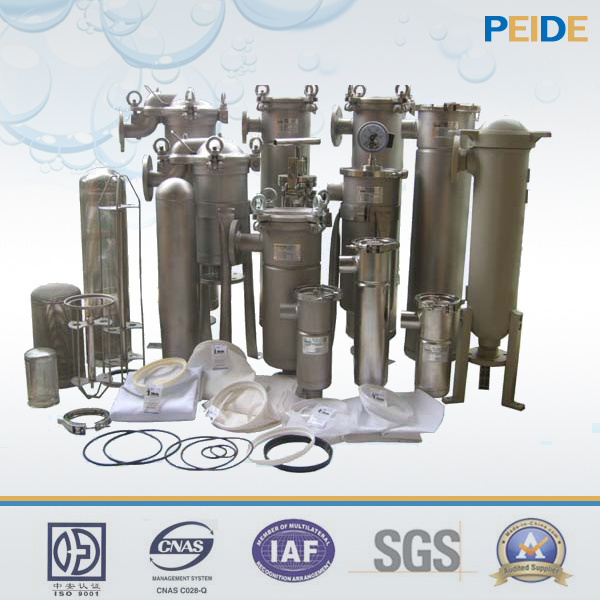

Mainly Products: UV water sterilizer & disinfection equipment, Water Filter equipment including Bag type filter, Sucking automatic type filter, Automatic brush type filter, Sand filter equipment, Electric scale equipment, Recycling water treatment equipment, Ion stick etc., .
Certificate: ISO: 9001: 2008, CE, China Famous Brand
Sales: 20M RMB/year
Peide is always looking for new ways to increase the value of the products and services we offer to our customers. Our goal is to creat class quality, class service, class management and class environment. Try to make our sky bluer, our ground greener our water cleaner.
