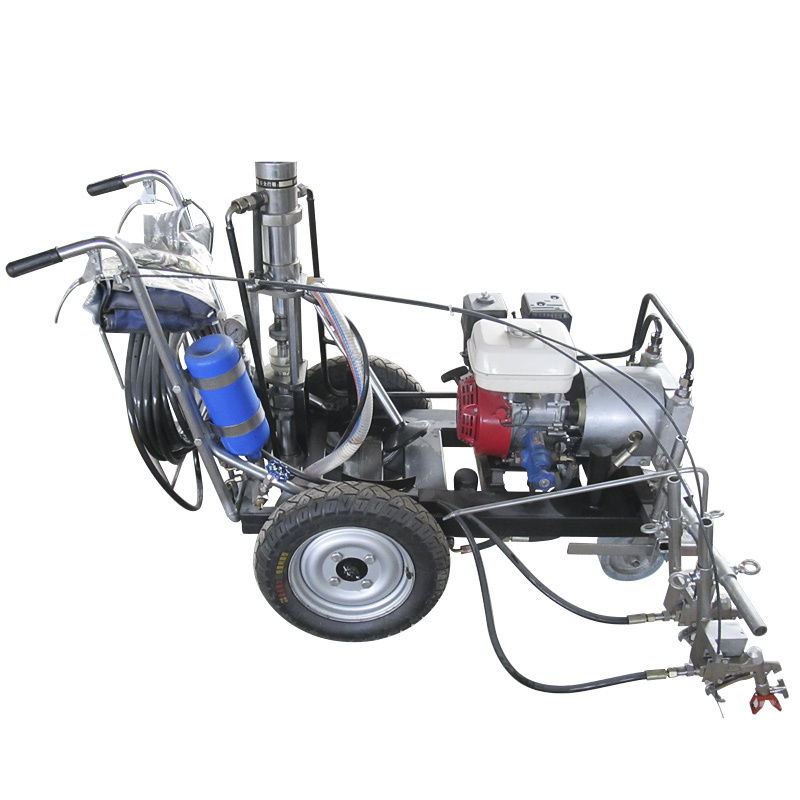

LM30 type hydraulic hand push room temperature marking machine, simple operation, superior performance, low price, durable, high efficiency, is domestic most advanced marking machines at present,This marker for the airless spraying, coating of high-pressure pump to high up to 20 mpa (about 100 kg/cm2), make the coating (marking paint) by spray gun forced pressure spray to the road, let road marking paint combined with close, without micro bubbles, compactness and much higher than the brush and air spraying, line is durable, does not fall off.Simple to use, the function is all ready.
| main technical parameters forHand-push Piston Pump High Pressure Road Marking Machine For Cold Paint LM30 |
|
| Model | KM30 |
| Pump | Piston high pressure coatings pump |
|
|
|
|
|
|
| Engine | Honda 5.5HP gasoline engine |
| Device | Mechanical control automatic reversing device |
| Spraying gun | Special spray gun adjustment on the work Double, in hand or fixed
Hydraulic pressure spray gun, switch quickly, marking and tidy |
|
| Spray Nozzel | Post type swirl nozzle, easily solve the congestion problem |
| control apparatus | Unique spray gun control device, which can realize crossed in a garage into a regulation |
| pressure | Large flow, high pressure and the maximum pressure of 20 mpa, hydraulic table shows a reading of 10 mpa (supercharging effect of the hydraulic cylinder, hydraulic table shows reading about 1/2 of coating pressure), commonly used 15 mpa pressure (about 100 kg/cm2), hydraulic table shows readings for 7 mpa, maximum flow 8 l/min |
| linetype | It Can draw line, single line,double line and so on |
| Marking Speed | 3-5 kilometer/hour,Using large nozzle can draw up to 2-4 km/h |
| working pressure | 15mpa |
| Nozzle | Pillar type swing the hard edge nozzle |
|
| Width of spraying | 5-40cm adjustable,equipped with two spray gun |
| Structure | Compact structure and multifunctional, high effeciency, operate easy |
| Dimension (L*W*H) | 1400x1100x1000mm |
| weight | 70kg |
