IntroductionThis hardness tester serves the purpose of measuring the hardness of Rockwell, Brinell and Vickers for ferrous, non-ferrous metals, hard metal, alloy, carburized layers and chemical treating layers.
Features
With intuitive LCD and Microchip control system, makes hardness testing be automatically operated.
Built-in printer records the main technical data of the entire testing process.
Adopting manual test platform, it completely achieves the realization of the test force imposing, removing, hardness value direct showing and other automated operation.
With high accuracy, avoiding the human operational error, is a mechanical and electrical integration also high-tech and advanced hardness tester.
It has high precision, easy operation, high sensitivity, reliable variable-Dutch, showing the stable value, which is widely used in factory workshops, laboratories, universities and research institutions.
Introduction of Digital Brinell, Rockwell & Vicker Universal Hardness Tester

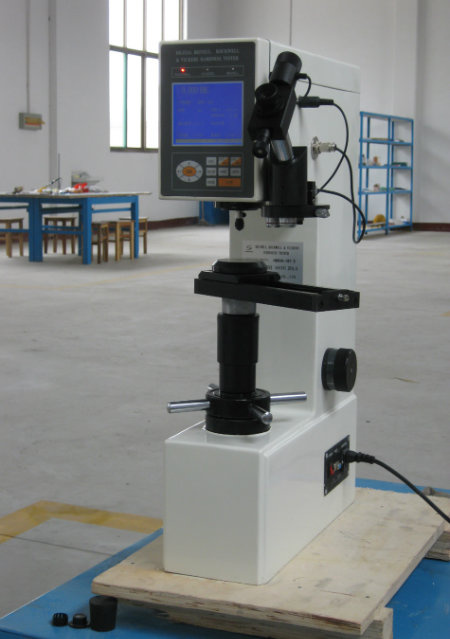

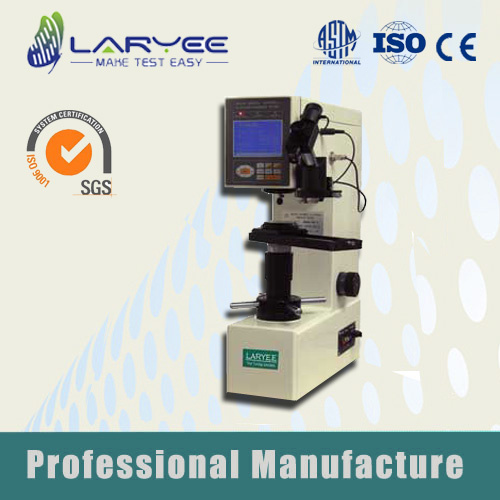

Model HBRVS-187.5 digital Brinell, rockwell and vickers hardness tester with intuitive LCD and singleclip control system, makes hardness testing be automately operated. The machine builted-in printer to record the main technical data of the entire testing process. In addition to manual test platform, it compeletly achieve the realization of the test force imposing, removing, hardness value direct showing and other automated operation.
Features| Description | HBRVS-187.5 |
| Initial test force | 98N |
| Total test force | Brinell test(N): 306.613.1839
Rockwell test(N): 588.980.1471
Vickers test(N): 294.588.980 |
| Microscope magnification | 37.5× . 75× |
| Hardness reading Indication mode | LCD |
| Measuring eyepiece | Automatic Digital encoder |
| Minimum division of Hardness Indication (HR) | 0.1 |
| Total test foce loading keeping time (s) | 1-60 |
| Maximum height of specimen (mm) | 180 (Rockwell) 135 (Vickers, Brinell) |
| Depth of throat (mm) | 140 |
| Dimensions | 463× 215× 700mm |
| Power supply | AC220V |
| Light Voltage | 5V/5W |
| Weight | 75KGS |
Laryee Technology is a top leading Chinese testing equipment and instrument product manufacture and solution system integration supplier.Our Headquater is located in Beijing, China.And also we have two factories which invested by LARYEE base both in Beijing and Jinan, Shandong provice.According to all kinds of testing requirement of GB, ISO, ASTM, BS EN and etc, our international technician and business team can offer our different field customer best testing solutions and general or special equipments.
Laryee's nice new products, superior technology, excellent quality and well service have won the customers all over the world.Nowadays, Laryee has the good relationship with many customers such as Southeast Asia, Middle East, Latin America, Africa, European and so on.
