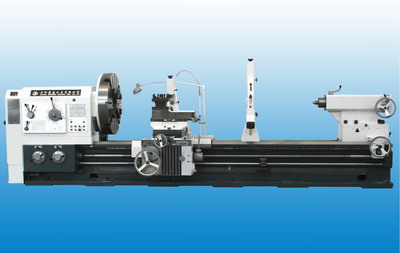

Universal Lathe (CW61100B CW61125B CW61160B)

Product Specifications

Prod Model:	CW61100B CW61125B CW61160B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Metal Cutting Machine

Product Description

CW61100B CW61125B CW61160B parallel lathes are suitable for turning or cast iron and steel workpieces, turning of non-ferrous metal parts of big or medium sizes. It can do external cylindrical surface turning, inner hole and end face turning. It can also turn various intemal and external metric, inch, module and diametrical pitch threads, the top slide can be used independenthy for turning of short taper.

These lathes are of high power, high rigidity and wide rotating speed range, so it can be used for high speed and strong force turning.

Main Struture
1. Bed with high rigidity
Casted in whole piece, box type internal structure, of high rigidity, with hardened guideway, TSF coated carriage to minimize the possibility of low speed stick-slip.
2. Main spindle with high rigidity and high accuracy
Spindle bearing of famous brand, spindle-box of heat-symmetrical structure to avoid spindle axis drifting, oil lubricating to minimize heat distortion. Spindle with three support structure to secure accuracy and increase rigidity, all gears quenched and tooth-ground to secure precise transmission and low noice. So the spindle is of low temperature rise, minimized heat distortion, and long-term steady high accuracy.
