Universal Precision Machine Metal Lathe (CW6180Cx1500)

Name: Universal Precision Machine Metal Lathe (CW6180Cx1500)
Brand: china-manufacturer-directory.com
SKU: 758277625
Availability: InStock
Rating: 4.7 (35 reviews)

Supplier:	Jadestone Machine Tool Co., Ltd.
Price:	US $ 1000-19800/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CW6180Cx1500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue
Capacity:	1500-3000mm
Type:	Horizontal Lathe
Tool Holder:	Double-tool Holder CNC Lathe
Power Source:	Electric
Controlling Mode:	Artificial
Automatic Grade:	Manual
Setting Mode:	Floor-type
Precision:	Normal Precision

Product Description

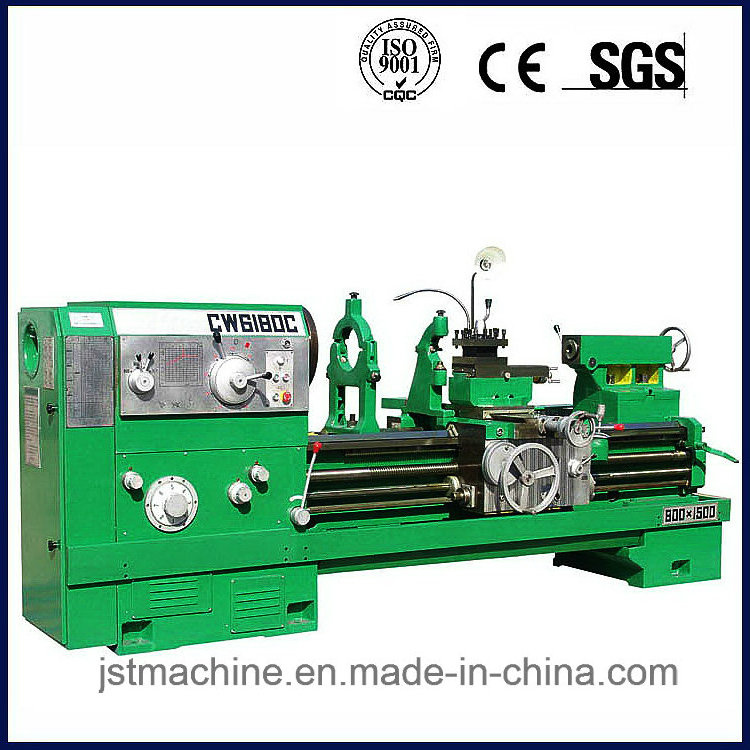

Universal Precision Machine Metal Lathe(CW6180Cx1500,CW6180Cx3000)

The lathes are suitable for turning internal or external cylinders, taper and swing surfaces, and different metric, whitwordth, module, and diametric, pitch threads. Theycan be used for broaching oil grooves and keyways.

Main Fethers:

1. The side wall is consist of double rib plates, shapes of internal ribs adopt box and bevel ribs combined. Stable working precision and strong cutting ability.

2. Rapid moving device fitted, which operate by a single level. Spindle rotation and clutch brake control by the hydraulic system

3. The guide line of the saddle adop"TSF" resisting material.

4. Big Spindle Bore sizes can hold with 4"(Dia100mm) bar stick.

5. Working piecs size ranges: 1500-3000mm

TECHNICAL SPECIFICATION
Model	CW6163C	CW6180C	CW61110C
Max. swing diameter of workpice over bed	630mm	800mm	1110mm
Max: workpiece length	1500mm 3000mm	1500mm 3000mm	1500mm 3000mm
Max. swing diameter of workpiceover tool-post	350mm	520mm	780mm
Spindle bore	100mm
Taper of spindle nose(metric)	01: 20
Range and steps of spindle speed	7.5-1000r/min 18 kinds
Longitudinal and cross feeds	Each 64 kinds: 0.1-24.3mm/r
Rapid speed of carriage	4000min/min
Cross-to-longitudinal feed rate	1/2 & 1.3/2
Screw pitch of leadscrew	12mm
Number and range of metric thread	50 kinds, 1-240mm
Number and range of withworth thread	26 kinds, 14-1t. p. i
Number and range of module thread	53 kinds, 0.5-120mm
Number and range of diametral pitch thread	24 kinds, 28-1t. p. i
Max: travel of cross tool-post	315mm 400mm
Max: travel of upper tool-post	200mm
Tailstock' s center sleeve bore	100mm
Travel of tailstock' s center sleeve	250mm
Taper of tailstock' s center sleeve	Morse No. 5
Main motor power	11kw
Net weight	4.2t 5.2t 4.6t 5.6t 4.5t 5.6t
Overall dimensions length	3690mm 5190mm 3690mm 5190 3690mm 5190mm
Width	1380mm 1425mm 1380mm
Height	1450mm 1535mm 1390mm
