Product Specifications
| Prod Model: |
UC-201 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
Product Description

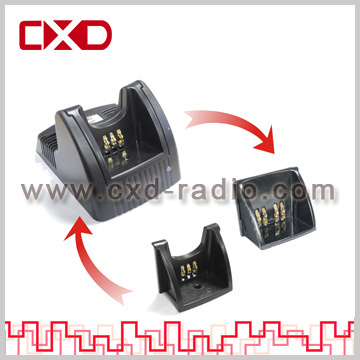

Two way radio accessories/two Way Radio Charger/Single Way Universal Rapid Charger (UC-200)
1. Able to charge ni-CD, Ni-MH and Li-ion batteries
2. Available for vehicle or office use
3. Available with different radios and cups:
1)Motorala gp300, gp340, visar, p020, sp10 and p080 etc
2)Kenwood knb-15, knb-17, knb-29n and knb-45L etc
3)Icom bp210 and bp232
4)Vertex fnb-v83
1. This machine is the universal filling to apply the following brand most battery:
The Motorola, Kenwood, Icom, Vertex, Uniden, Maxon, Tait Orca, EADS
2. The charger should be used together with our transformer.
The main technical indexes:
The input power supply: AC 220 V + 10%
Charge current: 700 ma
Rechargeable batteries7.2 Vbattery
Weight: 0.45 KG
Power Transformer Numbers:
120 VAC(the United States) 2504548 T05
230 VAC(UK) 2504548 T06
230 VAC(Europe) 2504548 T07
230 VAC(Australia) 2504548 T08
3. Method of use:
1. Will the output transformer connected charger behind of the power source.
2. Will the transformer plug into the appropriateACThe power supply, charger greenLEDLight will be flashing said state. To charge
3. Will the battery, or radio (radio with battery should be shut off) insert charger, Ensure the battery contacts and charger touch contacts is good.
4. When the battery is correct when in place, the charger will red light means the battery is fast charging, when the battery to filling90%Electricity, greenLEDLight will be flashing said into the small current pulse charging, when the batteries are full of, greenLEDLights will ChangLiang said charging completed.
Note: To ensure that the battery performance, the first charge, charger the green light (after charging finish) continue to charge14to16Hours.
Please charge at room temperature.
Two way radio accessories
For:
CP040, CP140, CP150, CP160, CP180, CP200, CP340, CP360, CP380, EP450, GP3188, GP3688, NNTN4496, NNTN4496AR, NNTN4497, NNTN4497A, NNTN4497AR, NNTN4497BR, NNTN4497CR, NNTN4851, NNTN4851A, NNTN4851AR, NNTN4851R, NNTN4970, NNTN4970A, NNTN4970AR, NTN4496, NTN4497, NTN4851, NTN4970, PM400, PR400
GP1280, GP140, GP240, GP280, GP320, GP328, GP329, GP338, GP339, GP340, GP344, GP360, GP380, GP388, GP540, GP580, GP640, GP680, GP688, GP750, HNN9008, HNN9008A, HNN9008AR, HNN9008R, HNN9009, HNN9009A, HNN9009AR, HNN9009R, HNN9009RS, HNN9010A, HNN9010AR, HNN9011, HNN9011A, HNN9011AR, HNN9012, HNN9012A, HNN9012AR, HNN9012R, HNN9013, HNN9013A, HNN9013AR, HT1250, HT1250LS, HT1500, HT1550, HT1550XLS, HT750, MT8250, MT8250LS, MTX 8250, MTX 850, MTX 9250, MTX 950, MTX
KNB-29A, KNB-30A, KNB29N, TK-2212, TK-2300, TK-2302, TK-3212, TK-3300, TK-3302, TK2200, TK2200L, TK2200P, TK2202, TK2202L, TK2207, TK3200, TK3200LP, TK3200P, TK3201, TK3202, TK3207
BH1501, BH1502, TC-268, TC-268S, TC-270, TC-278, TC-368, TC-368S, TC-368G, TC-370, TC-370M, TC-380, TC-380M
Shenzhen CXD Science & Technology Co. Ltd., is specialized in two-way radio accessories, since 2001.
We've been serving clients in the Europe and the US, and completing OEM projects for Diomand from Japan.
We offer replacement accessories for two-way radio: Batteries, audio accessories like microphones, headsets, surveillance earpieces, antennas and much more!
Which are compatible with most two-way radio brands such as Motorola, KENWOOD, ICOM, VERTEX, YAESU, STANDARD, ALINCO, KYODO, SIMOCO, UNIDEN, TAIT and more. We also welcome OEM and ODM orders.
All of our products are rigorously tested before exporting. We conduct battery capacity test, charging/discharging test, and earpiece PU tests and more. We source SANYO battery cores and ABS battery shells, ensuring our "CXD" products are of reliability and value you can always count on.
Our Ordinary orders can be ready in just 7-10 days. To find out more about what we can do for you, contact us now.
