Product Specifications
| Prod Model: |
MA6025 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Source: |
Electricity |
| Working Style: |
High-speed universal |
| Type: |
Tools Grinding |
Product Description
Features

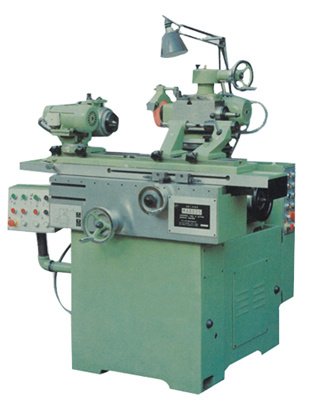

The series machine are specially suitable for sharpening tools in HSS, tungsten carbide and other materials, also for cylindrical, surface, slot and profile grinding work. By using additional attachments, you greatly extend the range of application of there machines and can solve individual machineing problems, such as grinding of various hobs, for tools, spherica cutters, twist drills and steep taper reamers, etc.
The series machine wheelhead with two-dimensional setting (except MA6025B), workhead stock swivels with double dir., And supplied with ISO-50 taper hole. Worktable is supported in preloaded ball guide and can be driven by hand or by infinitely changing rate hydraulic.
Model
| MA6025
|
Distance between workhead and tailstock centers
| 545mm
|
Distance between lifthand tailstock
and righthand tailstock centers
| 650mm
|
Max. workpiece diameter
| 250mm
|
Height of centers
| 130mm
|
Max. length for cylindrical grinding
| 270mm
|
Worktable travel by hand
| 400mm
|
Swivel range of table to either side
| + 45°
|
Vertical/cross slide travel
| 230/ 250mm
|
Vertical movement speed of wheelhand by power
| 280mm /min
|
Max. Min. distance between table
surface and grinding spindle
| 298/ 48mm
|
Horizontal swivel range of wheelhead
| 360°
|
Grinding spindle inclinable
| + 15°
|
Grinding spindle speed
| 2700. 4000. 5500rpm
|
Total power
| 3.15kw
|
Overall dimensions
| 1332x1318x 1314mm
|
Size of case
| 1790x1520x 1640mm
|
G.W./N.W.:
| 1250/1100kgs
|
