Product Specifications
| Prod Model: |
UTP CAT6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LAN Netork Cable: |
Communication Cable |
| Ca6: |
UTP FTP |
| Twisted Wire: |
Support |
| Coductor: |
CCS,Cu,CCA Option |
| PE Insulation: |
Support |
| PVC Jacket: |
Support |
| PE Outer Jacket: |
Support |
| Rip Cord: |
Support |
| Corss: |
Support |
| Total Number Of Insulated Conductors: |
8.Twisted in 4 Pairs |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PE |
| Type: |
Cat 6 |
| Certification: |
ISO |
Product Description
Description
4 pair cores, 23 AWG conductor, PE insulation, PVC jacket, PE outer jacket, 305m package. conductor diameter: 0.574±0.004mm Insulation material: PE PVC jacket thickness: 0.5mm PE outer jacket thickness: 0.5~0.6mm Jacket diameter: 6.1mm

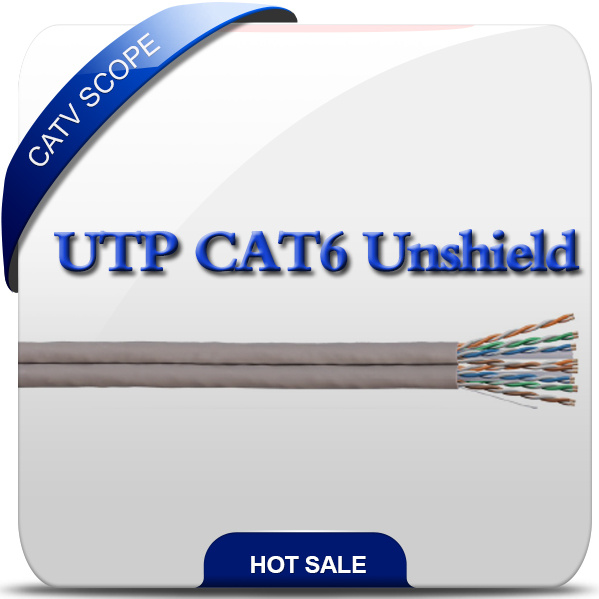

| U/UTP Unshielded CAT6 Twisted Pair Installation Cable |
|
| Application |
|
|
|
|
|
|
|
|
| Meets or exceeds ANSI/TIA-568-C.2 and ISO 11801 2 and edition class D category 6 channel standards |
| Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 6 component standards. |
| Meets requirements of IEEE 802.3af and IEEE 802.3 at for PoE applications. |
| Third party tested to Category 5e channel compaliance |
| Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap |
| Color Availability:Additional cable colors available |
| Electrical Characteristics |
|
|
|
|
|
|
|
| Impedance | 1-250MHz 100±15(ohms) |
| Rated Temp | 75ºC |
| DC resistance Unbalance(%) | max 2.5 |
| DC resistance 20ºC | 9.5(Ohms/100m) |
| Pair-to-Gruond Capacitance Unbalance: | 330(PF/100m) |
| Installation Resistance: | >5000Mohm Km |
| Dielectric strength | DC2500V 2S |
| Conductor |
|
|
|
|
|
|
|
|
| Conductor | Solid Bare Copper 23AWG |
| Insulation | HDPE |
| Total Number of insulated conductors | 8.twisted in 4 pairs |
| Color Code | Blue x white,orange x white,Green x white, brown x white |
| Individual pair shield | None |
| Overall shield | Aluminum foil,providing 100% coverate.foil face out. |
| Drain wire | None |
| Nominal Transmission Characteristics |
|
|
|
|
|
|
| Frequency | RL(min) | IL(max) | Propagation Delay(max) | Delay Skew(max) | NEXT(min) | PSNEXT(min) | ELNEXT(min) | PSELNEXT(min) |
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
| 1 | 20 | 2.2 | 590 | 45 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 23 | 4.1 | 572 | 45 | 65.2 | 63.2 | 55.7 | 52.7 |
| 10 | 25 | 6.5 | 565 | 45 | 59.3 | 57.3 | 47.8 | 44.7 |
| 16 | 25 | 8.2 | 563 | 45 | 56.2 | 54.2 | 43.7 | 40.7 |
| 20 | 25 | 9.3 | 562 | 45 | 54.7 | 52.7 | 41.8 | 38.8 |
| 31.25 | 23.6 | 11.5 | 560 | 45 | 51.8 | 49.8 | 37.9 | 34.9 |
| 62.5 | 21.5 | 16.2 | 558 | 45 | 47.3 | 45.3 | 31.9 | 28.9 |
| 100 | 20.1 | 20.4 | 557 | 45 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 18 | 29 | 536 | 45 | 39.7 | 37.7 | 21.7 | 18.7 |
| 250 | 17.3 | 32.8 | 535 | 45 | 38 | 36 | 19.8 | 16.8 |
