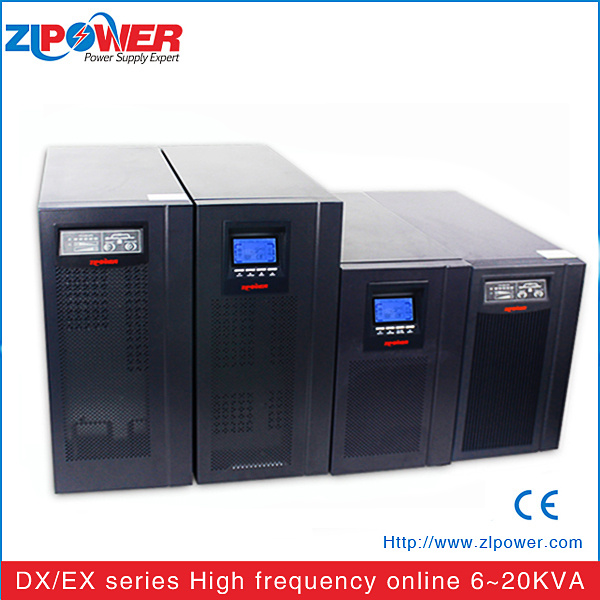

UPS-Double Conversion UPS with Internet Manage (6-20KVA)

Product Specifications

Prod Model:	EX6K~EX3120KL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Logo:	Zlpower or OEM
UPS Input Voltage Range:	60-138VAC or 115-300VAC
UPS Power Factor:	>0.97
Wave Form:	Pure Sine Wave
Input Phase:	Single Phase with Ground
Current Crest Ratio:	3:1
AC Mode Efficiency:	85%
Battery Mode Efficiency:	83%
Operation Temperature:	0~40centi-Degree
Operating Humidity:	20-90%(Non Condensing)
Phase:	Single Phase
Type:	On-line
Protection:	Over Load, Heat, Low Voltage

Product Description

Large LCD digital display shows detailed real-time UPS status and parameters.
EX6K-EX3120KL high frequency online UPS, is a powerful product range with high adaptability and flexibility. Its cut-edge digital control technology of DSP (Digital Signal Processor), can greatly improve the product performance and system reliability, and deliver a compact integration with higher power density.
Meanwhile, this uninterruptible power supply is especially tailored for all customers' personalized demands to provide powerful scalable functions. The unit can be flexibly configured on user's demands.

Application:
Servers, data center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.

Main Features:
1. Large Blue Ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
2. Output Voltage, Frequency parameter and bypass function can be set via the display.
3. Advanced MCU microprocessor control technology and DSP technology, ensure long life reliability.
4.192vdc battery input voltage.
5. Wide input AC voltage range, Zero transfer time
6. True online double conversion technology.
7. N+X Parallel Redundancy
8. Excellent Protection against over voltage, over load, over current, over charge and so on.
9. Input L and N lines reverse wiring detection, Auto start when AC back.
10. DC start function, Input PFC revise function.
11. Humanization bypass output can be adjustable.
12. Smart RS232 communication with monitoring software
13. Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
14. Available to work with generators. 15. Lightning, surge, short circuit, Network/fax/modem surge protection

Online UPS MODEL		EX6K	EX10K	EX6KL	EX10KL	EX3110KL	EX3115KL	EX3120KL
CAPACITY	VA/W	6KVA/4.8KW	10KVA/8KW	6KVA/4.8KW	10KVA/8KW	10KVA/8KW	15KVA/12KW	20KVA/16KW
INPUT	Nominal Voltage	220/230/240VAC				380VAC
	Voltage Range	120-275VAC				210-475VAC
	Frequency Range	46-64Hz: 50Hz, 60Hz auto sense
	Phase	Single phase with Ground				Three phase (4 Wires+Ground)
	Power Factor	>=0.99				>=0.95
OUTPUT	Voltage	220/230/240*(1±1%)VAC
	Frequency	50/60Hz(Adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1±0.1%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.1%)
	Wave Form	Pure Sine Wave
	Power Factor	0.8
	Harmonic Distortion	=<2% THD (Linear Load), =<6% THD (Non-Linear Load)
	Overload Capacity	Normal when load < 105%; 105%-125% for 1 min, 125%-150% for 30sec
	Current Crest Ratio	3:1
	Connections	Terminal block
Efficiency	To AC Mode	88%				85%
	To Battery Mode	up to 90%
Battery	Type	Sealed free maintenance lead acid battery
	Nominal DC voltage	Built in batteries 12v7.2ah*16pcs		192VDC		192VDC
	Quantity	16pcs	16pcs	Depends on requested back-up time		Depends on requested back-up time
	Back-up Time (Full load)	>=7 minutes	>=5 minutes	Depends on the capacity of external battery bank		Depends on the capacity of external battery bank
	Recharge Time	7 hours to 90%		Depends on the capacity of external battery bank		Depends on the capacity of external battery bank
	Charge current(MAX)	2.0A		4.2A or 8A		4.2A or 8A
	Charge voltage	220Vdc ± 1%
Bypass	Automatic Transfer	On overload and UPS failure
	Before UPS Power-on	Default "NO" user adjustable to "YES"
Transfer Time		Zero
Indicators	LED Display	UPS status, I/P & O/P voltage& frequency, Battery voltage, Battery capacity, Loading, Fault code
Audible Alarm		Bypass, On battery mode, Battery low, Overload, Fault
Acoustic noise	At 1 meter distance	<55dB				<60dB
Communications	Intelligent RS232 serial port	Windows 98/NT/2000/XP/2003, Linux, Sun Solaris, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC
	SNMP (Optional)	Power management from SNMP manager and web browser
	USB (Optional)	Windows family software and Mac OS
Environmental	Operating Temperature	0~40centi-degree
	Operating Humidity	20~90% ( Non Condensing)
Weight	Net weight (kg)	57	67.5	18	20	27	35	35
UPS Dimension	L*W*H (mm)	500*248*616	500*248*616	500*240*460	500*240*460	500*248*616	500*248*616	500*248*616
There are two types: Standard type and Professional type, Professional type is with EPO, online maintenance and other functions.
