Product Specifications
| Prod Model: |
ZCS38 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sample: |
Yes |
| Card Type: |
IC EMV Card Chip |
| Type: |
Currency Detector |
| Certification: |
CE |
Product Description

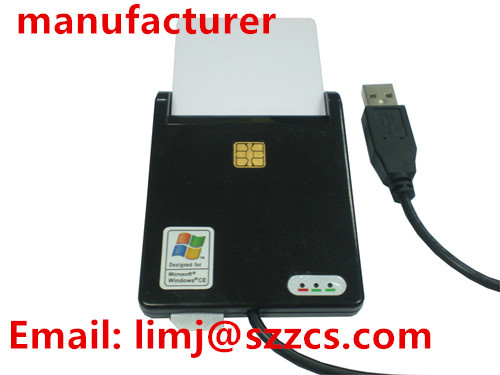

ZCS38 is a smart card reader is a high-speed smart card reader/writer, which has proven to support highly demanding smart card applications, Low cost but high quality, the ZCS38 creates lasting customer value and offers viable and user-friendly solutions for various smart card applications.
ZCS38 support ISO 7816 Classes A, B, and C smart cards, certified EMV cards, and works with memory cards and microprocessor cards with the T=0 and T=1 protocol. It also features a USB Full Speed interface and a smart card R/W speed of 344 kbps, Highly durable, it can last for at least 100, 000 card insertion cycles.
ZCS38 is easy to install, use, and integrate in a PC environment, it is PC/CS and CCID compliant, and its drivers are compatible with Windows operating systems, Linux and MAC. It can be used in numerous operations for e-Banking and e-Payment, Physical and Logical Access control, Transportation, and e-Government applications.
2. Applications
E-Government
E-Banking and e-Payment
E-Healthcare
Network Security
Access control
Public Key Infrastructure
Loyalty Program
3. Specifications:
USB 2.0 Full Speed Interface
Plug and Play CCID support brings utmost mobility
Supply voltage: 5V DC
Supply Current: Max. 50mA
Smart card read/write speed: Max. 344, 086 BPS
Card connector: Contact
MTBF: 500, 000 hours
Dimensions:
Color: Black
Weight:
Operating Temperature: 0~50ºC
Operating Humidity: 10~90%
Smart card support: Standards ISO 7816 & EMV 2 2000 Level 1
Protocols T=0, T=1,
Certifications: CE, FCC, RoHS
Operating System Support: Win98, Win2000, Win 2003, Win XP, Win vista, Win7, Mac, Linux
