Product Specifications
| Prod Model: |
NM-USB-1242 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Western Europe |
| Od: |
5.5mm |
| Connector Color: |
Nickel |
| Shieldig: |
Braid |
| Gender: |
Male to Female |
| Application: |
Mobile Phone |
| Interface Type: |
USB |
| Material: |
Copper |
| Feature: |
Explosion-proof |
| Power Cable Type: |
Two-pin |
| Shape: |
Round |
| Computer Cable Type: |
Data Line |
| Printer Cable Type: |
USB |
| Pin: |
a Male to a Female |
| Color: |
Black |
Product Description

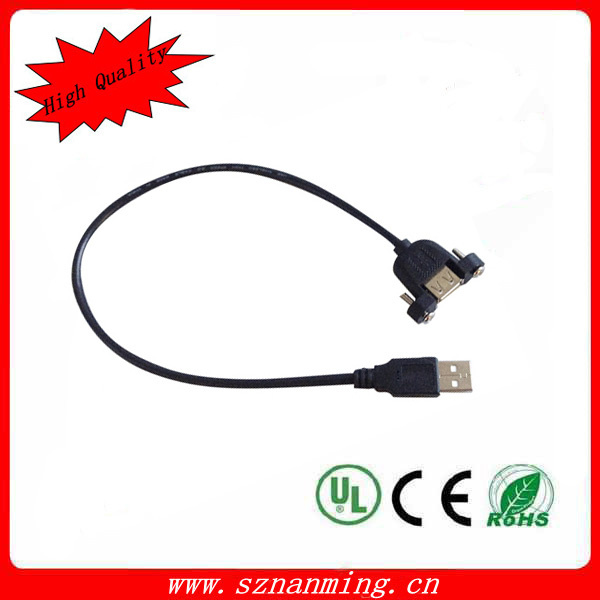

USB 2.0 panel mount extension cable
2.0 data connect USB cable male to female with panel mount, USB 3.0 cable is used to connect the USB-
Ready computer or USB hub to a digital camera or other portable device, such as an MP4 player or PDA,
etc. This cable is designed and manufactured to USB specifications to ensure it delivers its excellent
Performance.
Electrical:
100% open & short test
Hi-Pot: DC 300V 10ms
Insulation Resistance: 10M OHM /300V Min.
Contact Resistance: 0.01 OHM Max.
Shield up to 65% braid.
Mechanical:
Over mold: PVC 70PA UL94V-0 Black
Pre mold: PE Low Density
Contact: Copper Alloy.
Insertion Force: 35 N Max.
Withdraw Force: 10 N Min
| 1) Type: | USB 2.0 panel mount extension cable |
| 2) Connecor: | Gold, Nickel plated; |
| 2) Conductor: | Pure Copper; Tinned Copper |
| 4) Gauge: | 30AWG, 28AWG, 26AWG optional; |
| 5) Length: | 0.5M, 1.5M, 2M, 5M Customized; |
| 6) Jacket color: | Beige, Black, Transparent; |
| 7) Edition: | 1.1/2.0/3.0 Version Optional. |
| ？Guarantees 100% compliance with current USB specifications. |
| ？Molded-strain relief construction for flexible movement, durability, and fit. |
| Reduces cross talk and interference with aluminum undermold contact. |
| ？Complies with fully rated cable specification using braid-and-foil shield protection. |
| ？Power strands are 24AWG X 2, data strands are 28AWG X 2. |
