USB 3.0 to Gigabit 10/10/1000m Network Interface Card LAN Adapter (TS701G)
Product Specifications
| Prod Model: |
TS701G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
24G |
| Motherboard Integrated: |
Separate Network Card |
| Connecting Medium: |
Twisted Pair Card |
| Bandwidth: |
1000Mbps |
| Type: |
Wired |
| Interface: |
USB |
| Transmission Rate: |
10/100/1000Mbps |
| Application: |
Server |
| Frequency Range: |
Single Frequency |
| Type Of Network: |
Gigabit Ethernet |
| Field: |
Notebook, iPad.Tablet, PC |
Product Description

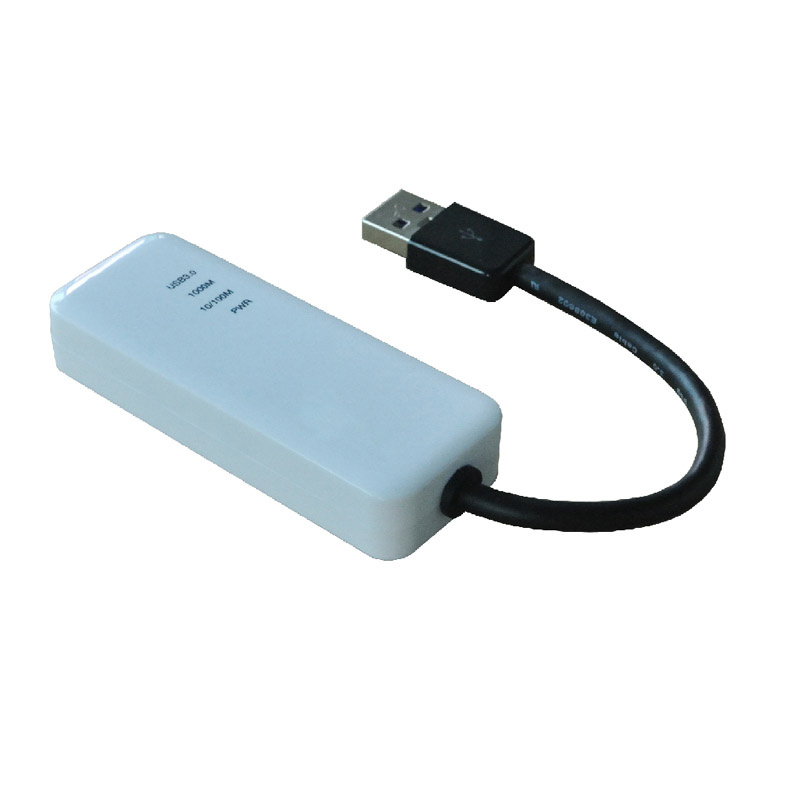

Product Overview This USB3.0 to RJ45 Lan adapter is a high performance and simple plug-and-play Gigabit Ethernet network connection capability for desktops, notebook PC's, Ultrabook's, docking stations, game consoles, digital-home appliances, and any embedded system using a standard USB port.The TS701G support power saving mode, It can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. Features Comply IEEE802.3,IEEE802.3u and IEEE802.3ab Support IEEE802.3X flow control for full duplex and back pressure flow control for half duplex Support IEEE802.3az energy efficient Ethernet function Support all USB 3.0 power saving modes Support USB Spec. 3.0, 2.0 and 1.1 Support USB Super/High/Full Speed modes with Bus-power or Self-power device auto-detect capability Support dynamic cable length detection and dynamic power adjustment Green Ethernet (Gigabit mode only) Support parallel detection and automatic polarity correction Support crossover detection and auto-correction Support advanced link down power saving during Ethernet cable is unplugged Support auto detach power saving, soft-disconnected from USB host when Ethernet cable is unplugged RoHS compliant Specification| Model | TS701G |
| Interface | 1x10/100/1000 Mbps Ethernet port
1xUSB 3.0 port |
| LED Definition | 1*LED for Power
1*LED for 10/100Mbps
1*LED for 1000Mbps
1*LED for USB3.0 |
| Dimensions | 73.2x28x13.6(mm) |
| Case | Plastic |
| Weight | 24g |
| Temperature | Operating: 0°C ~ 40°C (32°~104°F)
Storage: -20°C ~ 70°C (-4°~158°F) |
| Humidity | Operating: 10% ~ 90% RH, non-condensing
Storage: 5%~90% RH, non-condensing |
| Safety | CE, LVD |
| EMC | FCC, CE Class B |
We are a new company, But my team has many years of experience in the field of communication. Especially in Ethernet and wireless networking products. Our engineers from companies such as tp-link and enhances our R & D capabilities and product quality. At the same time we are also microsemi and Realtek's strategic partners.
Our main products include power over Ethernet switch, wireless access point, wireless router, outdoor CPE and fiber optical transceiver. Also we supply fiber switch and media converter, Stable performance and competitive price.
Phynam communications adhering to "create bring convenience to the life", with innovative products and reliable product quality to win customer trust. Phynam communication based on customer demand, supply PoE to the terminal (PTTT), optical fiber to the desktop (FTTD), and wireless products, provide the perfect solution.
Fhynam communication PoE to the terminal product mainly includes PoE 10/100M/1000M series PoE (power over Ethernet) switches, PD and PoE injector. My company POE switches are widely used in video monitoring, wireless city, the communication between IP telephone, data acquisition etc. Phynam forward the concept of POE to terminal, provides many kinds of POE products in a reliable way.
Phenam communication wireless cover products such as wireless router, wireless AP, mainly used in public buildings, shopping malls hotels, office buildings and other occasions, to provide users with stable and reliable, fast and convenient wireless network.
Phynam communication FTTD products mainly include fiber optic router, fiber optic Ethernet switches, fiber optic network adapter, optical transceiver and fiber patchcord. FTTD is the final solution to solve broadband highway "last 1 meter" transmission bottleneck. Phynam communication was originally proposed the concept of optical communication field "last 1 meter", and make unremitting efforts to solve it.
Phynam adhering to the idea of "Create benefits to the public life", with innovative products and reliable quality to win customer's trust. Phynam believe that to create is the soul of the products and the quality is the body of the products. Let's creative work can benefit the public life.
