USB Cheap RFID ACR 122 Nfc Contactless Reader Writer

Name: USB Cheap RFID ACR 122 Nfc Contactless Reader Writer
Brand: china-manufacturer-directory.com
SKU: 763521315
Availability: InStock
Rating: 4.4 (80 reviews)

Supplier:	Guangzhou Yishu Electronic Technology Co., Ltd.
Price:	US $ 25-35/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	YS-632
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	5(W)
Operating Frequency:	13.56(kHz)
Reading Time:	0.01(S)
Weight:	70 G
Operating Distance:	5 Cm
Source Voltage:	5V
Supply Current:	00 Ma (Work); 50 Ma (Standby); 100 Ma (Regular)
Operating Temperature:	0-50°c
Reading Distance:	5(Cm)
Application:	Control, Electronic Payment, Bus Electronic Ticket

Product Description

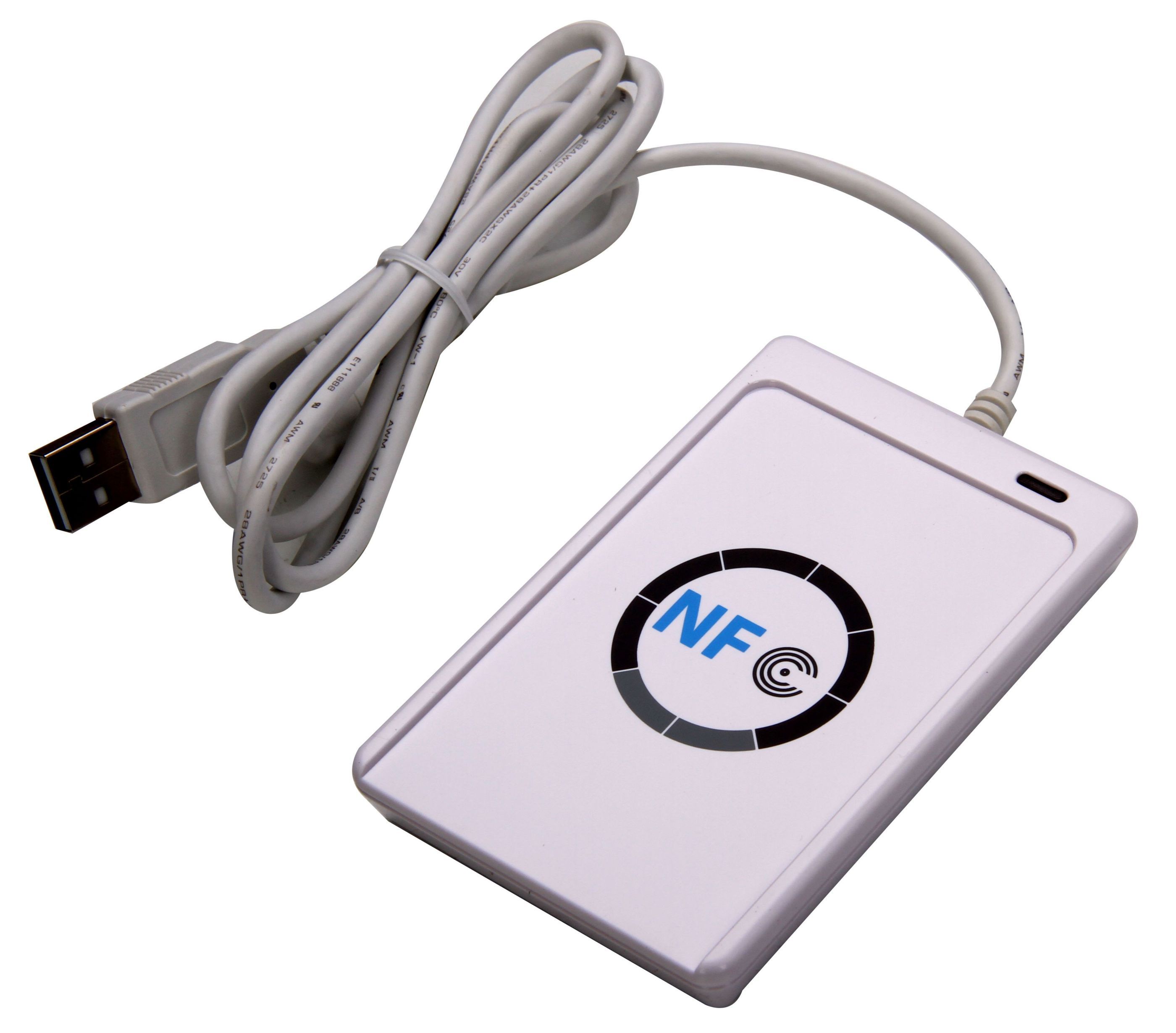

ACR 122 NFC contactless smart card reader(YS-632)

∨ ACR122U is a PC-linked contactless smart card reader/writer developed on the 13.56MHz Contactless (RFID) Technology and followed the ISO/IEC18092 Standard for Near Field Communication (NFC), supporting not only ISO 14443 A and B cards but also NFC and FeliCa contactless technologies.

∨ The ACR122U is a USB Plug and Play device with CCID compliance. By making use of up to 424 Kbps for NFC Tag access and full USB speed of up to 12 Mbps, the ACR122U can read and write faster and more efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use. Operating distance can be extended on request by adding an RF boaster, so the ACR122U is suitable for logistics and supply chain management.

∨In order to increase the security level, the ACR122U can be optionally integrated with an ISO7816-3 SAM slot. In addition, the ACR122U is available in module form for easy integration into bigger machines, like POS terminals, physical access devices and vending machines.

∨ With excellent performance and flexibility, you can experience the convenience and benefits offered by the ACR122U.

Feature

USB Full Speed (12 Mbps)

USB PnP

Bi-Color LED

Built-in Antenna

NFC Reader

ISO/IEC18092 (NFC) compliant

NFC Tags Access Speed = 424 kbps

Contactless Smart Card Reader

Support FeliCa card

Support ISO 14443 Type A & B cards

RoHS Compliant

User Controllable Buzzer (optional)

SAM Socket (optional)

Specification

Dimensions	98 mm (L) x 65 mm (W) x 12.8 mm (H)
Weight	70 g
Interface	USB Full Speed
Operating Distance	<= 50mm
Supply Voltage	Regulated 5V DC
Supply Current	200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature	0-50°C
Operating Frequency	13.56 MHz
Operating System Support	Windows 2000, 2003, XP 32, XP64, Vista 32 and Vista 64
Packing details	1pc/box

Application

Home Banking and Home Shopping

E-commerce

Checking the balance of electronic purses

Network access control

Customer Loyalty Program

Identification and Authentication

Ticketing

Online gaming

Parking and toll collection

Automatic Fare Collection

Public Transportation Terminals

Physical Access Control

Time attendance

Vending machines

Contactless public phones

Logistics and supply chain management
