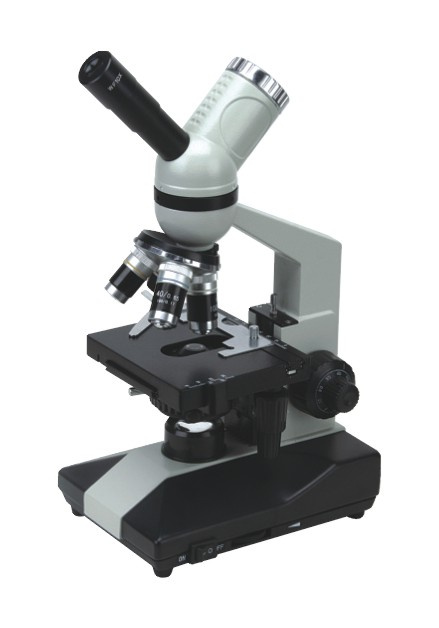

Product Specifications
| Prod Model: |
XSP91-06E-1DN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Aluminum Alloy |
| Principle: |
Optics |
| Mobility: |
Desktop |
| Number Of Cylinder: |
Monocular |
| Magnification: |
>1000X |
| Shape: |
Rectangular Prism |
| Type: |
Digital Microscope |
| Principle Of Optics: |
Digital Microscope |
Product Description
45mm DIN Achromatic Objective:4X,10X,40X(S),100X(S,Oil);
Wide Field Plane-Scope Eyepiece:WF10X,(optional WF16X);
Total Magnification:40X-1600X;
Monocualr digital head (built-in high quality color camera);
45º Inclined,360ºRotatable;
Resolution:1.30M or 3.0M Pixel;
Capturing Micro-images and showing Live Video On PC Screen;
Saving still images as BMP,JPG files;
User-friendly sophisticated micro-image process software for previewing,measuring,comparing,counting,saving and deleting;
Double Layers Mechanical Stage:110X125mm,Moving range X-Y:60X20mm;
Ø2-Ø30mm Iris Diaphragm And Ø32 Filter,ABBE Condenser:N.A. 1.25;
Coarse Focusing Adjustable Mechanism:14mm;
Built-in illumination optional:Halogen Lamp 6V/20W,Incadescent Lamp 20W,Fluorescent Lamp 5W,LED Lamp 1W,LED Lamp with Rechargeable Device;
Net Weight/Set:2.2kg;
Package:4 Sets/Carton 54X39X40cm;
Gross Weight/Carton:11kg |
the company's core advantage:
1,30 years' experience in producing microscopes
2,Home-grown developing, designing, production, exporting
3, Advanced equipments, first-class technology and enterprising employee

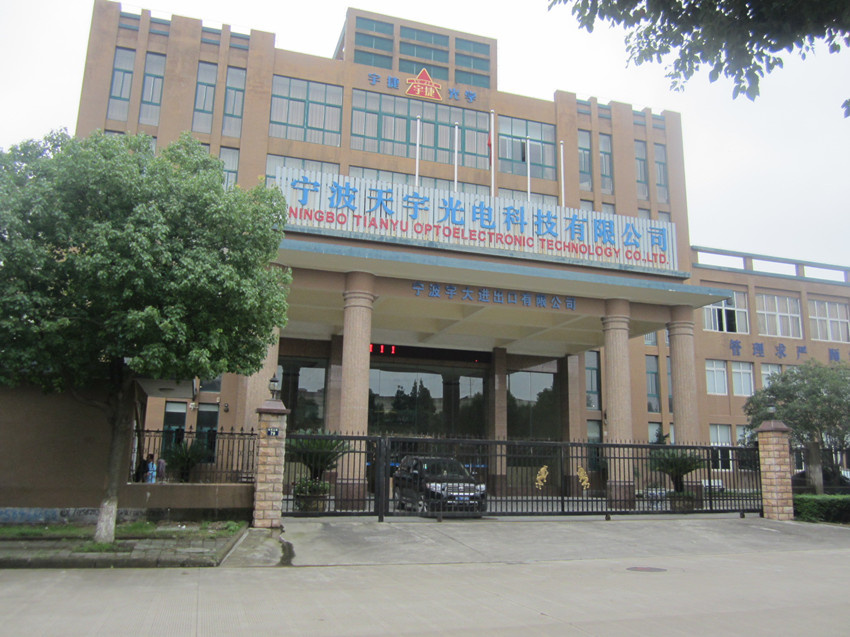

factory

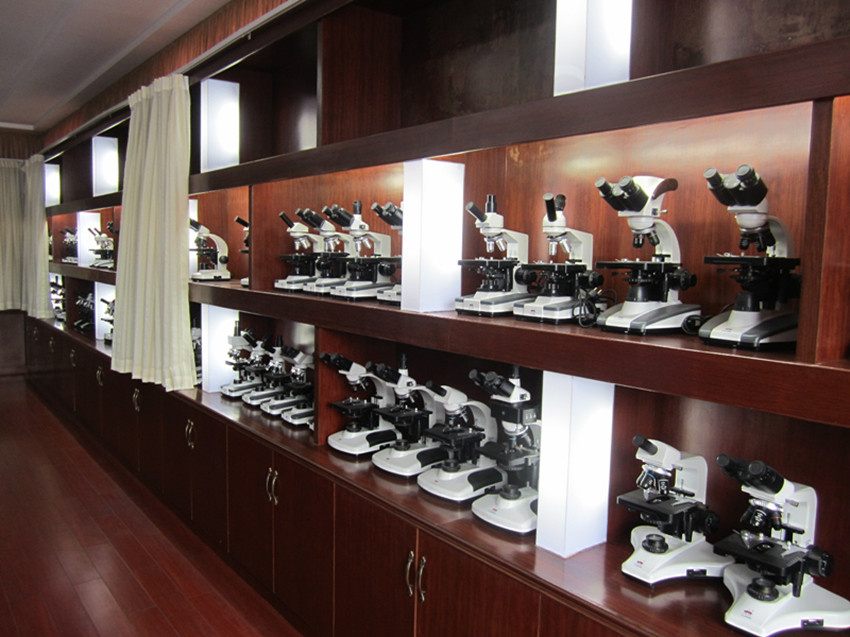

sample room

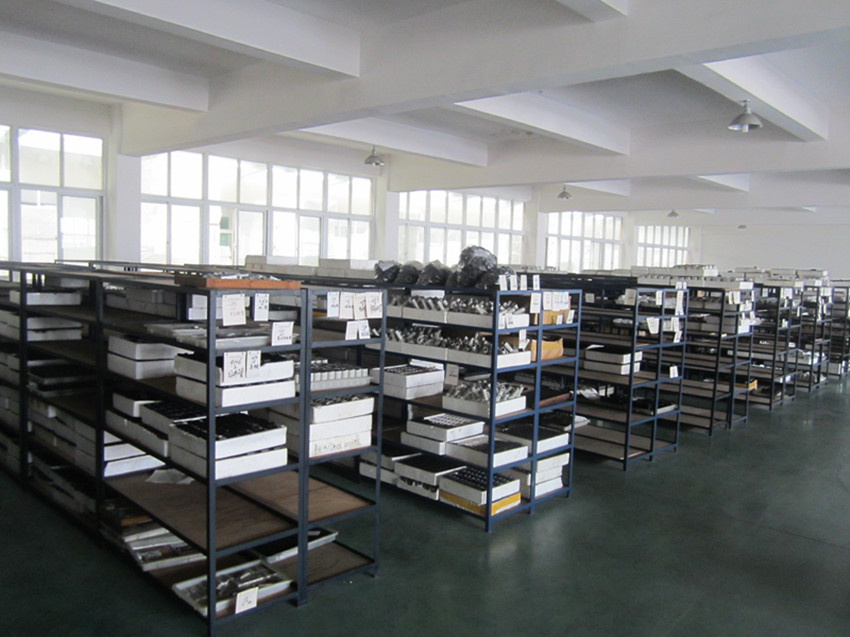

workshop
Contact UsTel:86-0574-86110738/86110758
Fax:86-0574-86101768
Web:www.yujie.com
Add:No. 79, Putuoshan Road, Daqi, Beilun Dist, Ningbo, Zhejiang, China
Ningbo Yujie Optical Instruments Co., Ltd. is one of the professional manufacturers and distributors of optical microscopes in China. Since 1978, we have obtained abundant experience for designing, manufacturing and managing of microscopes and have been a full set of quality system. In 1993, we obtained the Export License from the Government. Our company has passed the evaluations of ISO9001 and CE certifications. At present, our company has advanced equipment, first-class technology and enterprising employee. Over 200, 000 units of microscopes are manufactured and sold every year. 98% of them are exported to the world.
In 2003, we registered a new company of Ningbo Yuda Import & Export Co., Ltd. It is not only all in charge of exporting microscopes, but also dedicating to supplying the products of excellent quality, reasonable price and best service to factories, educational sectors, hospital sectors and laboratories around the world. "Promoting innovation" and "customers first" are our two principle. We are always devoting ourselves to developing new products and improving product quality.
On the basis of the equal with each other, mutual benefits, friendly cooperation, reliable quality, good reputing, competitive price and efficient working style, we have established extensive connections and good relationships with our esteemed customers worldwide. We are looking forward to taking a good and friendly cooperation with all the domestic and abroad enterprises for a brilliant future together.
