Product Specifications
Product Description

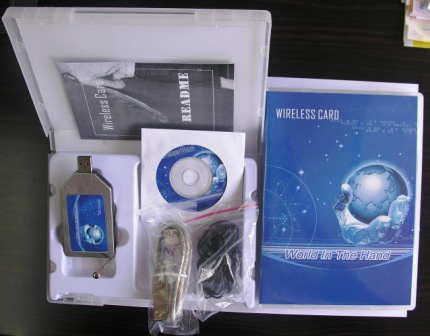

M 200704 Wireless EDGE/GPRS/GSM Modem
Features:
1. Browse the Internet
2. Send and Receive E-mails
3. Voice and Two-way SMS
4. Fax support
Technical Specifications:
1. Quad-Band GSM850/ GSM900/DCS1800/PCS1900 compatible; GSM 850 MHz band Transmit, Receive: 824-849MHz, 869-894MHz; Power: 500 mW (+27 dBm) /2W (+33 dBm) GSM 900 MHz band Transmit, Receive: 880-915MHz, 925-960MHz; Power: 500 mW (+27 dBm) /2W (+33 dBm) DCS 1800 MHz band Transmit, Receive: 1710-1785MHz, 1805-1880MHz; Power: 400 mW (+26 dBm) /1000 mW (+30 dBm) PCS 1900 MHz band Transmit, Receive: 1850-1910MHz, 1930-1990MHz; Power: 400 mW (+26 dBm) /1000 mW (+30 dBm)
2. EDGE multi-slot class 12 (up to 4TX, 4RX, 5 total), up to 460.8kbps
3. External antenna
4. Control via AT-Command (GSM 07.07, 07.05 and enhanced AT Commands)
5. Interface: USB
6. SIM application toolkit
7. Voltage range 3.4V-5V
8. Low power consumption
9. Size: 88 x 54 x 9 mm Weight: 40g
10. Operation Temperature: -20 dC to +60 dC
11. Restricted Operation temperature: -25 dC to -20 dC and +60 dC to +70dc
We are China, Hong Kong and Bangladesh based trading company.
We deal with all kind of trading. But our major is electrical, electronics, automobiles and chemicals.
We hope we can offer good service to all.
