Product Specifications
| Prod Model: |
MSR805 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Read Tracks: |
1&2&3 Tracks |
| Size: |
212*64*63mm |
| Indicator Light: |
3 |
| Read/Write/Rewrite/Copy/Erase: |
Yes |
| Hico Card Compatible: |
Yes |
| Loco Card Compatible: |
Yes |
| Compatible With: |
MSR206, MSR606, MINI123 |
| Free Test Card, Clean Card: |
Yes |
| Software: |
Free |
| Weight: |
1.5kg |
Product Description
MSR805 Manual Swipe Magnetic Card Reader/ Writer is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications. In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR805 reader/ writer, comp MSR606, MSR206
- Introduction: The MSR805 series is designed to read and/ or write high or low coercivity magnetic cards, which can encode and verify up to 3 tracks of data simultaneously, it communicates with a host computer or other terminal using a usb interface.
MSR805 USB Magnetic Stripe Card Reader and Writer, magbetic card reader.
Speed of pulling card: 10~120cm/s
Magnetic Card Standard: ISO7810/7811
Recording density:
1st track: 210BPI
2ND track: 75BPI; 210BPI
3rd track: 210BPI
Recording character:
1st track: 76 characters
2ND track: 37/104 characters
3rd track: 104 characters
Life of magnetic head: More than 800, 000 times
Power supply: DC± 24V reading: : ≤ 350mA writing: : ≤ 600mA
Work circumstance: Work temperature 0~+45C
Work humidity 10%~90%R
- Accessories of MSR805:
Make sure all the following accessories are contained in your package:
1. Switch power supply, AC 110~240V in / DC 24V, 2.2~3A out.
2. Power cord.
3. Signal cable (USB).
4. Utility disk (A/P S/W)
5. Programmer's manual
Specification:
- Reading/Writing magnetic stripe card complied with ISO formats
- Reading/Writing Drivers Licenses
- Read/Write High & Low Coercive (300~4000Oe)
- High/Low Coercivity encoding circuitry selectable on screen
- Program software for Windows 98/Me/XP/Vista/windows 7
- Programming software for various read/write performance
- Can be use directly with MiniDx3, Mini123ex etc
- Pure USB directly
- +9VDC, 2A Max external power adapter attached
- 100% USER Satisfy And Exeba Software Support
- Dimensions of Box 290(L) x 180(W) x 100(H) mm
Electrical:
Power requirements
+9VDC +/- 5%
Consumption
Typical 350mA Max. 600mA plus for each writing track
Power supply
External switching power 9V/2A
Communication
Standard USB
Ripple
50mVp-p or less
Dielectric strength
500 VDC for 1 minute
- Performance:
Read card
Track1 Track2 Track3
Bit per density
210 bpi 75/210bpi 210 bpi
Coercive force
Read/write 300-4000 oe Mag. Card
Card thickness 0.76-1.2mm
Read speed
STD card Jitter +/-15% Amp. 60%
5-55ips 5-50ips 5-50ips
Write speed
5-30ips
Write jitter
Interval < +/- 10%, Sub-interval < +/- 12%
Error rate
Read < 0.5% Write < 0.8%
Head life
Min. 500K swipes for both read/writer

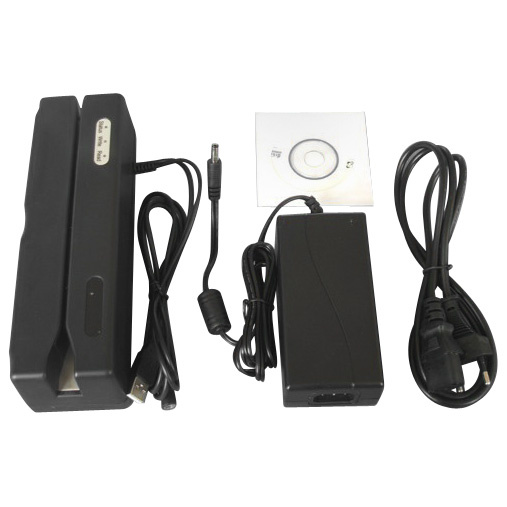

- Packing:
MSR605
Software CD
Power adaptor
USB cable directly
English Manual(in CD)
1 clean Card
1 Test Magnetic Card
- Warranty:
One year after purchase of MSR805, any alteration and/or erasure or modification of the MSR805 will void the warranty.
