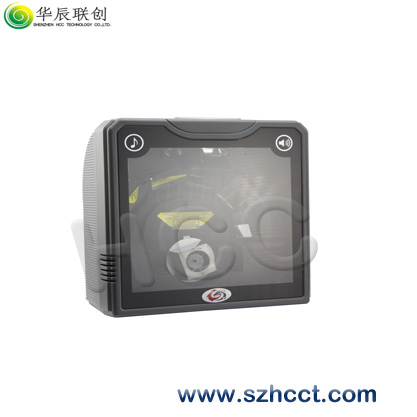

USB Omni-Directional Barcode Scanner (Hcc2040)
Product Specifications
| Prod Model: |
HCC2040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interface: |
RS232,USB |
| Light Source: |
Visible Laser Diode 650nm |
| Scan Pattern: |
24 Lines Omni Directional:6 Fields of 4 Parallel L |
| Print Contrast: |
30%@Upc/Ean 100% |
| Minimum Resolution: |
5mil@PCS90% |
| Depth Of Field: |
0-200mm for 0.33mmupc/Ean 100% |
| Host System Interfaces: |
USB,RS232,Keyboard Wedge |
| Visual Indicators: |
Two Color LED(Blue & Red) |
| Beeper Operation: |
Programmable Tome & Volume |
| Size: |
L x W x H: 152mm X 152m X 75mm |
Product Description
Omni-directional Barcode Scanner-- HCC2040
Feature24 laser scan lines in 6 directions
Scan rate up to 1800 scans per second
Self-developed decoder chip & hardware decode
Suit for Keyboard, RS-232, USB interface port
Powerful performance on decode capability
IP54 standard
Larger scan window
Blue LED, high tone indicator
|
PERFORMANCE PARAMETER |
|
Light Source |
Visible Laser Diode 650nm |
|
Scan Pattern |
24 lines Omni directional:6 fields of 4 parallel lines |
|
Scan Speed |
1800 scans/s |
|
Print Contrast |
30%@UPC/EAN 100% |
|
Minimum Resolution |
5mil@PCS90% |
|
Depth of Field |
0-200mm for 0.33mmUPC/EAN 100% |
|
Host System interfaces |
USB,RS232,Keyboard Wedge |
|
Visual Indicators |
Two color LED(blue & red) |
|
Beeper Operation |
Programmable tome & volume |
|
MECHANICAL PARAMETER |
|
Size |
L x W x H: 152mm x 152m x 75mm |
|
Weight |
560g |
|
Material |
ABS+PC |
|
Cable |
Standard 2M straight |
|
ELECTRICAL PARAMETER |
|
Voltage |
9 Volts |
|
Static Current |
430mA |
|
Laser Class |
Meet the Grade I National Criteria for Laser Safety |
|
EMC |
CE & FCC DOC compliance |
|
ENVIRONMENTAL PARAMETER |
|
Operating Temperature |
0 . C to 45 . C |
|
Storage Temperature |
-20 . C to 60 . C |
|
Humidity |
5% to 95% relative humidity, non-condensing |
|
Light Levels |
Daylight, 10000 Lux |
|
DECODE CAPABILITY |
|
|
UPC/EAN/JAN,UPC/EAN with supplementary, JAN 8 & JAN 13, ISBN/ISSN, EAN, Code 39, Code 39 with full ASCII, Code 93, Code 128, Codabar (NM7), trioptic Code 39, MSI/Plessy, Interleaved 2 of 5(ITF), Addendum 2 of 5. IATA Code, China Postal Code, Code 32, industrial 2 of 5, Standard 2 of 5 ,discrete 2 of 5, Matrux 2of 5, Code 11, UPC/EAN RSS, RSS ariants. |
