USB RS232 Check Scanner with CE Certification
Product Specifications
| Prod Model: |
HCS200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
3kg |
| Size: |
155(W) × 325(D) × 174.5(H)Mm |
| Scan Part: |
Duplex |
| Sensor: |
Cis( Contact Image Sensor) |
| Driver: |
Twain |
| Type: |
Data Collector |
| Certification: |
CE |
Product Description

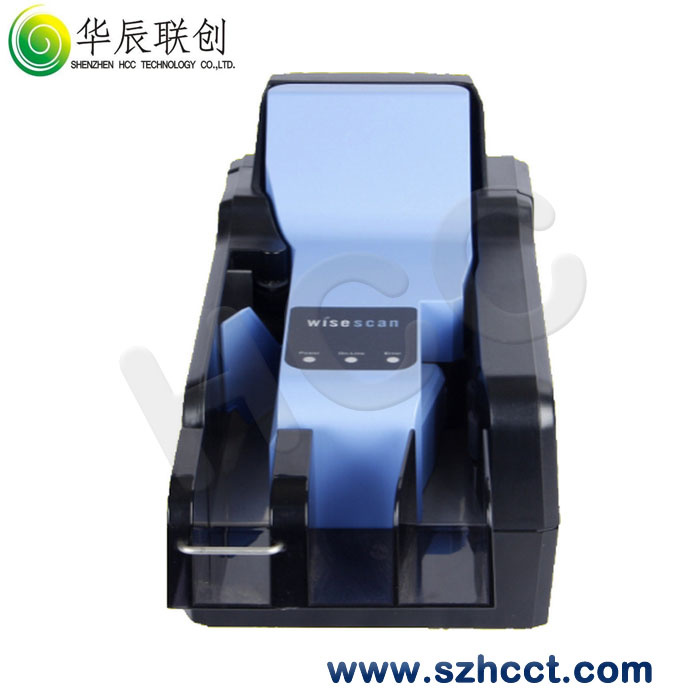

Check Scanner--HCS200
Feature
Industry-leading performance to size ratio with rapid scanning speeds of up to 90cpm or 180ipm;
High-precision magnetic head for reading E13B or CMC7 MICR codes;
Integrated ISO 7810 ID-1 card image scan;
Compact dimensions make it ideal fit for teller counters and cashier windows;
Built-in, pre-scan imprinter for audit trail requirements;
User-friendly, quiet operation enables teller sales and service productivity;
Three scanning modes - including 24-bit Color, Black and White, and Grayscale;
Infrared Double Feed Detection for reliable handling of mixed-item batches, including personal/business checks, document carrier envelopes, and deposit slips;
Plug-and-play connectivity with Hi-Speed USB interface.
| Item | Specifications |
| Available Doc | Height | 54~106mm |
| Length | 80~235mm |
| Weight | 60~120g/m2 |
| Scanner | Scan part | Duplex |
| Sensor | CIS( Contact Image Sensor) |
| Resolution | 100/200/400dpi |
| Color | 8bit Grey, 1bit B/W, 24bit True Color |
| File Type | TIFF G4, JPEG, BMP |
| Speed | 90cpm(180ipm) : 200dpi gray
40cpm(80ipm) : 200dpi color |
| Driver | Twain |
| Remarks | -Automatically control the thickness/possible to scan card, ID card
-Double Feed Detection, Dropout Color
-Imprinter, MICR Reader |
| MICR reader | Code | E13B and CMC7 |
| Using head | Magnetic head |
| Interface | USB2.0/USB B Type, RS232C, Ethernet (optional) |
| Power | Adapter Input | AC 100~240V, 50~60Hz, 1.75A |
| Adapter Output | DC 24V/1.75A |
| Consumption | 50w max. |
| Current | 1.5A max. |
| Sheet specs | Thickness | 0.09-0.12mm |
| Length | 80-235mm |
| Height | 54-108mm |
| Feeding Docs | Max 100sheets |
| Light Source | Three color(RGB) / LED |
| Scan mode | B&W, Gray, 24bit Color |
| Scan resolution | 200 - 400dpi |
| Speed | B&W | 80ppm/200dpi, 35ppm/400dpi |
| Gray | 80ppm/200dpi, 35ppm/400dpi |
| Color | 25ppm/200dpi, 10ppm/400dpi |
| Size | 155(W) × 325(D) × 174.5(H)mm / 3.05kg |
| Environment | Operating | 10~40C /20 ~ 80%RH, non condensation |
| Storage | -20~70C /5 ~ 95%RH, non condensation |
