Product Specifications
| Prod Model: |
MCL-KT-6200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usedhematology Cell Counter: |
Medical Equipment |
| Cell Counter: |
Test Principle |
| Cell Counter Automated Cell Counter: |
Test Flow |
| Hematology Analyzer Reagent: |
Quantity Technology |
| Throughput: |
35 Samples/Hour |
| Parameter: |
3 Part Differentiation |
| Calibration Mode: |
Auto Mode and Manual Mode Are Selectable |
| Sample Volume: |
9.8UL Peripheral Blood or Venous Blood |
| Clot Clear: |
High Voltage Burn |
| 9.8UL Peripheral Blood Or Venous Blood: |
Newborn,Children,Male,Female and Universal |
Product Description

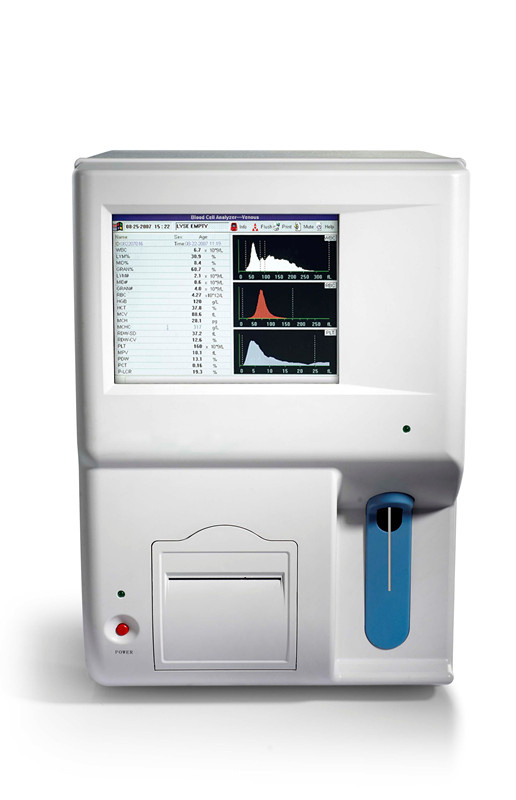

usedhematology cell counter Cell Counter Automated Cell Counter
Model: MCL-KT-6200
Test principle: electrical resistance for counting and SFT method for HGB
Test flow: fully auto and the blood don't need dilute or other process
Quantity technology: ultra sound quantity method, resistance from disturb
Clot clear: high voltage burn and high pressure flush
Parameter: 3 part differentiation of WBC,20 parameters + 3 histograms
Sample volume: 9.8ul peripheral blood or venous blood
Throughput: 35 samples/hour
QC mode:X , X-R, X-B, L-J, auto draw and print QC figure
Language: English
Calibration mode: auto mode and manual mode are selectable, provide original calibrator and control
Reference range type: newborn,children,male,female and universal
Reagent: provide original reagent
Memory: save more than 30000 sample's detail results including histograms
Display: Large colour LCD, show all parameters and histograms at same screen
Input and output: keyboard,mouse,Parallel Port, RS232 serial port, can be connected to computer
Printer: Inner thermal printer, can be connected to external computer and printer
Working Environment: Temperature:18°C~35°C;Humidity:40%RH-80%RH
Voltage: AC 175 V~265V, Auto adapt according to the input voltage
Dimension: 300mm* 400mm* 440mm(L*W*H)
Net weight: 17Kg
Performance
Item |
≤Precision, CV |
WBC |
≤2.0% |
RBC |
≤1.9% |
HGB |
≤1.9% |
MCV |
≤0.4% |
PLT |
≤4.0% |
Carry over |
WBC≤2%,RBC≤1%,HGB≤2%,PLT≤2% |
Technical parameter of mecan hematology analyzer
Sample volume: normal mode: 9.8ul, dilution mode: 20ul
Aperture diameter: 70um
Quantity technology: ultra sound quantity method, resistance from disturb
Throughput: 35 samples/hour
Clot clear: high voltage burn and high pressure flush
Calibration mode: auto mode and manual mode are selectable, provide original calibrator and control
QC mode:X , X-R, X-B, L-J, auto draw and print QC figure
Display: Large colour LCD, show all parameters and histograms at same screen
Memory: save more than 30000 sample's detail results including histograms
Input and output: keyboard, mouse, Parallel Port, RS232 serial port, can be connected to computer
Printer: Inner thermal printer, can be connected to external computer and printer
medical hematology analyser matology machine test hematology analyzer reagent
Test parameter
WBC Histogram RBC Histogram PLT Histogram
Welcome to contact MeCan Medical for Auto Hematology Analyzer.
