Product Specifications
| Prod Model: |
CL-KJU-C6A04 (Black) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 50PCS/Box: |
500PCS/Carton |
| Certification: |
CE |
| Condition: |
New |
| Support Network: |
Ethernet |
| Usage: |
Workstation |
| Type: |
Wired |
| Information Content: |
Data |
Product Description

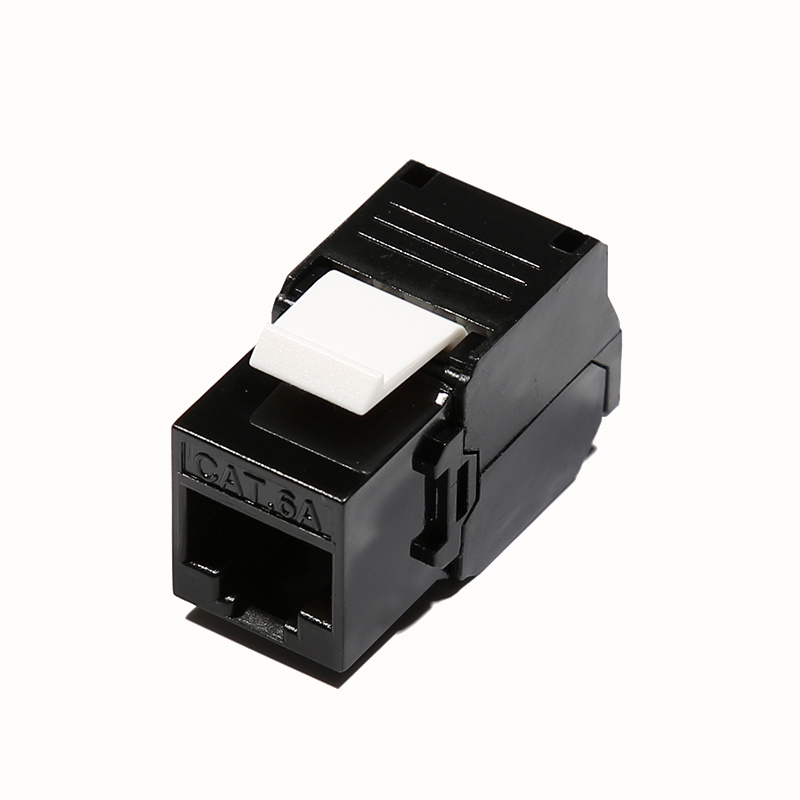

UTP Cat. 6A Keystone Jack
Sell Point:
01. UTP Cat. 6A Keystone jack 180 degree toolless, it's able to cut the wires easier and no need any extra punching down tool.
02. Much helpful for the easier and faster installation.
03. It's well match with Blank patch panels and Mounting boxes and Faceplates.
04. Both Cat. 6 & Cat. 5e are available!
05. Various colors are option.
Main Description Of The Product:
1. Keystone Jack, CAT6A, UTP Type, 180° Punching direction, for Connecting application of communication ports in working area.
2. A compact & ingenious designing, with the punching sequence direction Marks on the sides of keystone jack. That can provides a correct and quick Guide for punching and connectiong operation. And the fastener hats will Make sure the cable can be fixed reliably in the IDC clips.
3. According to the standard of ISO/IEC 11801: 2002 class & ANSI/TIA/EIA 568- B. 2-1 CAT. 6, T568A punching sequence and T568B punching sequence Are both compatible.
4. Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat. 5e cables.
5. Fitting for the Cat. 6A general cable distribution system. Compatible for Cat. 6 And Cat. 5e systems.
Technique Characteristics:
1. Material of plastic parts: PC UL94V-0
2. Material of the FCC connectors' 8 pin: Phosphor bronze with golden Cladding. Insertion dependability: 750 times.
3. Material of the IDC clips: Tinned phosphor bronze with golden plated 3U\6U\15U 30U\50U at option. Fitting for 22AWG/23AWG/24AWG Cables. Punching short type.
4. Dependability: 750 times
5. Standard 110 punching tool.
6. Testing condition of transimitting capability: 500MHz
