Product Specifications
| Prod Model: |
CL-U48P-C6A01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Support Network: |
Ethernet |
| Usage: |
Workstation |
| Type: |
Wired |
| Information Content: |
Data |
Product Description

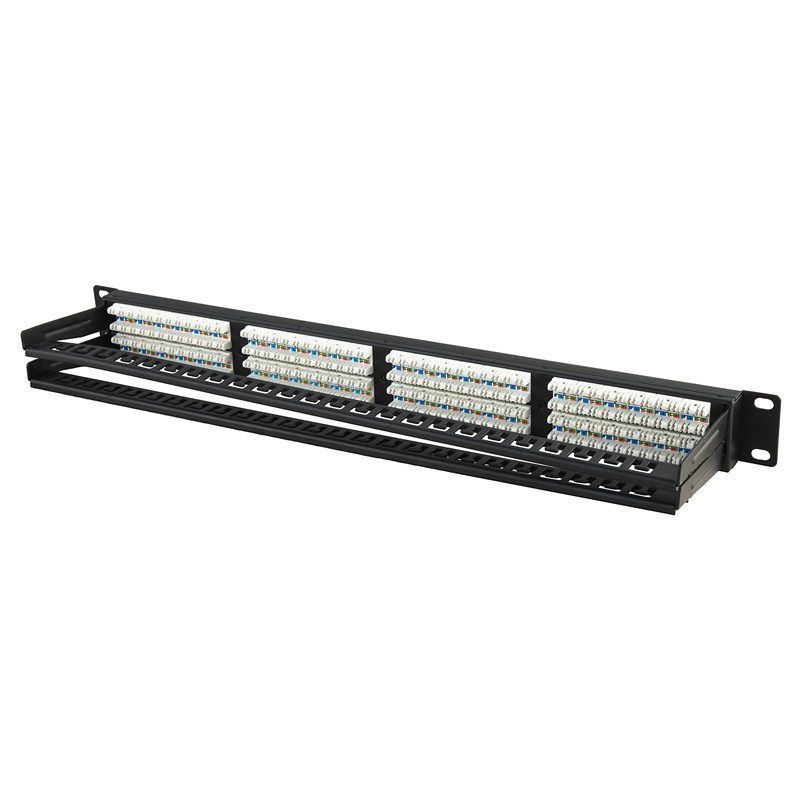

UTP 1U Cat. 6A Patch Panel
Sell Point:
1.1U 48 Port high density patch panel, 50% space can be saved.
2. New structure of IDC with much better performance.
3. Cat. 6/Cat. 5e are available
4. Front surface dustproof structure is optional.
Main Description:
1.48 ports patch panel, Cat. 6A UTP type. The structure of each port of this Patch panel is same and unalded.
That structure makes sure that the performance of each port is consisitent.
2. The cable manager is combined in this patch panel. All kinds of cables with Different dimensions can be fixed on the patch panel.
3. According to ISO/IEC 11801: 2002 CLASS EA and ANSI/TIA/EIA/568B. 2-10 Cat. 6 standard. T568A punching sequence and T568B Punching sequence are both compatible. Fitting for horizontal distribution in The equipments room and equipments connecting.
4. Connecting: FCC port for Cat. 6A UTP patch cord and IDC for horizontal Distribution calbes.
5. Compatibility: Compatible for UTP Cat. 6 or Cat. 5e\Cat. 5 general cable Distribution systems.
Technique Characteristics:
1. Entire high-carbon steel outer frame, with plastic powder cladding.
2. RJ45 jack frame material: PBT, golden clad phosphor bronze pins; Shielding shell of the RJ45 jack; Brass housing with nickel plate; IDC clip: Tinned phosphor bronze pins.
3. Fitting for 22AWG/23AWG/24AWG cables, Punching dependability: 750 Times.
4. Cabling sequence: T568A & B.
5. Punching tools: Standard 110 or LSA type punching tools.
6. Testing condition of transmitting capability: 500MHz.
