Hangzhou Risun Cable Co., Ltd. >> UTP CAT6 Solid Cable/LAN Cable/Network Cable

UTP CAT6 Solid Cable/LAN Cable/Network Cable

Name: UTP CAT6 Solid Cable/LAN Cable/Network Cable
Brand: China-Manufacturer-Directory.com
SKU: 670183455
Availability: InStock
Rating: 4.4 (45 reviews)

Supplier:	Hangzhou Risun Cable Co., Ltd.
Price:	US $ 20-70/Box
Min Order:	10000/Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	utp cat6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	23AWG Bare Copper
Insulation:	1.0HDPE
Filler:	Yes
Ripcord:	500d, 1000d
Jacket:	PVC/PE/Lszh
UV, Jelly, Fr:	Available
Indoor/Outdoor:	PVC,PE,PVC+PE,PVC+PVC
N.W.:	8.5kgs
G.W.:	10kgs
No.of Conductor:	8 Core/ 4pairs
Type:	Cat 6
Certification:	RoHS
Application:	LAN Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC,PE,Lszh

Product Description

Risun is a manufacturer and exporter of high quality Lan cable/Network cable,coaxial cable, alarm cable and telephone cable in China.

95% of our goods for the export market. 17 years of experience in this field makes us very familiar with export handling.

We have customer in more than 40 countries all over the world.

In the past 17 years, we have already get ETL, CE, Rohs, ISO9001 certification.

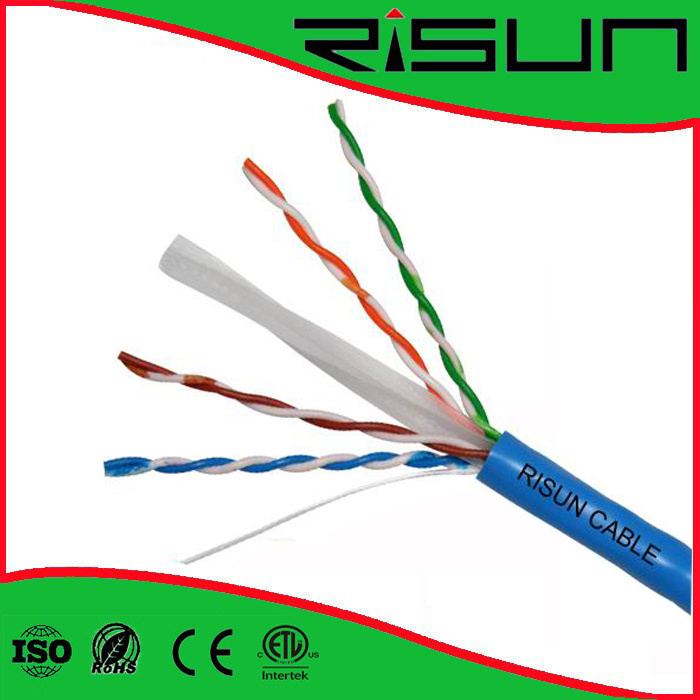

UTP CAT6 Solid Cable/LAN Cable/Network Cable

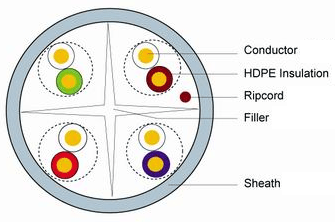

Configuration:

1. Conductor: 0.57±0.01mm(23AWG) Bare copper

2. Insulation: 1.0±0.03mm HDPE
3. Filler

4. Ripcord

5. Sheath: 6.3±0.3mm PVC (PE, LSZH)

Options: Jelly Compound, Jacket: UV, FR, RoHS complied.

Mechanical Properties:

Elongation	Min. 300%
Temperature Range	-20 up to +75° C
Tensile Strength	Min 1.68kg/mm²

Electrical Properties:

Conductor Resistance	Max. 9.38 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Capacitance Unbalance	Max. 330pF/100m
Impedance	100+/-15 ohm
Spark Test	2000V
Velocity of Propagation	67%

Technical Performance:

	Attenuation	RL	Next	PS Next
(Mhz)	(dB/100M)	(dB)	(dB)	(dB/100m)
1	2.0	23	74.3	71.8
4	3.8	23	65.3	61.2
10	6.0	23	59.3	53
16	7.6	23	56.2	48.4
20	8.5	23	54.8	46.5
31.2	10.7	23	51.9	41.3
62.5	15.1	23	47.4	31.5
100	19.1	23	44.3	24.1
125	21.3	21	42.8	20.5
155.5	23.8	21	41.4	16.6
175	25.3	21	40.7	13.9
200	27	21	39.8	10.8
250	32.6	19	38.3	5

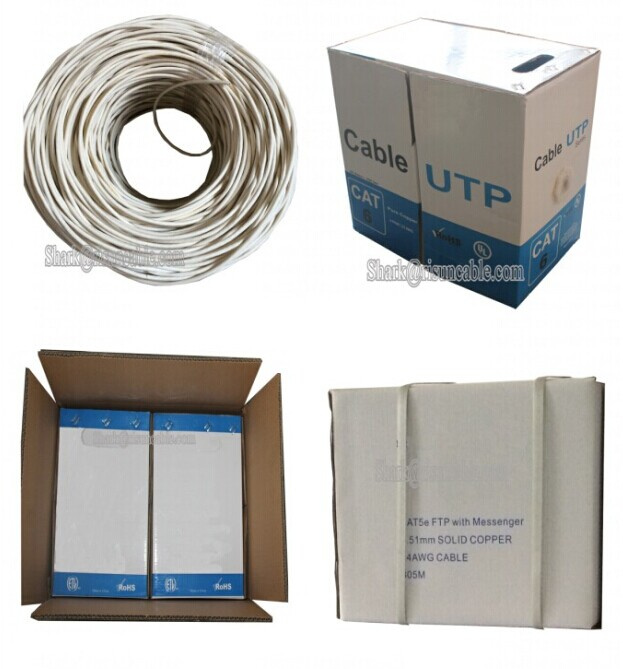

Packing:

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.

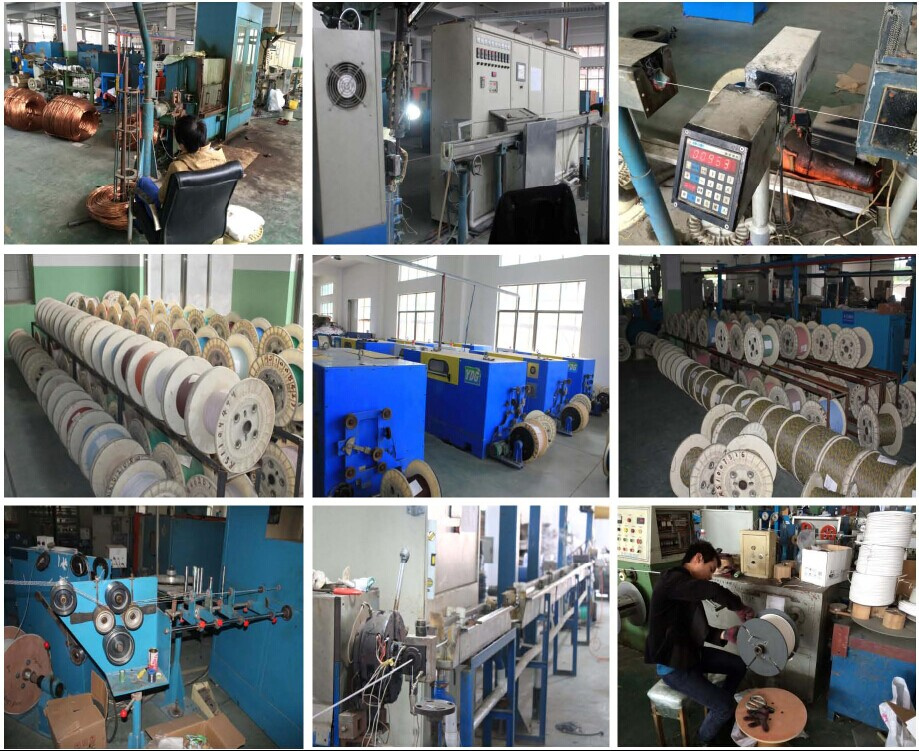

Production line:

RISUN has two complete production line. 10 thousands box of UTP Cat5e cable per month.

WELCOME TO RISUN

Our Tenet: If we can not be the best, we be the most suitable.

Hangzhou Risun Cable Co., Ltd. Specializes in manufacturing high quality Network-Cable, Telephone wire, and coaxial cable from China. Our company is located at west suburb of Hangzhou, providing convenient access to Shanghai.

Our main products are UTP/FTP Cat5e, CAT6, Telephone Cable, Coaxial Cable, Alarm cable, Patch cord etc. We implement a mature quality control system, ensure that all of our products are certified CE, which certifies that a product has met European Union health, safety, and environmental requirements, and RoHS, ISO9001. In addition, we also supply OEM service to our international clients.

We welcome your visiting to our company. And hope we can be your faithful cable supplier in China and cooperate with you in a long term. If you are interested in our products, please contact us through E-mail, fax or telephone. We will certainly pay close attention to your inquiry and reply you in time.
