Product Specifications

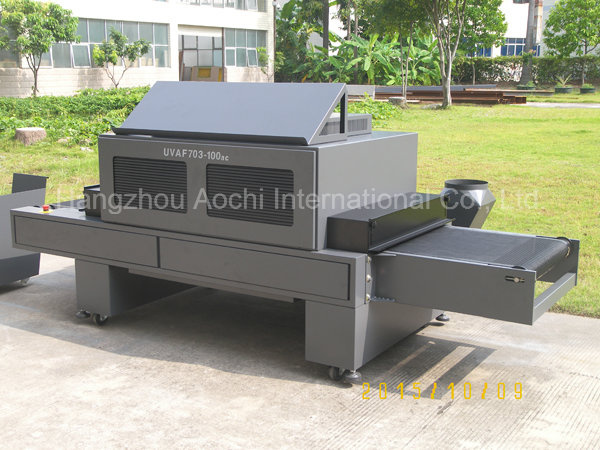

| Prod Model: |
UVAF703-100AC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Drying Type: |
Cold UV Drying System |
| Printing Color: |
Double-Color Machine |
| Printing Speed: |
8000 |
| Type: |
Postpress UV Drying Machine |
| Printing Paper Size: |
700mm Width |
| Usage: |
PVC,PC Material Offset Printing, VIP Card..... |
Product Description
This machine can be used in UV printing, PVC,PC material Offset printing, VIP card, Bank cards, ID card, work ID card, Sensor card, Paper package etc( PC,PVC, Paper sheet)
Feature:
1.Four lamp design, flat surface UV curing;
2. Low temperature with urgent stop key more safety operation;
3.UV radiation, press key operation panel, special design for Heidelberg SM72, SORMZ,GTOZ....
4.offset printing machine(for four color UV ink curing one in all);
5.This model Curing machine Can content 12000pc/Hour;
6.Adopts air cooling system,2pcs fan;
Parameters:
UV lamp: 10.0kwx4pcs
UV lamp dimension: total length 860mm,arc length 730mm
UV main wave length: 365mm
Controlling way: by switch
Speed range: 10-70m/min, speed meier display
Transfer belt: Teflon belt
Transfer belt width: 700mm
Color: gray
Power supply: 380VAC 50HZ 3P
UV section
Lamp type: High pressure UV mercury lamp(2pcs)
Power of Lamp: 10kw,6kw.
Power density: 120w/cm
Arc length: 500mm
Main wave length: 365nm
Lamp lifetime: 800-1000 hours
Tube material: Imported quartz glass
Light intensity: 75%/100% adjustable
Lamp height: 50-120mm adjustable
Loading/Unloading port height: 0-100mm adjustable
Reflector: polished aluminum reflector
Cooling way: Forced air cooled
Conveyor section
Conveyor speed: 0-10m/min step-less adjustable
Conveyor belt material: Teflon(wear-resistant, anti-UV)
Belt width: 700,500mm(customized)
Conveyor roller: A smooth surface and no burr galvanized roller
Control section
Auto shutdown function: machine will shut down automatically 3-5mins later,
after turn off the lamp.
Wire arrangement: International standard
Power supply: 380V AC 50HZ 3Phase five-wire (customized according to the real requirement)
Control panel
Button Start: to make the machine ready to work
Lamp on/Lamp off: to start the lamp
Speed control: adjust speed
Intensity: 75%/100%
Indicator light: Power display
Current meter: display each lamp's current
Timer: count the lamp total working time
Shell Outlook
Material: Bended welded by 1.5mm thickness cold iron board, with spray plastic in the surface
Appearance: Computer white and black
Dimension:
UVAF704-100YW:700mm,10kwx4pcs: 3450mm*1950mm*1500mm(UV machine)+1350mm*900mm*2300mm(electrical cabinet)
UVAF703-100AC:700mm,10kwx3pcs:
3150mm**1950mm*1500mm(UV machine)+1350mm*900mm*2300mm(electrical cabinet)
UVAF503-60NCS: 500mm,6kwx3pc
3150mm**1550mm*1150mm(UV machine)+950mm*850mm*1800mm(electrical cabinet)
Hangzhou Aochi International Co., Ltd. is professional exporter and manufacturer of printing and packaging and plastic machines & materials in China, set by jointed together of more than fifteen manufacturers.
In order to provide all around products and better service to our increasing customers, we adopt latest information technology. Using carefully selected local or overseas raw materials & components, most of our machine already got CE approved. Our engineer team provides design realization service for your every requirement, and employ professional trained staff, so we have quick response to different customer' S enquiry everyday.
If you are looking for relative machines and materials from China, we sincerely hope we can be your best choice! Let' S work together to build a much brilliant future now!
