Supplier: | Shanghai Wer-China Industry Co., Ltd. |
---|---|
Price: | US $ 26000-31800set |
Min Order: | 1set |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |
Prod Model: | WER-EF3218UV |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Keyword: | Wood Printer |
Max Media Size: | 1.6 M * 2.8 M for Sheet to Sheet |
File Format: | Bitmaps, Tiff, JPEG, Postscript 3, EPS, Pdf, etc. |
Color: | Cmyk+W & Double Cmyk |

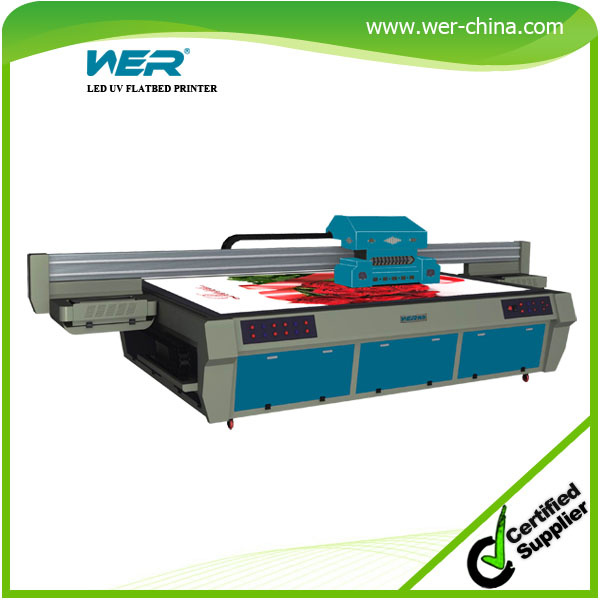

Type: | UV Flatbed Printer |
Ink: | UV Curing Ink |
Application: | Digital Printing on Rigid Materials |
OEM: | UV Printer Can Accpet |
Rip Software: | Ultra |
Certificate: | CE, SGS, BV, ISO9001-2000 |
Structure: | Flat-Bed Cylinder Press |
Color & Page: | Multi-Colour Printing Press |
Printing Interface: | USB2.0 |
Plate: | Drop on Demand |
System Supported: | Windows 2000 / XP / Win7/ Vista, etc. |
Printing Speed: | High Quality (6 Pass) 21 M2/H |
Specification | ||
Model | WER-EF3218UV | |
Print tech. | UV Curing Drop-on-demand Piezoelectric inkjet | |
No. of print head | 2 piece Epson DX5 head (Epson DX7 is optional) | |
Color | CMYK+W & Double CMYK | |
Ink | UV Curing ink | |
Ink reservoir | Refillable on the fly while printing | |
Resolution Options | 360*360 dpi, 360*540 dpi, 360*720 dpi, 720*720 dpi & 720*1440 dpi | |
Printing speed | Standard quality (4 pass) | 34 m2/H |
High quality (6 pass) | 21 m2/H | |
Ultra quality (8 pass) | 17 m2/H | |
Max media size | 1.6 m * 2.8 m for sheet to sheet | |
Media type | Rigid PVC board, ceramic tiles, glass, marble, granite, wood, etc | |
Print head controls | Print head temperature and voltage are software adjustable | |
Print height | 3 mm ~ 8 cm adjustable | |
Media handling option | Sheet to sheet only | |
Drying system | LED UV lamp (Mercury Lamp is optional) | |
Rip software | Ultraprint (Photoprint and Maintop are optional) | |
Color management | ICC based color, adjustment curves, density adjustment | |
File format | Bitmaps,TIFF, JPEG, Postscript 3, EPS, PDF, etc. | |
Electrical requirements | 50Hz/60Hz, 220V(10%)>20A | |
Environmental requirements | Ambient temperature: 20-30 degree , Relative humidity: 40-70% | |
Outdoor durability | 5 years at least | |
Dimesion | 4.8 m * 2.3 m * 1.55 m | |
Weight | 2000 kgs | |
Packing & Delivery | ||
Packing | Wood Crate | |
Packing Size | 4.9 m * 2.4 m * 1.75 m | |
G.W. | 2100 KG | |
MOQ | 1 SET | |
Delivery | In 10 working days | |
Payment Terms | T/T; 40% deposit in advance, the balance against B/L |
