Product Specifications
| Prod Model: |
UPVC-1130 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Overall Width: |
0.9m, 0.93m, 1.13m, 1.35m |
| Effective Width: |
0.84m, 0.81m, 1.05m, 1.26m |
| Thickness: |
1.5mm, 1.8mm, 2.0mm, 2.5mm, 3.0mm |
| Length: |
Customized |
| Sample: |
Available |
| Weight: |
2.0mm 3.7kg/Sqm |
| Profile: |
Corrugated or Waved |
Product Description
UV Proof 3-Layer Plastic Building Material for Roof Advantages:
· The 3-layer UPVC Roof Tile is corrosion resistant
· Good load bearing performance
· Volume stable even if the temperature changes
· Good water resistant
· Fire Proof Grade B1, difficult to burn
· UPVC roof tile is light weight, bigger size per piece makes it easier to install!
Specification:
Width: 900mm, 930mm, 1130mm, 1350mm
Effecitive width: 840mm, 810mm, 1050mm (1000mm), 1260mm
Length: Customized
Thickness: 1.5mm, 1.8mm, 2.0mm, 2...5mm, 3.0mm

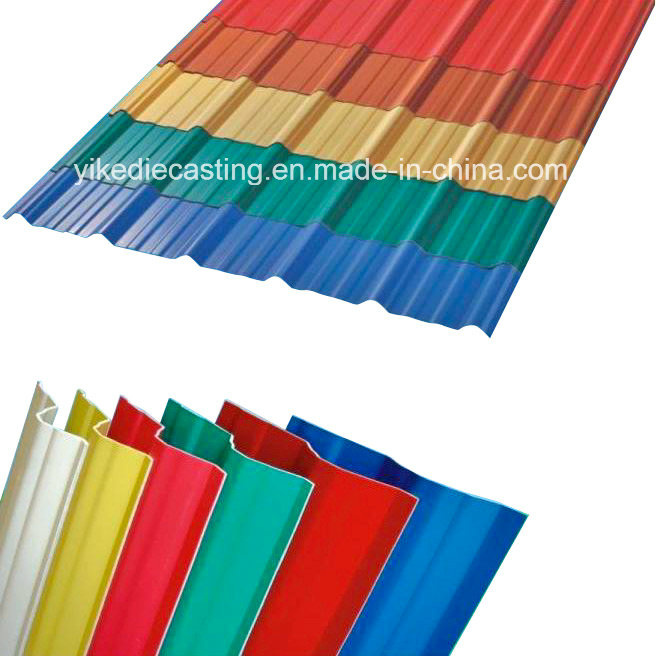

Color: White, blue, green, grey, red, cream, terrocotta, black, translucent or customized
Profile: Corrugated or waved

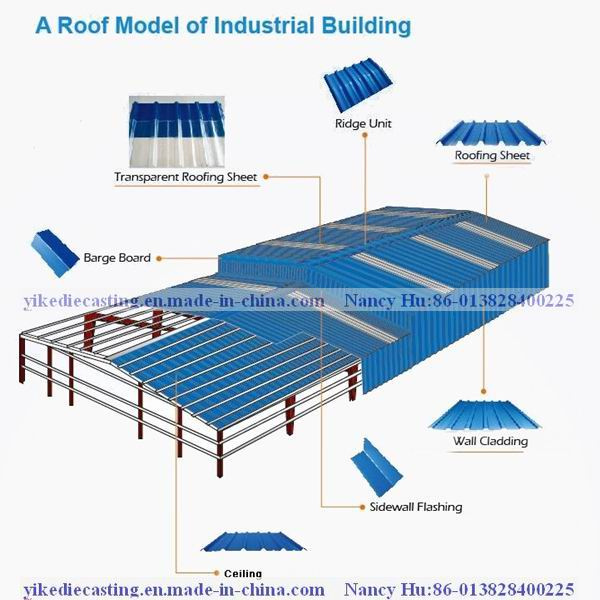

Accessory: Waterproof fitting as below format
3-layer UPVC roof tile Features:
It uses 2 or 3-layer co-extrusion technology, a process completed, each layer materials have their own features, which surface materials for ultra-weather resin, to ensure product durability and resistance to chemical corrosion; Intermediate materials for just a good material toughness special to ensure the strength at the same time, increase the rigidity; The underlying material is white ductile material, in order to increase the plant a sense of space and light intensity. Three kinds of different materials to give the product their own features, and the organically combined to make a new generation of anti-corrosion compound APVC sheet of corrugated sheet to solve the product durability, corrosion resistance, small rigidity, a sense of space and aesthetic issues.
3-layer UPVC Roof Tile Application:

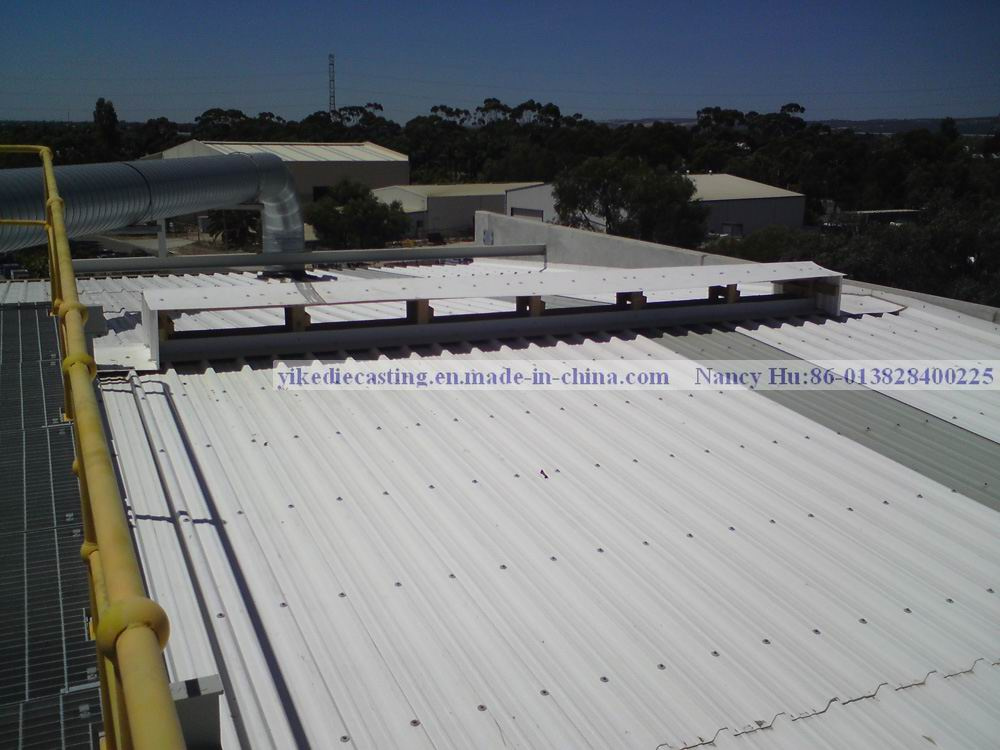

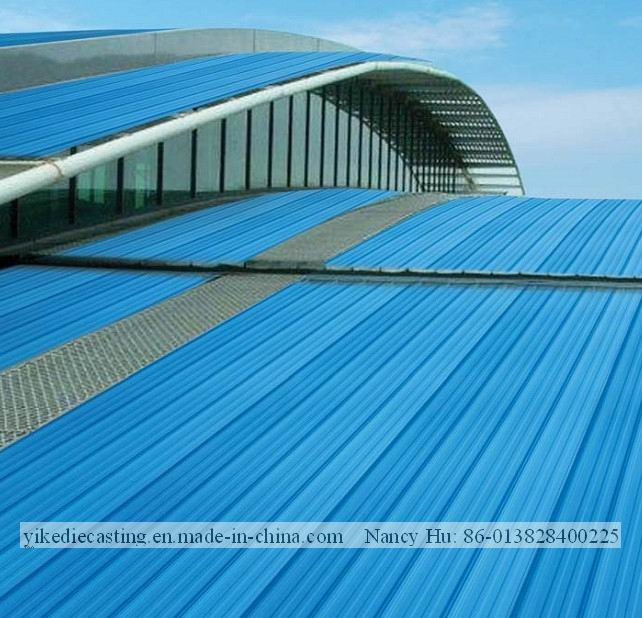

The 3-layer UPVC roof tile is suitable for using in roof decoration of all kinds of industrial and civil buildings, such as the factory roof, warehouse roof and wall cladding, villas, gardens, pavilions, car garage sheds etc.
FAQ
1. What machine do you use to cut the UPVC Roof Tile?
Using portable cutting machine.
2. What machine do you use to install the screws?
Portable electric drill.
3. How to install the UPVC roof tile?
Overlap, on the vertical direction overlap 150-200mm, on the horizontal direction overlap one wave.
4. What is the temperature limited of the environment that your roof tile can be used?
Temperature range: From Minus 18 degree to 65 degree
5. Certificate: ISO 9001: 2008, FIRE PROOF CERTIFICATE, COLORSTABLE CERTIFICATE, CHEMICAL RESISTANCE CERTIFICATE.
Contact: Nancy Hu
Mobile: 0086-013828400225 / 013138253852
Check us out at:
www.facebook.com/wosinroofing
www.twitter.com/wosinroofing
Supply high quality roof material and best solution!
Name of product
Features | Steel roof sheet(G.I.) | Asbestos roof
sheet | Common
PVC roof sheet | Glass fiber
roof sheet | 3-layer heat
insulation UPVC roof tile |
| thickness 0.5MM | thickness 15MM | thickness 2.0MM | thickness 2.0MM | thickness 2.0MM |
Heat
I nsulation
contract | Heat
transmission | about 85% | about 55% | about 52% | about 40% | about 30% |
Insulation
Coefficient | 34W/(m.k) | 0.5W/(m.k) | 0.2W/(m.k) | 0.1W/(w.k) | 0.08W/(m.k) |
| Impact,Tenacity and Strength Resistance | Impact
resistance | Impact
resistance | Impact and tenacity
resistance | fragile and bad impact resistance | Impact and
tenacity resistance |
| Corrosion proof(acid-proof,alkali-proof) | non-corrosion
proof | non-corrosion
proof | corrosion
proof | corrosion
proof | corrosion
proof |
| Heat resistance | big change while
expand when hot and shrink when cold | crack when
suddenly wet or dry | Good stability | Good stability | Good stability |
| Sound insulation | non-sound
insulation | sound
insulation | sound
insulation | sound
insulation | more than 30DB lower than G.I. sheet |
| Weatherability | Great influenced
by climate | Great influenced
by climate | good
weatherability | weatherability | good
weatherability |
| Enviroment protection | according with
usage standard | include asbestos
and bad for health | according with
usage standard | cause skin
allergy | according with
usage standard |
| Coloration | fast | will fade | will fade, white or cream is better | will fade | will fade, white or cream is better |
| life span | 2-3 years in corrosive areas, 8-10 years if good maintainance | 8-10 years | 10 years | 8-10 years | 15 years
|
Foshan Nanhai Yike Electro Mechanical Die Casting Factory(Wosin Trading Co., Ltd. ) is a lead manufacturer and exporter of various die castings and roofing sheets, which is located in FOSHAN, just about 10 kilometers to Guangzhou and about 150 kilometers to Shenzhen. Convenient location, consummate facilities and aborative service will return you for satisfactory goods and considerable benefits.
The manufacture of products from brass, aluminum alloy, and zinc materials (Radio communication parts, Auto parts, Architectural hardware, household appliance parts, Plumbing fittings, Electrical components, Power components, Decorative metal fittings, etc. )
We have a full lineup of die cast machines from 168ton to 1, 000ton.
We also have many materials, principally aluminum, along with brass and zinc.
In addition, in recent years we have achieved the results to provide a material that meets the environmental regulations.
We have introduced CNC 3D measuring machines and are fully equipped for the inspection of large-sized parts, which requires great precision.
Manufacturing the always stable high quality product is possible in our company which is performing from a plan to die making, casting, processing, and a surface treatment.
Meanwhile, Wosin Trading Co., Ltd. is oversea department of Foshan Nanhai Yike Electro Mechanical Die Casting Factory, which is also doing the export of roofing materials from 3-layer UPVC roofing sheet, Synthetic resin roofing sheets, APVC anti-corrosion roof sheet, PVC corrugated sheets, and some other PPGI roofing sheets etc to all over the world.
We have earned great reputation from our oversea buyers and have their trust to the best level. We believe your success is our business! ! We look forward an opportunity to serve your companies needs.
