Product Specifications
| Prod Model: |
JH-UV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Rotary Type Drier |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Heating Mode: |
Dielectric |
| Movement Way: |
Fixed |
Product Description
Specifications

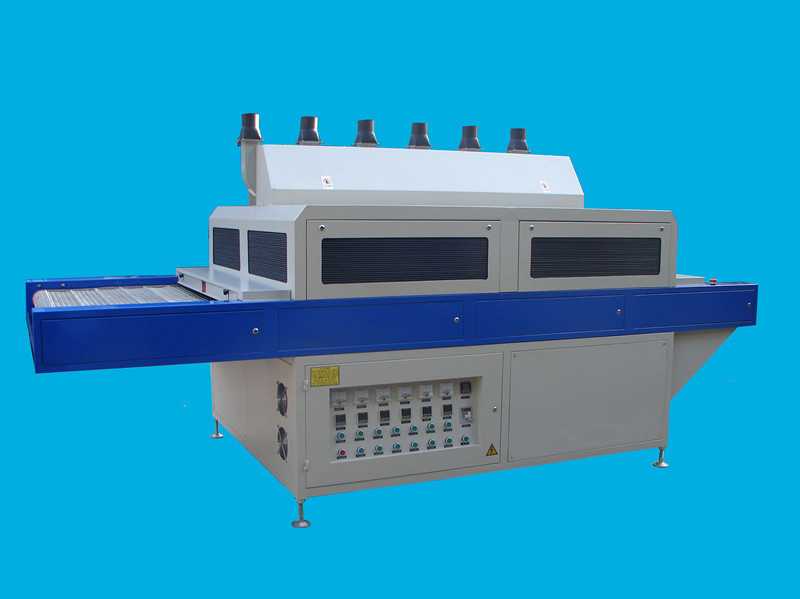

Juehui uv curing system is used to cure electronic components, liquid crystal film, terminal gumming, cell phone parts sticking and LC
Uv curing system
Application:
The UV curing machine with convey, is used in cell phone crust, compact disc, thin film switch, electronic and plastic crust UV surface to painting, kinds of UV paint, IMD injection products curing.
Technical parameter:
1. Outside dimension: 1020*660*557mm
2. The length of inlet: 250mm
3. The length of output: 270mm
4. The height of inlet: 50mm
5. The width of belt: 300mm
6. The material of belt: Teflon (imported)
7. Light tube power: 2.0KW/pc (the height of light shine can be adjusted)
8. The width of light shine: 300mm the strength of shine: 300mm
9. The strength of shine: 100W/cm
10. The distance of shine: 120-190mm (adjusting)
11. Type of cooling: Exhausting by air cooling
12. The value of wave crest: 365nm
13. Settling time: About 3minutes
14. Life 1, 000h (making sure 800h)
15. Decorative style: Injection
16. Convey motor: 15W
17: Exhausting fan: 20W-1 set, 40W-1 set
18. Convey speed: 0-12m/min
19. Power supply: Single phase 220v
Shanghai Juehui Electricity Source Co., Ltd was builded in Shanghai, due to production needs further expand and moved to Nanjing in the end of 2012 re-name as Nanjing Juehui Light Source Co., Ltd. Juehui is a professional manufacture of special light source in development, design, production, marketing and service, mainly engaged in IR radiation source, Vacuum equipment IR heating module and UV radiation source etc.
Quality is our first goal. After years of development our products was widely accepted by the customer in domestic and aboard. The products have been exported to UK, America, Germany, Singapore, Brazil, Korea and so on and got a good reputation in the international market.
Perfect design can be provided as your request and welcome the customized order. Our company adhere to the spirit of "Customer First, The Supremacy of Integrity". Having built the long-term relationship with many companies.
Providing "Quality Products, Excellent Service, Competitive Price and Prompt Delivery", we are now looking forward to even greater cooperation with customers based on mutual benefits.
