Product Specifications
| Prod Model: |
LC-TM-200UVF) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Drying Product Width: |
200mm |
| Max Drying Product Length: |
800mm |
| Conveyor Speed: |
0-12m/Min |
| Power Of UV Lamp: |
2kw/PCS |
| Power Supply: |
220V/110V |
| Usage: |
Drying Wood, Plastic, Leather, Glass etc |
| Free Fitting: |
1 PCS UV Lamp |
| Max Product Width: |
200mm |
| Max Product Length: |
800mm |
| UV Process Shine Area: |
200*800mm |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Combined |
| Heating Mode: |
Transmission |
| Structure: |
UV Lamp Dryer |
Product Description

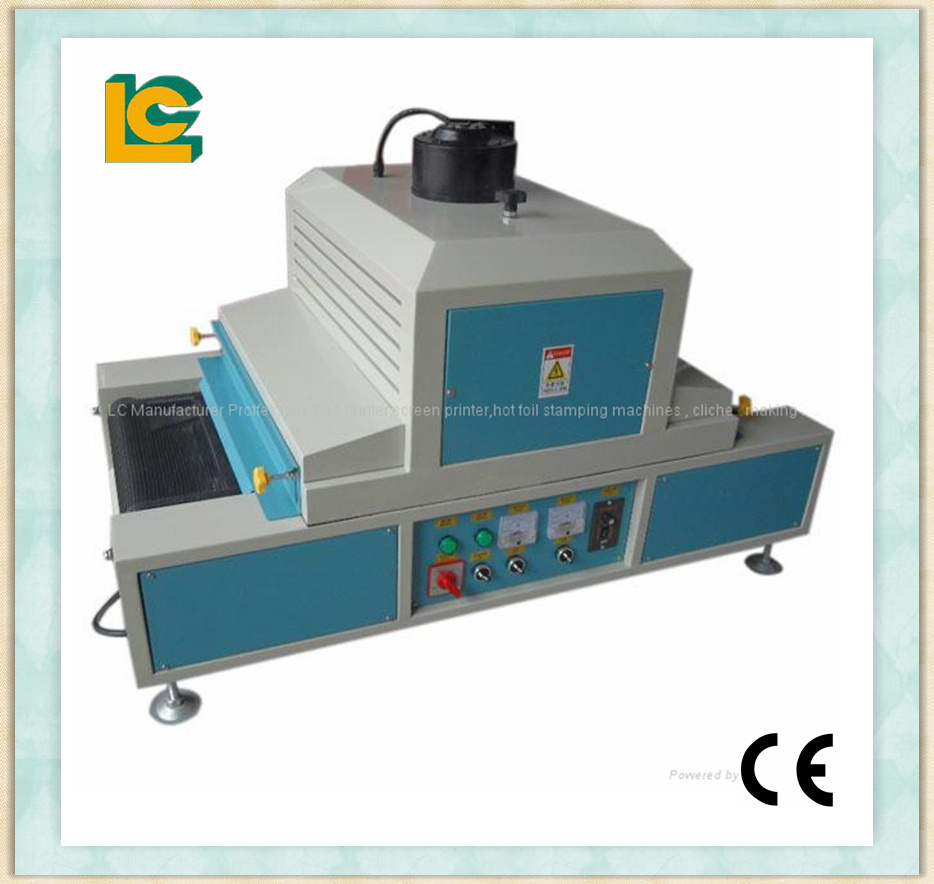

Our last new Desktop style UV Curing Model is TM-200UVF. It is small Volume and easy carrying. Widely use for of field of drying printing UV ink, UV paper printing, UV glue, UV tunnel drying, UV PRINTEER, UV Packing, UV testing. Favorable price and high quality.
1. Manipulation of the equipment is simple.
2. The product is developed as low output/low price.
3. Can select from separation type and conveyor type.
4. There is little space limitation since the size ia small.
Tech Parameter
1. Model No. TM-200UVF
2. Max product width: 200mm
3. Max product length: 800mm
4. UV Process shine area: 200× 800mm
5. Conveyer speed: 0-12m/min
6. UV Lamp power: 2KW *1 PCS/
7. Conveyer belt size: 800*200 (L*W)
8. UV light power supply: 220V/50 Hz
9. UV Machine Dimension: 810× 430× 850mm(L× W× H)
11. Net Weight: 110kg
|
Model number |
TM-500UVF |
TM-600UVF |
TM-700UVF |
TM-800UVF |
TM-900UVF |
TM-1200UVF |
|
max product width |
500mm |
600mm |
700mm |
800mm |
900mm |
1200mm |
|
max product length |
2000mm |
2000mm |
2000mm |
3000mm |
3000mm |
3000mm |
|
UV Process shine area |
500*2000mm |
600×2000mm |
700×2000mm |
800*3000mm |
900*3000mm |
1200*3000mm |
|
conveyer speed: |
0-10m/min |
0-10m/min |
0-10m/min |
0-10m/min |
0-10m/min |
0-10m/min |
|
UV Lamp power |
3KW ×2PCS/ |
3KW ×2 PCS/ |
3KW ×2 PCS |
5KW*2pcs |
5.6KW*2PCS |
5.6KW*2 PCS |
|
UV Machine Dimension: |
2020×550×1200mm |
2020*650*1200mm |
2020*750*1200mm |
3020*850*1200mm |
3020*950*1200mm |
3020*1250*1200mm
|
Luen Cheong Printing Equipment Group Limited has manufactured LC brand color printing machines for more than 25 years, including various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines and cliche making machine and pre-post printing machine. We have passed ISO-9001-2000 certification in 2001 and are a member of SGIA and all of our industrial printers have EURO'S CE standard.
With great effort and constantly exploration, now we can supply 200 various industrial printers per month. Our printing machines have been exported to more than 65 countries around the world and we also dispatch some printing engineers to give our customers technical support overseas. Our clients are satisfied with our products
We produce 8 series of printing machines with more than 30 types of screen printers, pad printers and hot stamping machines. Our main series are as follows:
(1) Full Automatic UV Screen Printer
(2) Plane/Cylinder Semi-Automatic Silk Screen Printer
(3) Manual AD Silk Screen Printer
(4) Multi-Colour Sealed Ink Cup Pad Printer
(5) Multi-Colour Open Ink Tray Pad Printer
(6) UV Curing Machine & IR Dryer Oven
(7) Hot Foil Stamping Machine
(8) Heat Transfer Printing Press
(9) Machine Equipment Pre-Post Printer
Our printing machines are widely used in the industry of plastic and hardware cosmetics case packaging, and electronic gift or toys, electronic industry, household appliance, bottle cap, stationery pen, glass, PCB board, advertising, textiles, lighting etc.
We have a professional training after sales service department, which is free to resolve your problem on installation and adjustment of the machine.
We are located in China industrial zone center, Dongguan City, only two hour's car ride from Guangzhou BAIYUNPORT. If you are interested in our products, please feel free to contact us at any time. Welcome to make a field inspection of our factory.
