UV-Vis Dual Split-Beam Spectrophotometer UV -2600

Product Specifications

Prod Model:	UV-2600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Spectrophotometer

Product Description

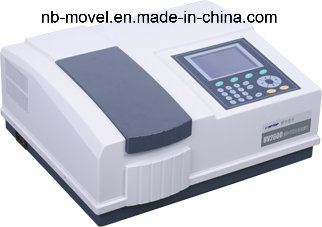

UV-2600 UV-VIS Double Beam Spectrophotometer
   UV2600 is dual split-beam UV-VIS spectrophotometer with a big screen and scanning function. New optical system and circuit system make the instrument have high-resolution, low stray light, lasting stability, high-SNR. This instrument can meet the multi-level analysis application requirements of users. The computer application system of UV-VIS Spectrophotometer can achieve more powerful function for your instrument
Function:
l  Photometric measurement
l  Spectrum scan
l  Quantitative determination
l  Multi-wavelength test
l  Dynamics measurement (time scanning)
DNA/Protein concentration measurement
Feature:
l  Long lasting Stability
l  Ultra-low stray light
l  User friendly interface
l  Can be easily replaced light source
l  Easily upgraded

	UV2600/UV2600PC	UV2600S/UV2600SPC
Optical System	Proportion monitor double beam	Proportion monitor double beam
Spectral Bandwidth	1.8nm	0.5,1,1.8,4nm
Wavelength Range	190~1100nm	190~1100nm
Wavelength Accuracy	±0.3nm	±0.3nm
Wavelength Repeatability	0.2nm	0.2nm
Photometric Range	T:0~200.00%T  A:-0.301~4.0000Abs  C:0~9999	T:0~200.00%T  A:-0.301~4.0000Abs  C:0~9999
Photometric Accuracy	±0.3%T	±0.3%T
Photometric Repeatability	0.1%T	0.1%T
Stray Light	≤0.05%T(220nm, 340nm)	≤0.05%T(220nm, 340nm)
Baseline linearity	±0.002A	±0.002A
Baseline drift	0.001A/h(500nm)	0.001A/h(500nm)
Noise	100%(T)line noise≤0.1%(T) 0%(T) line noise ≤0.05%(T)	100%(T) line noise ≤0.1%(T) 0%(T) line noise ≤0.05%(T)
Monitor	320×240 large screen LCD(6 inch)	320×240 large screen LCD(6 inch)
Dimensions	540×445×230mm	540×445×230mm
