Product Specifications
| Prod Model: |
UVSS-1F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Monitoring System |
| Application: |
All-Round Monitoring |
| Feature: |
Vandal-proof |
| Sensor: |
CCD |
Product Description
Specifications
1. High image definition and resolution
2. IP68
3. Maintenance free, anti-rolling
4. Easy to install
Security surveillance
1.1 Summary
VS-UVSS-1F adopts embedded installation way. The key elements of the equipment performance are environment adaptation; Image resolution; Image integrity and safety of using
1.2 Applications:
Airports, government buildings, prisons, bank depot, military zones, seaports, police offices, etc, all of which requires highly secured for anti-terrorism purpose.
Customs, border control
Car park entrance checkpoint to important building
Toll station checkpoints
Checkpoints for entering and exiting vehicles attending conferences
2.1 SystemStructure

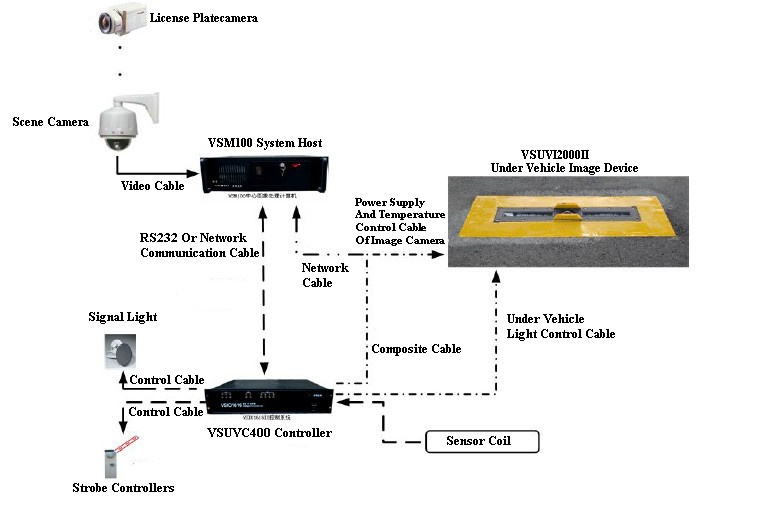

VS-UVSS-1S under vehicle surveillance system is mainly composed of the following components:
VSUVI2000II under vehicle imaging component
VSM100 or VSMULTI system host. VSM100 only supports inspecting single lane; VSMULTI can support inspecting 3 lanes at most
VSIO1616 intelligent IO control unit
VSPV84 power control and vehicle detect unit;
Other auxiliary equipment (optional), such as coil sensors, number plate capture camera, scene camera, barrier, signal light, etc.
VSM100/VSMULTI, VSIO1616, VSPV84 are indoor equipment, and they are installed in a standard 19" cabinet; VSUVI2000II is a part installed outdoors, and it's installed in the center of the lane.
Specifications:
Under vehicle imaging equipment (VSUVI2000II)
Resolution: Line scan 2048 pixels
Max. Line rate: 18kHz in black-and-white, 9 kHz in color
Inspection vehicle speed: < 30km/h
Max. Physical resolution(vehicle speed=30km/h): < 0.5mm/pixel
Visual angle: > 170°
Surface mount: About 110(cm)× 30(cm)
Height of inspecting under vehicle: 60~2000mm
Width of inspecting under vehicle: ≤ 4000mm
Data interface: 100/1000M Ethernet
Transmission distance of under vehicle image data: ≤ 70m
Illumination: 2 sets of high energy LED; 36 W; Life: 50000h
Environmental protection: IP68
Controller (VSIO1616 & VSPV84)
Input: ≤ 16 channels, photoelectric isolating,
Output ≤ 16 channels, DC12V or switch signal
Communication port: RS232 or RS422
Intelligent serial port (optional): RS422
Vehicle sensors: 4
System host(VSM100/VSMULTI)
Inspection lane: VSM100=1; VSMULTI≤ 3
Scene video input: VSM100≤ 4 channels; VSMULTI≤ 8 channels
Display resolution of scene video: 4CIF
Recording resolution of scene video: CIF or DCIF
Compression algorithm of scene video: H264
VS-UVSS-1S under vehicle surveillance system Design guide
Time of UV image display after scan: < 1s
Time of UV image saving or loading: < 1s;
Storage format of UV image: VSBMP (compatible with standard BMP
Image format)
Operational system: Windows XP, Windows Vista
Display resolution: Adapt to varies of resolutions automatically
Disk capacity: 500G
Power supply
Power supply: AC220V/50-60Hz/800W
Environment adaptability
Under vehicle imaging equipment VSUVI2000II:
Dual sealed design: Waterproof, dust-proof
Operating temperature: -40° C to +70° C
Relative humidity: < 90%RH
