UVIS Under Vehicle Inspection System for access control: AT3300
Vehicle security control the entrance
Features of under vehicle inspection system:
Auto digitaline scan, high-resolution undercarriage imaging.
High automation, easy to be used.
Applicable to variety of vehicles, wide vision.
Test wilbe completed during the vehicle maneuvers without stopping, adapted to different speed.
Undercarriage image can be stored, retrieved, searched or compared with other images.
A variety of image processing methods: Enlarge, stretching and cutting.
Multi entrance management model, management, and statistics of entering and exiting vehicles.
Flexible detection process can be made on site to satisfy the needs of various work conditions.
Option of automatic number plate recognition system available, associative storage of various vehicle information and undercarriage images.
Image monitoring, video recording for different scenario.
Advantage of UVIS under vehicle scanner:
No need to park vehicle, can bear speed below 30km/h
Whole image display ion monitor
Operator can zoom and save image
Main TechnicaIndexes of under vehicle system:
Embedded Under Vehicle Imaging Equipment
1. Camera: Sensor: Line scans CCD, Resolution: 2048, Power Supply: 24VDC, 5A
2. Illumination: LED, Power Supply: 24VDC, 150W
3. Size: 1200mm X 350mm
4. Operating Temperature Range: -40 degree to +70 degree
Intelligent IO Control Unit
1. Input: Scale: 16 channeinput, Isolation: Photoelectric isolation, Isolation voltage: 5000Vr. M. S
2. Output: Scale: 16 channeoutput, Isolation: Relay isolation, Output Model: Make-and-break or 24VDC can be set
3. Communication Port: RS385,
4. Operating Temperature Range: -10 degree to +55 degree
Controller
1. Input: 2 channeinduction coi(can optionaextend to 3 channel)
2. Output: 1 channeswitch type 12VDC
3. Communication Port: RS422, RS232, Ethernet (Optional)
4. Operating Temperature Range: -10 degree to +55 degree
System Host
1. CPU: InteCenturion Duo or higher, Memory: 2G, Hard Disk: 500G
2. Display: 22" LCD, can choose a vice display to show the image independently (optional)
3. Scene Video Record: 4 channel, Compression algorithm of scene video: H264

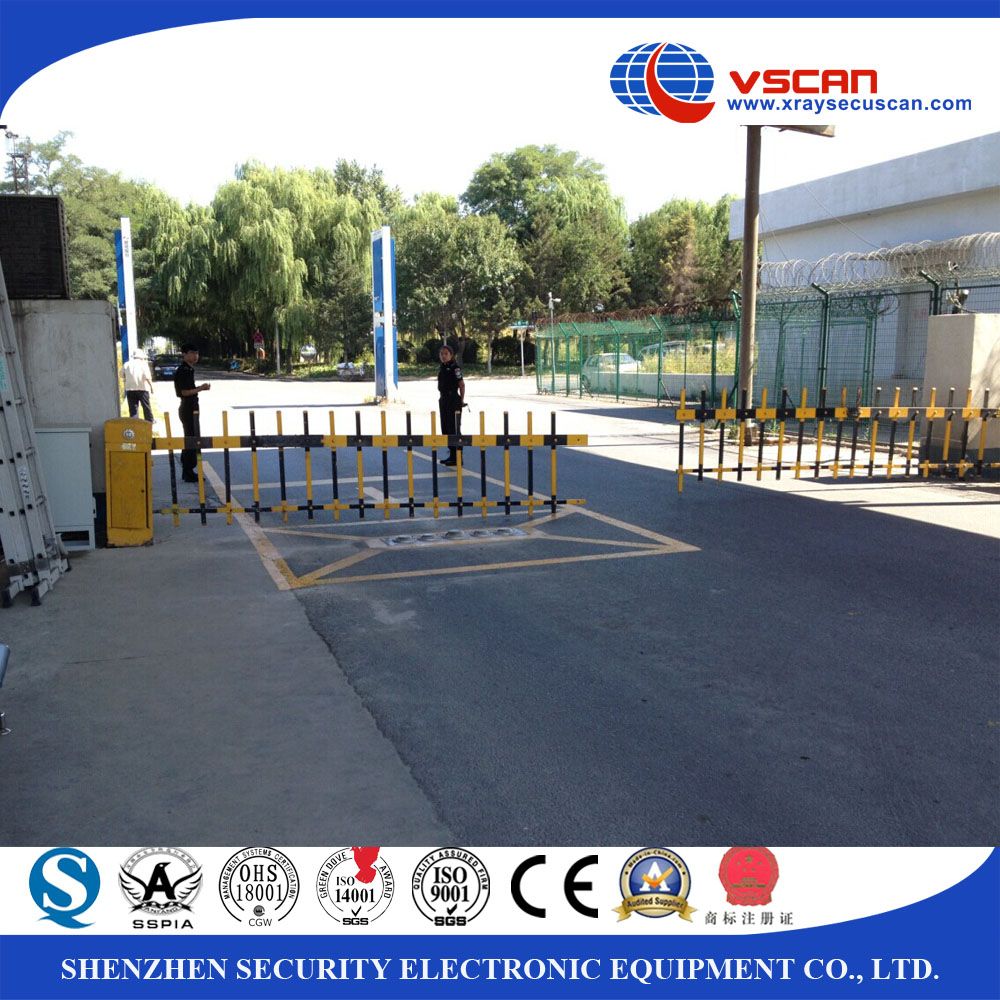

Please refer to the design and site pictures:
Welcome join us, widely range of security equipment for your market.
|
Description |
Model NO. |
Advantages |
|
Under vehicle inspection system |
AT3000 |
Mobile for rental |
|
Under vehicle inspection system |
AT3300 |
Fixed with super water-proof IP68 |
