Specifications
1.Air pressure:0.4~0.6MPa
2.Air consumption:80L/min
3.Cutting length:300~1800mm
Introduction

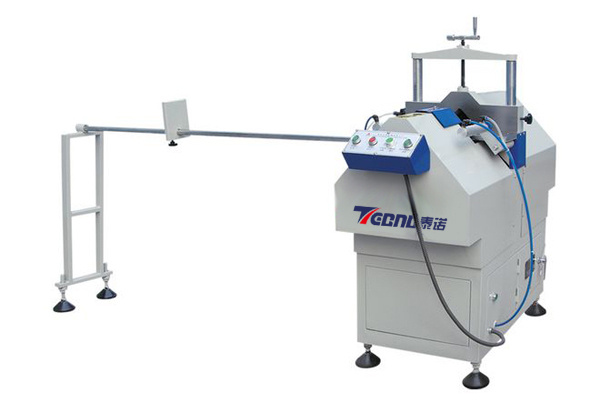

The machine applies to cutting 90° "v" groove for aluminum and PVC profiles, it is controlled by pneumatic drive; it has characteristics of easy operation, stability, and high efficiency.
Technical Parameter:
Model |
LJVW-65 |
Input voltage |
380V 50Hz |
Input power |
1.5Kw |
Air pressure |
0.4~0.6MPa |
Air consumption |
80L/min |
Motor rotating speed |
2800r/min |
Cutting length |
300~1800mm |
Cutting width |
≤120mm |
Cutting height |
≤65mm |
Overall dimension |
1480×560×1350mm |
