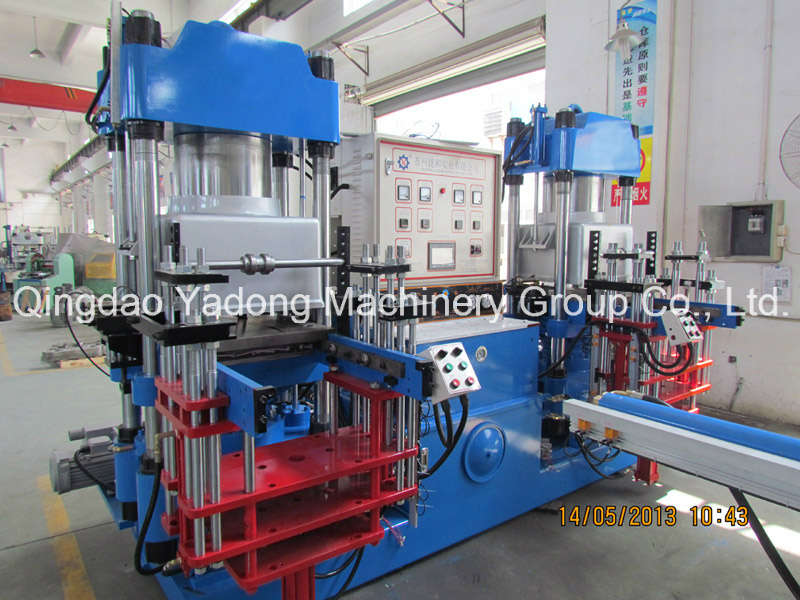

Vacuum Compression Molding Machine
Product Specifications
| Prod Model: |
001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Rubber Calender |
| Weight: |
<50 tons |
| Power: |
10~100KW |
| Voltage: |
415V |
| Using Life: |
≥15 Years |
| Warranty: |
1 Year |
| Certification: |
CE, ISO |
Product Description
Characteristics of the machine:1. Double powers, double oil pumps, double motors and double oil coolers are applied for ther two axies to work independentlyl.
2. The oil system is unique in design, with good stability, faster lift-up and lift-down speed compared with other brands during unloading /loading mold.
3. High vacuum and the average pumping method are applied for the manufacture of stable products and improving the quality and productivity.
4. The pedestal vacuum oxygen tank provides large oxygen storage space.
5. The new mold raising mechanism design has the advantages of long working life, quiet mold-unloading/loading, fastness and stability.
6. This is suitable for the highly precise products such as Melamine, rollers, shoes, medical drug pulgs, automobile parts, shake-proof products, gaskets, conductive products and electronic equipments. etc.
Model Data:| MODEL | YA-HV200T | YA-HV250T | YA-HV350T | YA-HV500T |
| TONNAGE | 200T | 250T | 350T | 500T |
| MAX. SYSTEM PRESSURE | 21MPA | 21MPA | 21MPA | 21MPA |
| CLAMPING STROKE | 300MM | 300MM | 300MM | 300MM |
| RAPID CLAMPING SPEED | ≥ 60MM/S | ≥ 60MM/S | ≥ 60MM/S | ≥ 50MM/S |
| HEATING PLATE SIZE | 505X510MM | 570X610MM | 700x700MM | 800X800 |
| DAYLIGHT | 300MM | 300MM | 300MM | 350MM |
| MAX. TEMPERATURE | 250° C | 250° C | 250° C | 250° C |
| VACUUM COVER TRAVEL | 150MM | 150MM | 150MM | 150MM |
| MAX. EJECTOR FORCE | 60KN | 60KN | 100KN | 100KN |
| OPTIONAL | 2RT/3RT/4RT | 2RT/3RT/4RT | 2RT/3RT/4RT | 2RT/3RT/4RT |
| EJECTOR STROKE | 250MM | 250MM | 250MM | 250MM |
| MOTOR POWER | 11.0KW | 11.0KW | 13.0KW | 13.0KW |
| HEATING POWER | 15.3KW | 18.6KW | 20.6KW | 27.8KW |
| MACHINE SIZE | 2200X3500X2800MM | 2550X3800X3000MM | 2850X4000X3200MM | 3100X4200X3400 |
| OIL TANK CAPACITY | 500L | 520L | 670L | 800L |
Machine Overview:
Qingdao Yadong Machinery Group Co., Ltd. is Qingdao Third Rubber Machinery Factory restructuring and the establishment of a private enterprise, was founded in October 1976, with about 40 years history of producing rubber machinery. The company has more than 530 employees, covers an area of 800, 000 square meters, fixed assets 62, 800, 000 yuan, mainly the production of flat vulcanizing machine, mixer, mixing mill, rubber mixing machine, rubber cutting machine, blown film machine, extruder, tires and other rubber products, machine equipment, light truck tires and rubber products. Products obtained in 1988, the production license issued by Ministry of Chemical Industry.
In 1997, we passed the ISO9002 international quality standard certification, the right of self-import, the state two units of measurement, the leading products have won the municipal, provincial Ministry of quality products, the company has was rated as high-tech enterprise in Qingdao City, province of the contract and trustworthy enterprise. In 2003, output value of 183.65 million yuan, sales income of 1, 161, 260, 000 yuan, the profit 3.72 million yuan, tax 5.13 million yuan.
Chairman Mr. Li Tingxi carry the majority of staff sincerely welcome customers to the company to discuss the guide, I would like first-class technology, first-class service, top quality, for your service!
