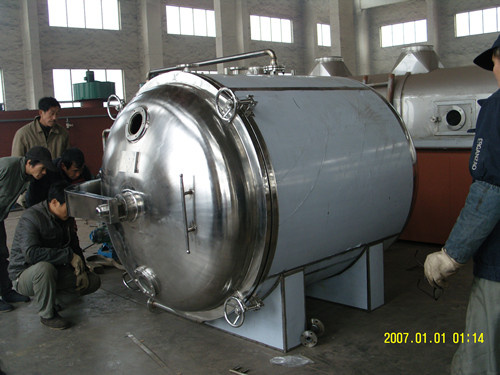

Vacuum Drying Machine

Product Specifications

Prod Model:	YZG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Heating Mode:	Transmission
Operational Method:	Intermittent
Operation Pressure:	Vacuum Dryer
Structure:	Vacuum

Product Description

His drying machine is a new drier that integrates mixing and drying in the one body and equips with condensor and accumn pump. Therefore the vacuum drier is formed (If the solvent does not recover, the condensor may be not used). The drier is advanced in design, simple in inner structure, easy for cleaning, to discharge all raw material, convenient in operation, lowing the strength of labor and improving work environment.
Meanwhile raw material is rotating accompanying with the rotating of container, the wall of container can not accumulate raw make raw material dry evenly and have good quality. It can widely apply to dry raw materials of pharmaceutical industry, chemical industry, foodstuff industry, dyestuff industry and so on. The equipment is in conformity with the requirements of "GMP".

Application
The drier is suitable for drying and mixing powder or granule raw material of pharmaceutical industry, foodstuff industry and chemical industry and so on. Especially it is suitable for the following raw materials that have special requirements:
Thermal sensitive raw material that can not in high temperature;
Raw materials that are easy to be oxidation or to be dangerous;
Raw materials in which the solvent needs to recover and there is toxic gases;
Raw material that have the requirement of containing rather low content of residue volatized materials;
Raw materials that need to mix evenly and fully.

Principle of work
Model SZG double cone rotating vacuum drier has double cone rotating tank. Under the state of vacuum inside the tank, pass steam or hot water into to jacker for heating. The energy can contact with the damp raw material through the inner wall. The vaporized steam can be pumped out through vacuum exhaust pipe when the damp raw material absorbed heat. Because the inner of tank is in the state of vacuum and the raw material is turned over all the time caused by the rotating of tank, the dry speed of raw material is quickened and drying efficiency is raised too and the purpose of uniform dry can be raised.

Features
When oil is used to heat, use automatic constant temperature control. It can be used for drying biology products and mine. Its temperature of operation can be adjusted from 20~160~C and within +2~C.
Compared with ordinal drier, its heat efficiency will be over 2 times;
The heat is indirect. So the raw material can not be polluted. It is in conformity with the requirement of GMP. It is easy in washing and maintenance.

item		type
name	unit	100	200	350	500	750	1000	1500	2000	3000	4500
total volume	L	100	200	350	500	750	1000	1500	2000	3000	4500
working volume	L	50	100	175	250	375	500	750	1000	1500	2250
heating area	m 2	1.16	1.5	2	2.63	3.5	4.61	5.58	7.5	9.6	13.8
speed	r/min	6								4	6
power	kW	0.75	1.1	1.5	1.5	2	3	3	4	5.5	7.5
height of rotating frame	mm	1810	1910	2090	2195	2500	2665	2915	3055	3330	4210
design pressure inside tank	Mpa	-0.090.096
design pressure inside jacket	Mpa	0.3
