| Supplier: | China Heavy-Duty Car Group Liangshan Sitong Special Purpose Vehicle Co., Ltd. |
|---|---|
| Price: | US $ 7600/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,EXW |
|
|
| Prod Model: | LST9370XXY |
|---|---|
| Markets: | South America,Southeast Asia,Africa,Mid East |
| Color: | Optional |
| More Optional Types: | Yes |
| OEM: | Yes |
| Towing Pin Material: | Carbon Steel |
| Impeller Type: | Front Semi-open Type |
| Hook Type: | Single |
| Universal Joint Type: | Flexible Universal Joint |
| Towing Pin Type: | Mushroom Type |
| Towing Pin Diameter: | 50mm |
| Type: | Semi Trailer |
| Wheel Base: | 1310mm |
| Tread: | 2260mm |
| Independent Suspension Type: | Mechanical Suspension |
| Axle Number: | 3 |
| Tire Number: | 12 |

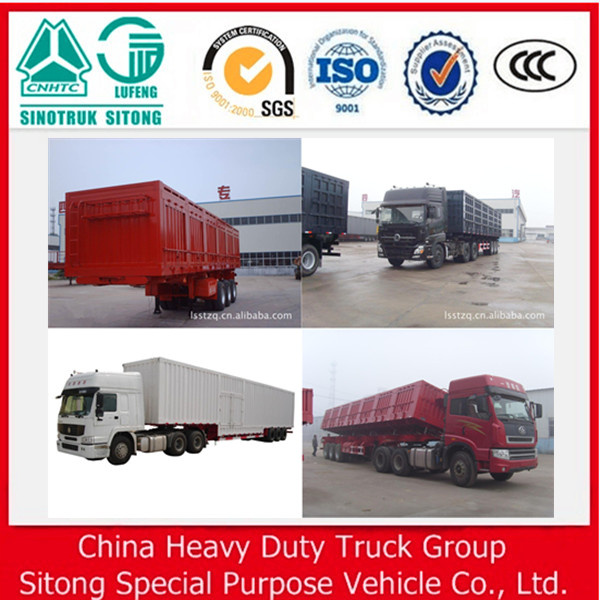

| Type | Box semi trailer Loading for bulk goods | |
| Shipping Terms | Shipping by bulk cargo ship, three pieces put together . | |
| Delivery time | 20 workdays for three unit semi trailer | |
| Weight: | Loading Capacity | 50tons |
| Tare Weight | About 10T | |
| Axle Weight Load | 16T per | |
| Specification: | ||
| Axle number | Two , HUAJING brand | |
| Suspension | America type Mechanical Suspension | |
| Wheel | 12.00R20 triangle brand tire | |
| King Pin | 2.00inch traction pin(Bolt connecting type)/.Jost brand | |
| Dimensions (Inner box) (LxWxH) | 13000 x 2500 x 2500mm | |
| Support legs | CTAC special two double speed legs | |
| Rim | 8.25-20 , | |
| Steel Spring | 90mm*13mm*10pieces | |
| Tire: | ||
| Number of Tire | 8 pieces | |
| Spare Tire Carriers | 2 pieces (not tires) | |
| Frame: (specs. and materials) | ||
| Platform plate | 3mm flat Platform | |
| The material of Main beam | the height of the beam is 500mm,upper plate is 18mm,down plate is 18mm,middle plate is 8 mm. | |
| Side beam | Upper side beam is 16# channel steel, down is 16# channel steel. | |
| Cross Beam | Vertical corrugated board, thickness is 3mm | |
| Side board | Three folio doors and with lock bars at each side(Thickness 2mm) | |
| Back Door | With four pieces lock bars | |
| Upper side of box | Without plate | |
| Brake: | ||
| Emergency Brake Valve | WABCO | |
| Brake Chamber | Four double chamber(CTAC special for export type ) | |
| ABS system | without | |
| Electrical: | ||
| Voltage | 24V | |
| Receptacle | 7 ways(7 wire harness) | |
| Light color: | ||
| Side marker lamp | Orange | |
| Rear lamp | Red | |
| Turn signal lamp | Orange | |
| Miscellaneous: | ||
| Painting | Blue | |
| Marking | According to the requirement of the buyer | |
| Side Guard | 2 piece | |
| Tools box (without Tarpaulin) | One pieces(L x W x H:1500 x500 x 500mm)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |
| ITEM | WARRANTY | ITEM | WARRANTY | ||||||||||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | ||||||||
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | ||||||||||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | ||||||||||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | ||||||||||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | ||||||||
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | ||||||||||
| AIR RESERVOIR | 6 MONTHS | ||||||||||||
| OTHERS | LEAF SPRING BRAKE CHAMBER DIAPHRAGM EMERGENCY RELAY VALVE BRAKE SHOE RELAY VALVE | 3 MONTHS 3 MONTHS 3 MONTHS 3 MONTHS 3 MONTHS | |||||||||||
If you have any interests in our products, feel free to Contact us:
MS Panny QU
Tel: +86 537 2882988
Mob: +86 18753778511
